Greenhouse Cooling System Cooling Pads And Cooling Fans For Greenhouse

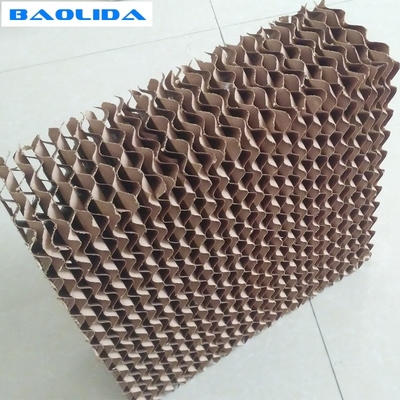

Cooling pad overview:
Cooling Pad, also called wet pad, made of hydrophil kraft paper, is mainly used for the cooling system, humidification system and filter system. The process includes gluing, drying, corrugating, shaping, solidifying, cutting and polishing. Common specifications are 7090, 7060 and 5090 with 45 * 45 angle. Special sizes or dimensions need made or required individually. Water Evaporative Cooling Pad is widely used for greenhouse,industrial workshop...etc, having good effect on ventilation normally equipped with exhaust fan.
| H: high W: width D: depth H: wave height α: wave angle β: wave angle | |||
| Item | 7090 | 7060 | 5090 |
| H (mm) | 1500 / 1800 / 2000 and so on | 1500 / 1800 / 2000 and so on | 1500 / 1800 / 2000 and so on |
| W (mm) | 600 / 300 | 600 / 300 | 300 / 600 and so on |
| D (mm) | 100 / 150 or as requirment | 100 / 150 or as requirment | 50 / 100 / 150 or as requirment |
| h (mm) | 7 | 7 | 5 |
| α (mm) | 45 | 15 | 45 |
| β (mm) | 45 | 4 |
45 |
Cooling fan:
Cooling Fan For Poultry Farming or Greenhouse
Exhaust fan is featured by low noise, electricity saving, large air flow, easy installation, which is an ideal choice for sunstroke prevention and ventilation in occasions such as various warehouses, offices, flower greenhouses & poultry houses. The product is used to transport non-flammable, low-corrosive gases with the temperature no higher than 500℃, relative humidity no greater than 80% and the quantity of dust and solid impurities 150mg/m³.
| Size (mm) | 1380*1380*400 | Transmission Mode | Belt |
| Blade Dia (mm) | 1250 | Rotational Speed (r/min) | 425 |
| CFM (m3/h) | 44500 | Voltage (v) | 380 |
| Noise (db) | ≤65 | Input Power (w) | 1100 |
| Total Pressure (pa) | 60 | Net Weight (kg) | 7 |
Usage:
Evaporative cooling pad is mainly used for cooling system, heating system, dust removal filter system. Fan cooling system is the most common arrangement form of greenhouse, and wet pad is installed at one side of the greenhouse gable, fan will be installed on its relative to the other side of the wet pad. The fan ventilates the wind outside, which makes indoor form a negative pressure, then the outside air of one side wet pad enter into the indoor through wet pad.
Features of cooling pad:
1. Made of corrugated fiber paper with the spatial crossing linking technology
2. High hygroscopicity: to absorb water naturally, with fast speed of pervasion and lasting effectiveness.
3. Specific stereoscopic structure: large evaporation area, and cooling efficiency can be as high as 80%.
4. Instant-drying: when water stops flowing on pad surface, its protection coat will dry very soon. In this case, animalcule can not live on the surface which prevents the growing of algae.
5. No phenol in the raw material, which is irritant to skin: safe, energy saving, environmental protective, economic and durable.
6. No micro hole on the surface: preventing the algae from living in deep part of pad. Algae will fall automatically when the pad becomes dry.
7. Frame: galvanized, aluminum alloy or stainless steel, beautiful and practical, high-strength, easy to remove.
Features of cooling fan:
It is convenient to tear down the back of net. The motor is built inside, which is convenient to install.
Fan frame adopts advanced CNC bending machine, CNC shearing machine, CNC punch processing technology. It has galvanized board and strong causticity resistance.
It has unique and high strength with alloy profile. Comparing with industrial nylon contour, it has the characteristics of high strength, good toughness and long life.
It has automatic belt regulator, manual adjustment is not needed during the belt lifetime.
It adopts new distortion of stamping forming blade, after dynamic balance and static balance test, on reasonable blade angle, ensures the production of a large amount of air flow and also gets a good noise control.
1. When can I get the price?
Usually within 24 hours after we get your inquiry. If you are urgent to get the price, please call me or tell me in the email.
2. Can you accept our own design, logo, and pattern?
We can produce it according to your design.
3. Are you a manufacturer or Trading company?
We are a greenhouse manufacturer in Chengdu China, are greenhouse manufacturing, and We also welcome you to visit our factory.
4. When can I get the goods?
Produce time is within 15days, and shipping is usually 20-35days.
5. What is your best price?
The same style of greenhouse can be used in different thicknesses of steel, and different thicknesses of the film. These will have a direct impact on greenhouse prices. And the larger the area, the lower the unit price will be
