Agricultural Singlespan Tunnel Plastic Film Tropical Greenhouse

Negotiation
MOQ
USD 2-6/sqm
Price
Agricultural Singlespan Tunnel Plastic Film Tropical Greenhouse
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Easily Assembled
Product Name: Agricultural Singlespan Tunnel Plastic Film Tropical Greenhouse
Usage:: Agricultural Protect
Covering: 100/120/150/200micro PE Film
Material: Hot Dipped Galvanized Frame
Length: 10-100m By Client's Request
Width: 6m-10m
Ventilation System: Side Ventilation With Insect Net
Type: Single Span
Function: Structure Is Flexible, Strong Applicability And Wide Applicable Scope
High Light:

plastic grow tunnel

,

polythene grow tunnel

Basic Infomation
Place of Origin: CHINA
Brand Name: BAOLIDA
Certification: ISO9001:2008
Model Number: BAOLIDA01
Payment & Shipping Terms
Packaging Details: Standard greenhosue package
Delivery Time: 7-14 WEEK DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500000 SQUARE METERS ONE MONTH
Product Description

Agricultural Singlespan Tunnel Plastic Film Tropical Greenhouse





Introduction:



Single-span greenhouse is also called single-tunnel greenhouse. There are two types of greenhouse with a single width, depending on the roof structure, namely the type of arch and two-way. It's easy to collect raw materials and build. The structure is stable and strong, and the foil can be easily repaired. It is resistant to strong snow and wind, is comfortable in maintenance and handling. Basically, it seemed to be a kind of factory greenhouse for the production of fruit and vegetables. This type is very popular among self-employed farmers due to the low cost and high productivity of production.
Glass Tunnel Foil of plastics, which brings great social or economic benefits, is a type of simple and practical equipment for cultivation or cultivation, easy to build, convenient to use and low cost, widely used for growing vegetables, fruits, Flowers and growing of aquatic and poultry products and scientific experience worldwide, along with the development of the plastic film industry. It is able to provide the conditions for adequate lighting, humidity and temperature, increasing efficiency and preventing natural disasters. It is also able to accelerate or withdraw the benefit by eliminating the contradictions between the benefit and demand.





Description Data Details
Single-span Film Tunnel Greenhouse Skeleton Material High quality hot galvanizing steel pipes
Covering Material PE/PO Film
Span Width (m) 5-10
Bay Width (m) 1/2
Height (m) 2.8-3.5
Wind Load 0.4 KN/m²
Snow Load 0.5 KN/m²
Dead Load 25 KG/m²
Hanging Load 50 KG/m²
Rainfall 140 mm³/h
Outside Insulation High quality quilt
Support System Side ventilation system (by film rolling up machine) etc.





Merits


Low cost: The cost of hot dip galvanized rust prevention is lower than the cost of other paint coating; and this tunnel greenhouse has a high output with low input.
Simple structure: Galvanized steel framework with plastic film covering and side ventilation.
Easy installation: The prefabricated steel pipes of the mushroom greenhouse can be easily connected with some fastenings.
Long service life: The steel structure of the greenhouse can be used for more than 10 years.
Multi-functions: You can use a small size tunnel greenhouse in your garden as a garden greenhouse, or you can also have a large size one for your farm. The large inner space is convenient for operation and maintenance.




Application
It can be used for the seed-breeding and planting of flowers and fruits, and the breeding of poultry. Besides, it is also apply for vegetables such as mushrooms, potatoes, tomatoes, cucumbers, onions, carrots, zucchinis, eggplants, okras, lettuces and so on.

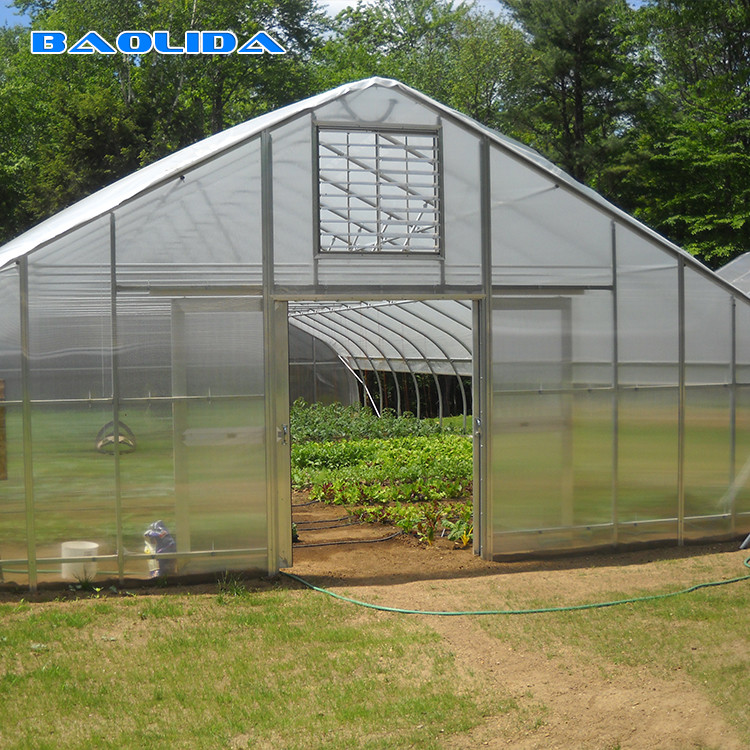

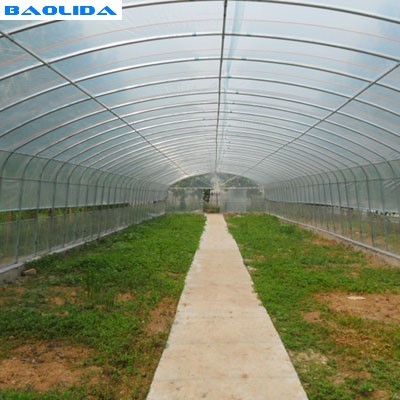

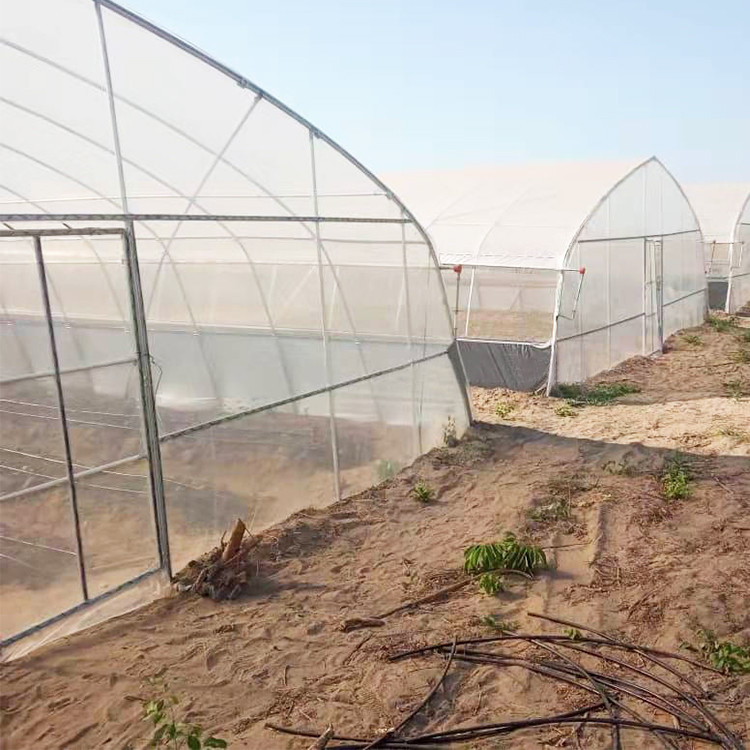

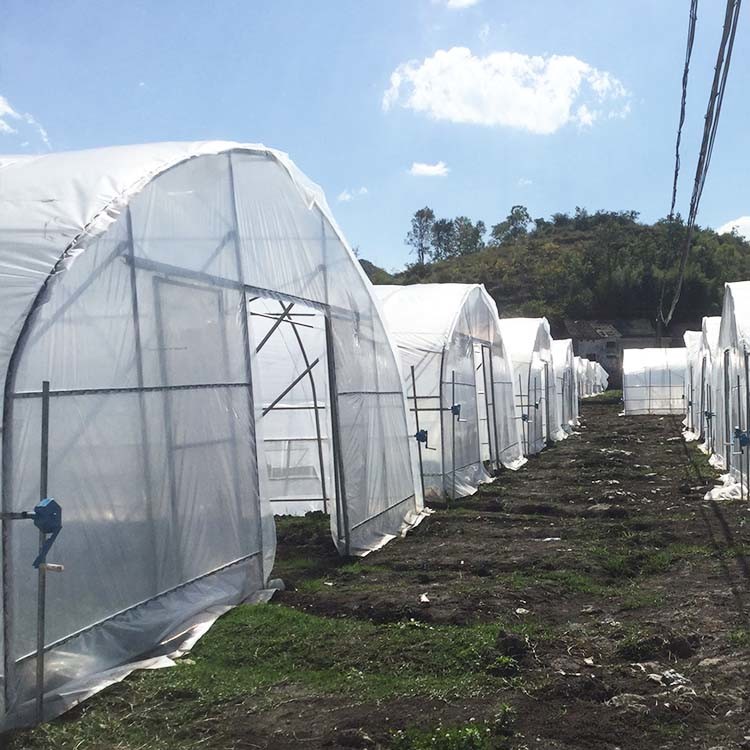

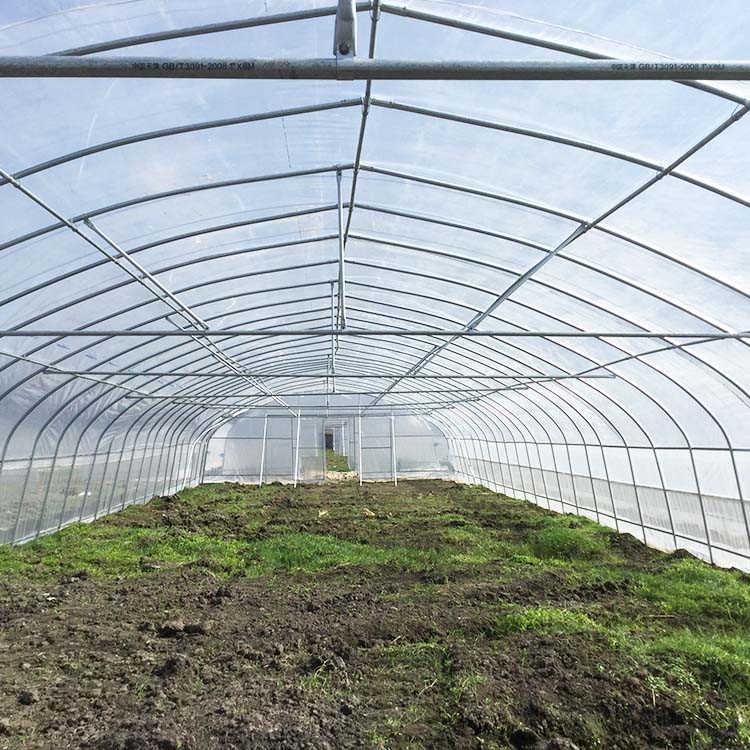

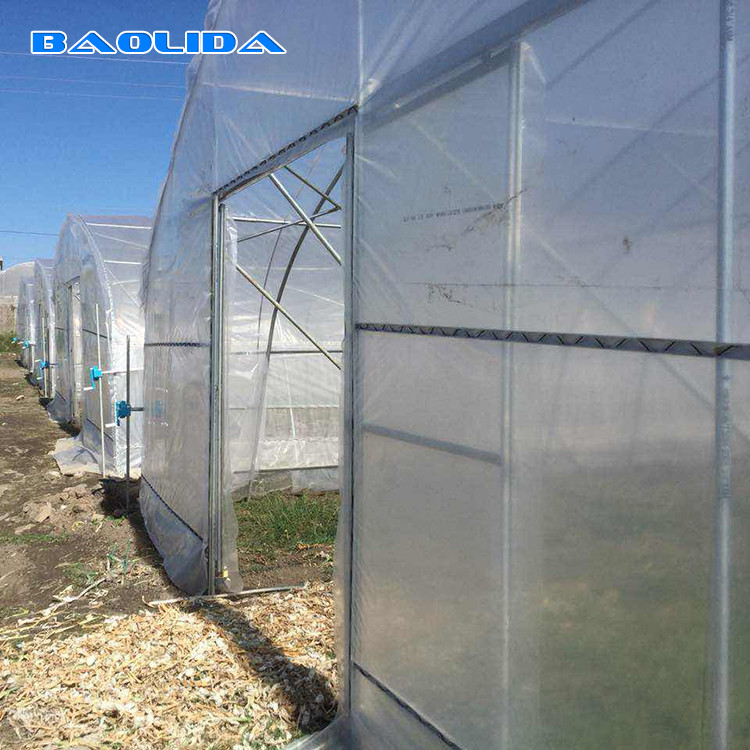

Agricultural Singlespan Tunnel Plastic Film Tropical Greenhouse 0

Agricultural Singlespan Tunnel Plastic Film Tropical Greenhouse 1

Agricultural Singlespan Tunnel Plastic Film Tropical Greenhouse 2Agricultural Singlespan Tunnel Plastic Film Tropical Greenhouse 3

Agricultural Singlespan Tunnel Plastic Film Tropical Greenhouse 4Agricultural Singlespan Tunnel Plastic Film Tropical Greenhouse 5

Agricultural Singlespan Tunnel Plastic Film Tropical Greenhouse 6Agricultural Singlespan Tunnel Plastic Film Tropical Greenhouse 7
