Galvanized Steel Frame Single Span PE Film Greenhouse For Flower Planting

1 set
MOQ
USD 2-6/sqm
Price
Galvanized Steel Frame Single Span PE Film Greenhouse For Flower Planting
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Easily Assembled
Product Name: Galvanized Steel Frame Single Span PE Film Greenhouse For Flower Planting
Width: 6m-12m
Span Length: 20m-100m
Key Word: Single Span PE Film Greenhouse
Pipe Size: Round 32mm,40mm,48mm
Covering: 100/120/150/200micro PE Film
Type: Agricultural Use
Usage: Agricultural Protect
Advantage: Cost-effective,easy Construction
High Light:

Single Span PE Film Greenhouse

,

Galvanized Steel Frame PE Film Greenhouse

,

120 Micron plastic film greenhouse

Basic Infomation
Place of Origin: CHINA
Brand Name: BAOLIDA
Certification: ISO9001:2008
Model Number: BAOLIDA01
Payment & Shipping Terms
Packaging Details: Standard greenhosue package
Delivery Time: 7-14 WEEK DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500000 SQUARE METERS ONE MONTH
Product Description

Galvanized Steel Frame Single Span PE Film Greenhouse For Flower Planting



Tunnel Greenhouse Feature:

A simple and practical protection ground cultivation facility is widely used in countries around the world due to its easy construction, convenient use and low investment. The use of bamboo wood, steel and other materials, and cover plastic film, arched shed, for cultivation of vegetables, can be early or delayed supply, increase production per unit area, is conducive to the prevention of natural disasters, especially in the northern region in early spring and late autumn off-season Supply fresh vegetables.



Tunnel Greenhouse Introduction:

This greenhouse is simply installed, is framed by galvanized tubes. There is no upright column in the greenhouse, so it’s strengthening the lighting effects and good for the mechanical operations, promoting the land-utilizing ability.



Tunnel Greenhouse Structure:



The design data of this type of greenhouse is relatively small. Due to its simple structure, the foundation is generally inserted into the ground or a simple concrete foundation, and the skeleton is generally galvanized round pipe.
There are two vents on both sides of the greenhouse, and the inside is equipped with anti-insect nets to prevent pollution and losses caused by insects carrying viruses. There is a sliding door at the front.


SPEC:

Frame 32X1.5MM hot-dip galvanized steel pipe
cover material 200 micron/150 micron plastic film /100 micron
Side ventilation : with manual roll-up unit on the side
Height: 3.5m
Size can be: 7x20m,7x25m, 8x30m .....your size can be customized
The reinforced structure with lattice arches and squared columns offers extensive guarantees thanks to the resistance against wind, snow, and at the same time allows hanging support to various types of cultivation.



Detail



Product Type Tunnel greenhouse
Width 4m-10m (13.12'-32.8')
Column Space 1m/1.5m/2m(3.28'/4.92'/6.26')
Wall Height 1.5m-2.5m(4.92'-8.2')
Roof Height 2.5m-4m(8.2'-13.12')
Covering Martial 150 or 200 micro plastic film
Natural Ventilation Motor driven or manual rolling vents on two sides
Optional Systems Pat&fan cooling system;heating system;shading system;drip irrigation system;fogging system;lighting system;hydroponic system;plants climbing system;weed mat;plant pot;seed tray etc.

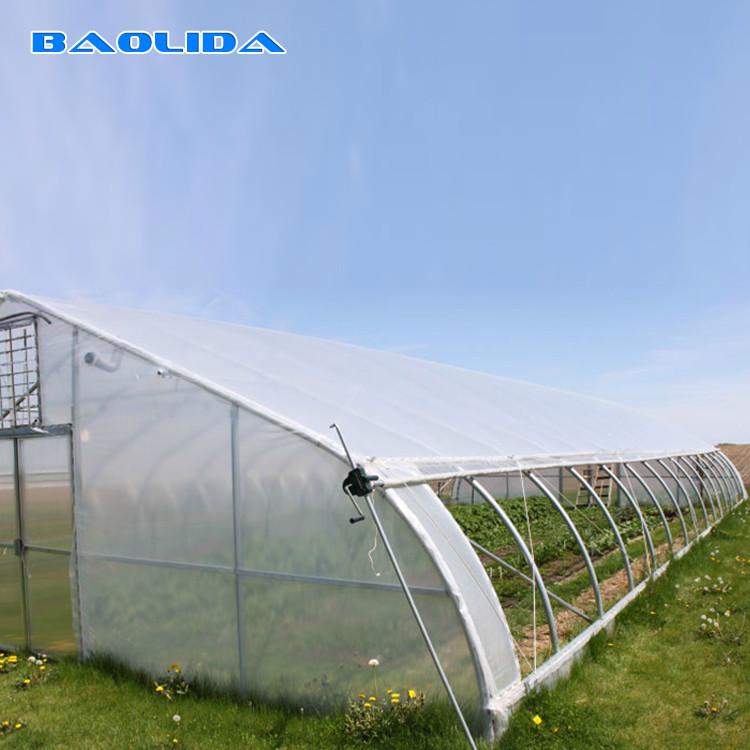

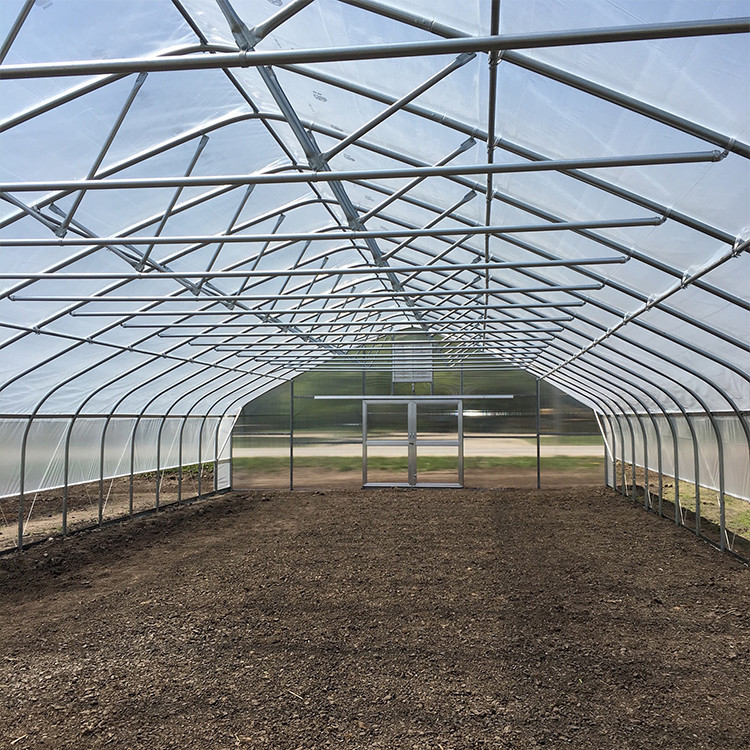

Galvanized Steel Frame Single Span PE Film Greenhouse For Flower Planting 0Galvanized Steel Frame Single Span PE Film Greenhouse For Flower Planting 1

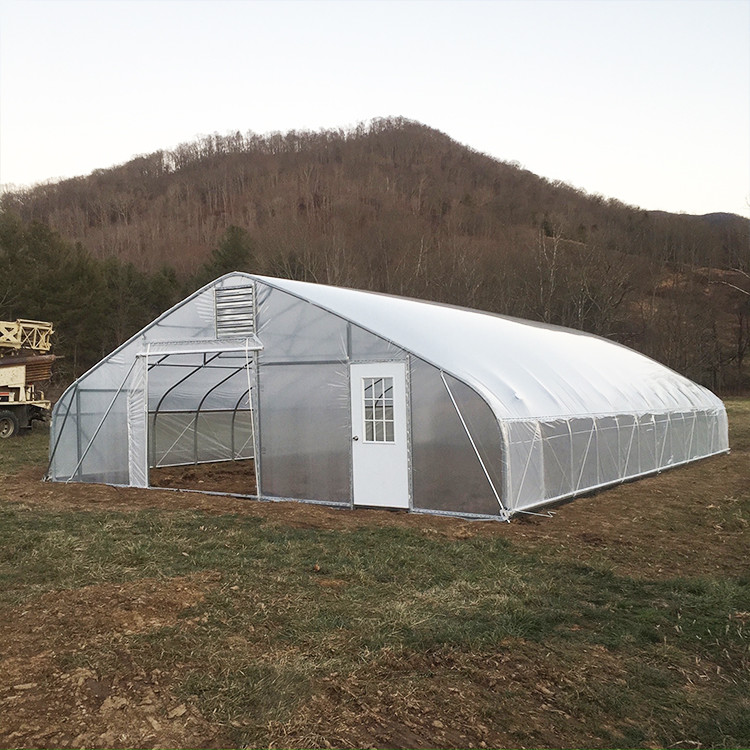

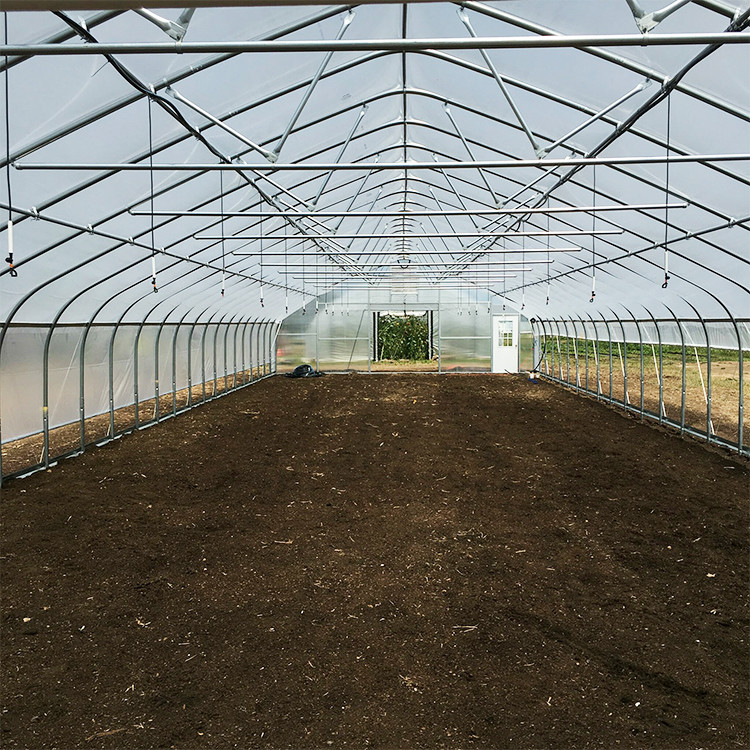

Galvanized Steel Frame Single Span PE Film Greenhouse For Flower Planting 2Galvanized Steel Frame Single Span PE Film Greenhouse For Flower Planting 3

FAQ

Q: Are you a trading company or manufacturer?

A: We are a factory. We have two factories to produce everything related to the greenhouse, so we offer the best price.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: Will you provide the installation instruction?

A: Yes, for the greenhouse we sold, we will provide a detailed installation manual after the order is confirmed.

Q; Can you arrange for the engineer to our place for installing?

A: Yes, we can send our guys to your place for installation, but it’s not for free.
