Plants Air Conditioner Large Glass Greenhouse Customized Outdoor Auto Control

Negotiation
MOQ
USD 35-50/sqm
Price
Plants Air Conditioner Large Glass Greenhouse Customized Outdoor Auto Control
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Stable Structure Easily Assembled
Product Name: Customized Outdoor Auto Controlled Air Conditioner Large Glass Greenhouse Plants
Structure: Hot Galvanized Steel Pipe
Ventilation System: Manual Roof
Covering: 8mm Float Glass
Main Column: 48mm And Other Optional
High Light:

Air Conditioner Large Glass Greenhouse

,

ISO Auto Control Large Glass Greenhouse

,

Manual Roof Venlo Glasshouse

Basic Infomation
Place of Origin: Sichuan,China
Brand Name: Baolida
Certification: ISO9001:2008
Model Number: BLD-VG-202102
Payment & Shipping Terms
Packaging Details: Standard package
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500000 square meters per month
Product Description

Customized outdoor auto controlled air conditioner large glass greenhouse herb plants



CHARACTERISTICS

1. The whole greenhouse can be covered with glass or sunlight board (Polycarbonate sheet) , which has high light transmittance and good heat preservation performance 2.The appearance of the glass solar panel multi span greenhouse is modern and novel 3. The overall framework of the greenhouse is fixed,assembled and connected by hot-dip galvanized pipes, hot-dip galvanized anti-corrosion bolts and self tapping screws, with no welding points, strong and durable,and the whole is simple and beautiful

Covering:

Float Glass as the covering material;Thickness is 8M and 10M etc;Cover the greenhouse with the film of 1 or 2 layers;It has the function of dust-proof and anti-dripping;For reducing water evaporation in soil;UV block treatment;It’s cost-effective.



Product Name Customized outdoor auto controlled air conditioner large glass greenhouse plants
Material Hot Dipped Galvanized Steel
Features High quality, Strong structure
Structure is flexible, strong applicability and wide applicable scope
High quality Covering and Hot-dip Galvanization
Span 10.8m/12m Customized
Length 30m-60m or Customized
Shoulder Height 4m-6m or Customized
Roof Height 4.8m-6.8m or Customized
Wind Load 0.6KN/M2
Snow Load 0.6KN/M2
Max Rain Quantity 140mm/h



Venlo Greenhouse:

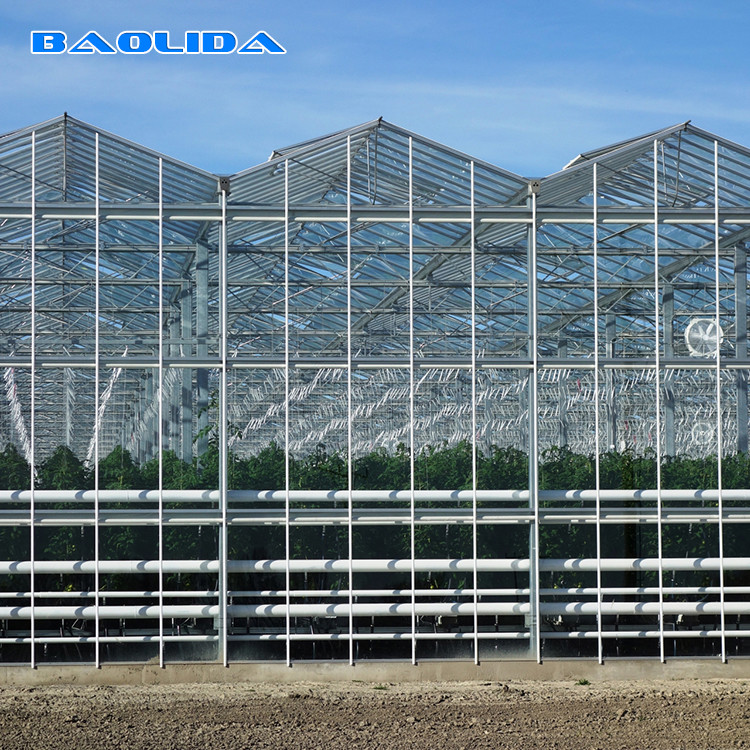

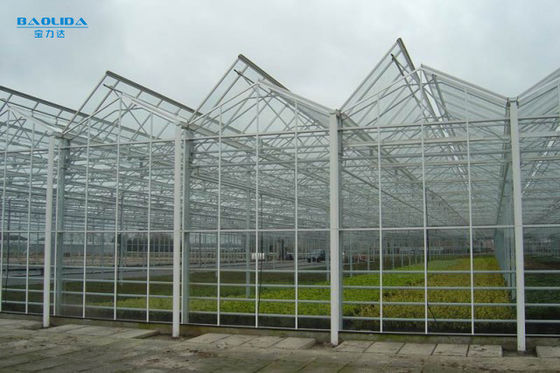

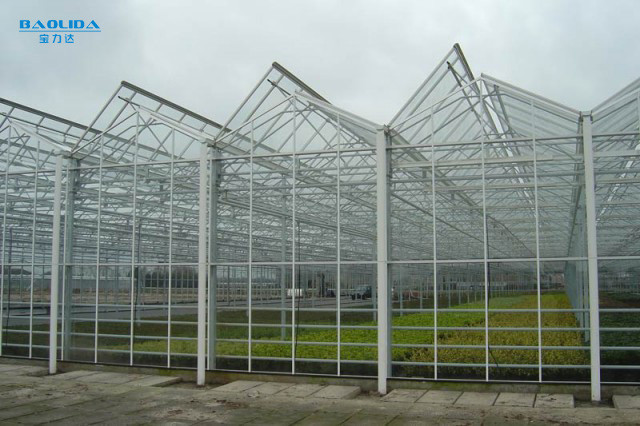

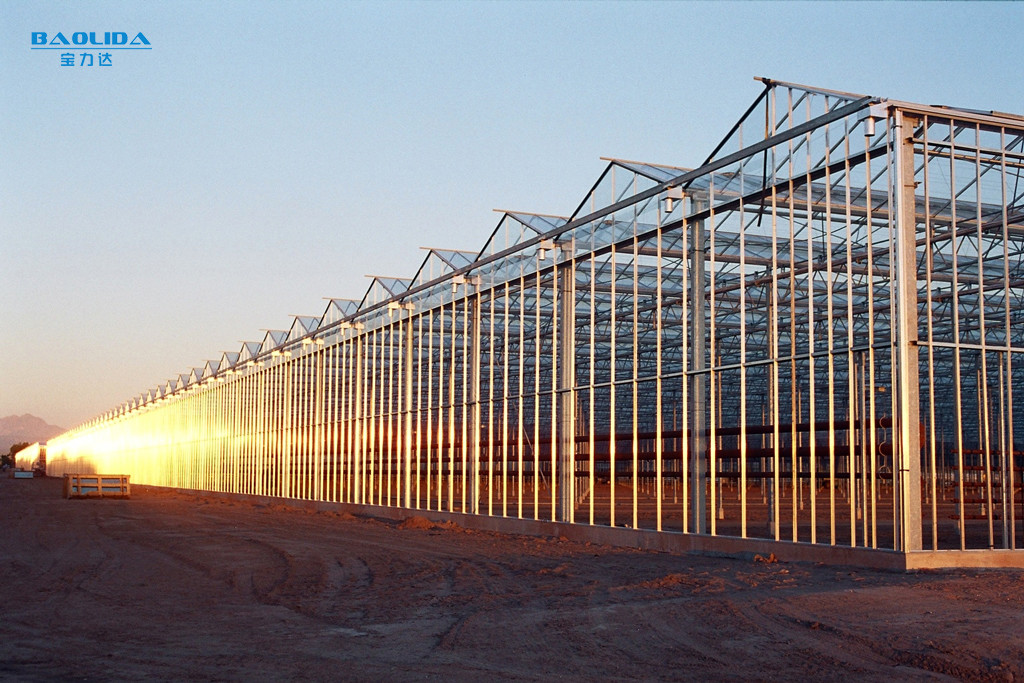

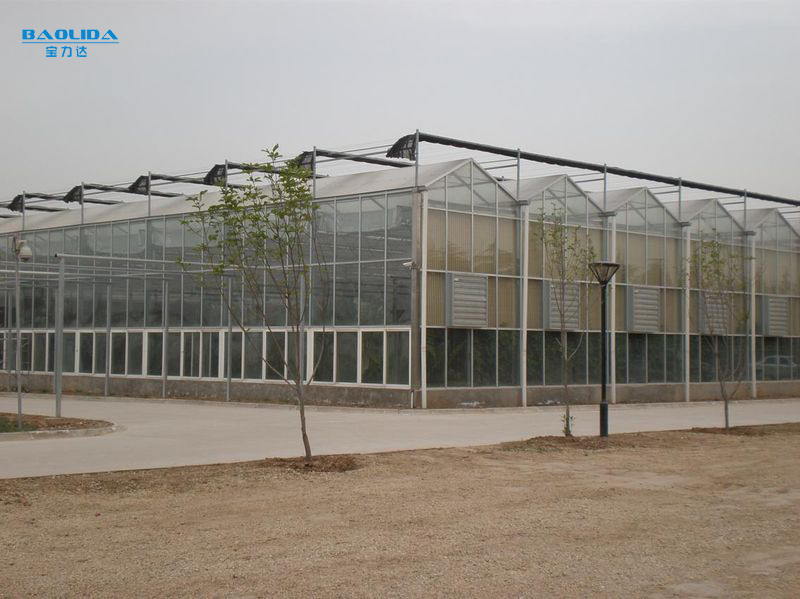

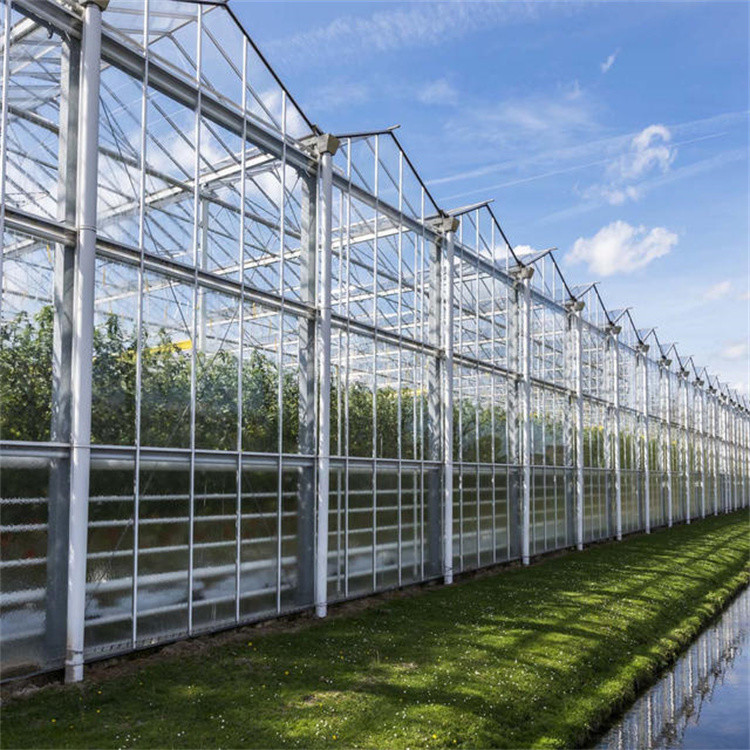

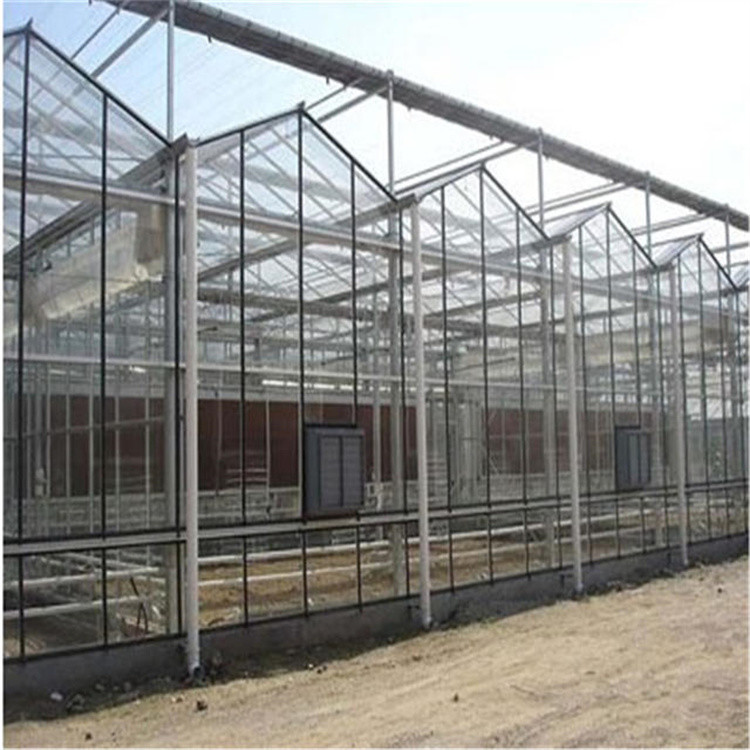

Venlo-style multi-span greenhouse is the most widely used structure in the world. It is a greenhouse covered with hard materials. It has also become the preferred structure for glass greenhouses and PC panel greenhouses in China.



Features:



The main skeleton structure of the Venlo-style multi-span greenhouse: adopts three roof ridges hot-dip galvanized steel structure with good anti-corrosion performance The service life of the main body is more than 20 years, It also has good light transmittance, the transmittance of single-layer glass greenhouse up to 97%, the double glazing is 88%.



Covering:



Covering materials are mainly divided into polycarbonate hollow board (PC sunshine board), double float glass or tempered glass, etc. Greenhouses are generally covered with UV- and condensation-resistant polycarbonate hollow panels (PC sunlight panels) or glass, and the special hot-dip galvanized steel framework has the advantages of good lighting, thermal insulation, economical durability, and strong resistance to impact damage. It can also be covered with different materials according to the differences in climate conditions and specific design requirements of the customer's area.



Main configuration:



The greenhouse can be fully automatic controlled and can be equipped with internal and external shading systems, internal thermal insulation systems, skylight side window systems, wet curtain fan cooling systems, heating systems, spraying and irrigation systems, etc. Appropriate configuration is required.





Application:



It can be used not only as a production greenhouse for vegetables and flowers but also as a nursery greenhouse for vegetables and flowers.


Parameter:

Specifications of Orient Greenhouse


Basic parameters
Wind Load 0.5KN/m²
Snow Load 0.3KN/m²
Greenhouse constant load 15kg/m²
Maximum drainage capacity 140mm/h
Frame Hot dip galvanized steel
Covering Materials PO or PEP film, Glass, Polycarbonate sheet



Optional systems
Ventilation System Shading System
Cooling System Heating System
Irrigation System Seedbed System
Hydroponics System Control System
Lighting system Other customized equipment
We will make design proposal as customers specific requirements.

Plants Air Conditioner Large Glass Greenhouse Customized Outdoor Auto Control 0Plants Air Conditioner Large Glass Greenhouse Customized Outdoor Auto Control 1

Plants Air Conditioner Large Glass Greenhouse Customized Outdoor Auto Control 2



Our services

1. Reliable design: a strong and creative design, research and development team to design the greenhouse according to the local climate and geographical conditions.

2. Greenhouse installation: engineers can be sent to your country for greenhouse installation.

3. Quality assurance: we have strict quality control and mature technology, our products have achieved

National and industry standards.All our exports will be strictly inspected before shipment.

4. One-to-one 24-hour online service: for any questions, please contact us.

5. After-sales service: if there is any quality problem during the warranty period, we will assume the responsibility and provide on-site service as needed.



Plants Air Conditioner Large Glass Greenhouse Customized Outdoor Auto Control 3Plants Air Conditioner Large Glass Greenhouse Customized Outdoor Auto Control 4Plants Air Conditioner Large Glass Greenhouse Customized Outdoor Auto Control 5





Plants Air Conditioner Large Glass Greenhouse Customized Outdoor Auto Control 6
Plants Air Conditioner Large Glass Greenhouse Customized Outdoor Auto Control 7



Plants Air Conditioner Large Glass Greenhouse Customized Outdoor Auto Control 8

1. When can I get the price?
Usually within 24 hours after we get your inquiry. If you are urgent to get the price, please call me or tell me in the email.
2. Can you accept our own design, logo, and pattern?
We can produce it according to your design.
3. Are you a manufacturer or Trading company?
We are a greenhouse manufacturer in Chengdu China, are greenhouse manufacturing, and We also welcome you to visit our factory.
4. When can I get the goods?
Produce time is within 15days, and shipping is usually 20-35days.
5. What is your best price?
The same style of greenhouse can be used in different thicknesses of steel, and different thicknesses of the film. These will have a direct impact on greenhouse prices. And the larger the area, the lower the unit price will be
