Galvanized Steel Tunnel Plastic Film Greenhouseouse with Shading Net

Basic Information
Place of Origin: Chengdu China
Brand Name: BLD
Certification: ISO9001:2008
Model Number: CD1-0
Minimum Order Quantity: 0
Price: USD3-6/sqm
Packaging Details: The parts are packed in cartons, and the steel pipes are packed in conventional ways.
Delivery Time: 15 days
Payment Terms: Western Union, T/T
Supply Ability: 50000000sqm per month
Goods Name: Australia Popular Side Ventilation With Shading Net Tomato Chili Cucumber Customized Single Span Tunnel Greenhouse Shippin G Way: By Sea
Width: 8-10m A Span Top Heigh T: Standard 2.8m (accept Customized)
Wall Height: Standard 1.5m (accept Customized) Lengt H: Accept Customized
Place: Chengdu Country: China
High Light:

Galvanized Steel Tunnel Plastic Film Greenhouseouse

,

Shading Net Ventilation Plastic Film Greenhouseouse

,

Aluminum Plated Tube Tunnel Plastic Greenhouse

Australia Popular Side Ventilation With Shading Net Tomato Chili Cucumber Customized Single Span Tunnel Greenhouse

Description

The accessories and frame of the greenhouse are all made of hot-dip galvanized steel. This kind of greenhouse is very popular in all countries and regions of the world because of its very simple and classic structure. It is suitable not only for most climates and regions, but also for most common crop uses. You can even add a variety of supporting systems. For example: irrigation system, hydroponic system, lighting system, etc. If you're also growing regular crops like peppers, kale, watermelons, strawberries, tomatoes and cucumbers, then we think this greenhouse is your best bet.



Structure introduce

The greenhouse is designed to be shaped like a tunnel. The sides of the arch need to be inserted about 30-50 cm into the ground.  It is buried 30-50cm underground, which not only ensures the structural stability of the greenhouse, but also saves the cost of the greenhouse. Both sides of the greenhouse are equipped with artificial ventilation devices, which can effectively ensure air circulation.  The ventilation area is equipped with a 40mesh insect-proof net, which can prevent harmful insects and organisms from entering the greenhouse, protect the safety of crops and ensure the output of crops.



Covering Material

In addition, we can also provide some other thickness, we can also provide some other kinds of film, you can also choose the film you need according to your situation. This kind of greenhouse covering material is made of polyethylene without drip film, this kind of material not only has good light transmittance, good heat preservation performance, good drip resistance, good weather resistance and other characteristics, but also has the advantage of long service life. It effectively blocks uv rays and reduces harmful uv rays passing through the greenhouse. Thus, the service life of the film is greatly extended. Our standard film sizes are 80 microns, 150 microns and 200 microns thick.



Parameter

Item Parameter Remark
Product model CD1-0

Ventilation system and shading system can be added.

Standard size W 8m, L 10m-60m Accept Customized
Wall height 1.5 meters Accept Customized
Arch φ25mm*1.5mm Can be changed
wall column φ25mm*1.5mm Can be changed
Covering material 80 / 150 micron Can be changed

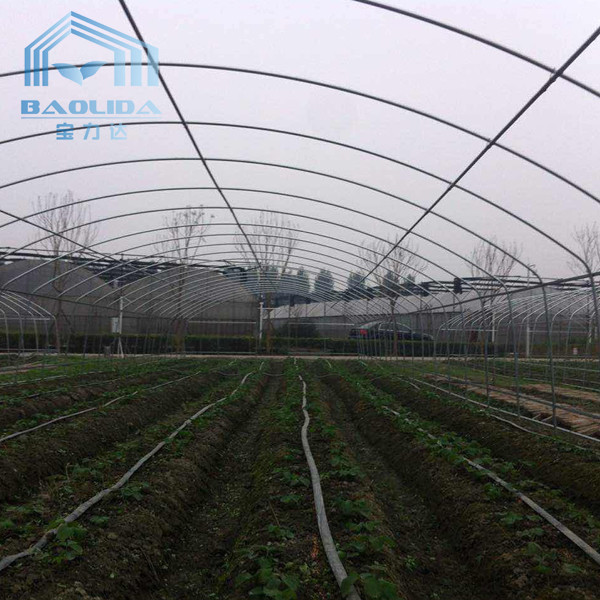

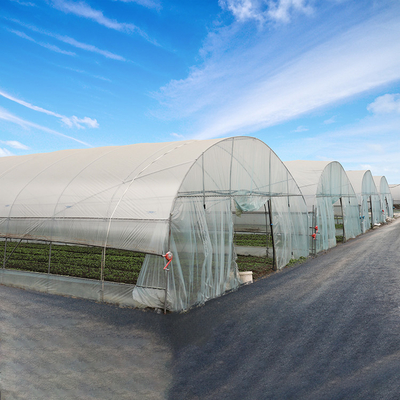

Examples of pictures

Galvanized Steel Tunnel Plastic Film Greenhouseouse with Shading Net 0

Galvanized Steel Tunnel Plastic Film Greenhouseouse with Shading Net 1

Galvanized Steel Tunnel Plastic Film Greenhouseouse with Shading Net 2

Galvanized Steel Tunnel Plastic Film Greenhouseouse with Shading Net 3



Transportation

Galvanized Steel Tunnel Plastic Film Greenhouseouse with Shading Net 4



Production

Galvanized Steel Tunnel Plastic Film Greenhouseouse with Shading Net 5



Certificate

Galvanized Steel Tunnel Plastic Film Greenhouseouse with Shading Net 6



Customer visit and praise

Galvanized Steel Tunnel Plastic Film Greenhouseouse with Shading Net 7

Galvanized Steel Tunnel Plastic Film Greenhouseouse with Shading Net 8



Service
1. We can design the most suitable greenhouse for you according to your local climate and your needs.
2. We will give you a detailed quotation, so that you can clearly see the composition of the price.
3. We provide a 5-year warranty service for steel pipes and a 3-year warranty service for covering materials.
4. we have a professional construction design team, can give you the production of detailed construction drawings, at the same time to give you remote technical guidance.
5. We also cooperate with many agricultural factories to help you with one-stop shopping.

Galvanized Steel Tunnel Plastic Film Greenhouseouse with Shading Net 9



Contact us

Galvanized Steel Tunnel Plastic Film Greenhouseouse with Shading Net 10



FQA

1. When can I get the price?

Usually within 24 hours after we get your inquiry. If you are urgent to get the price, please call me or tell me in the email.

2. Can you accept our own design, logo and pattern?

We can produce it according to your design.

3. Are you manufacturer or Trading company?

We are greenhouse manufacturer in ChengDu China,We are greenhouse manufacturing, and We also welcome you to visit our factory.

4. When can I got the goods?

Produce time is within 15days, and shipping is usually 20-35days.

5. What is your best price?

The same style of greenhouse can be used in different thickness of steel, and different thickness of film. These will have a direct impact on greenhouse prices. And the larger the area, the lower the unit price will be
