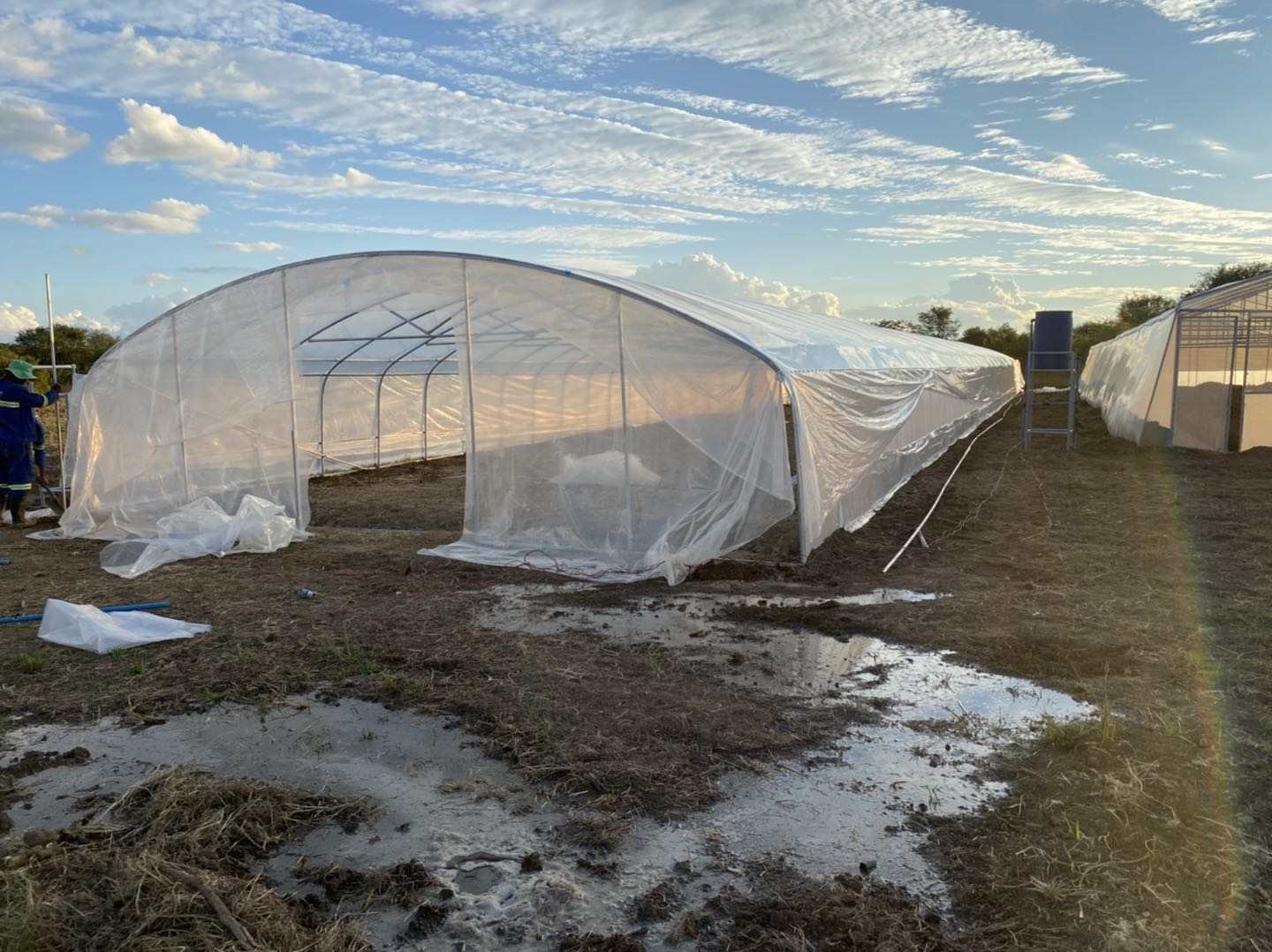

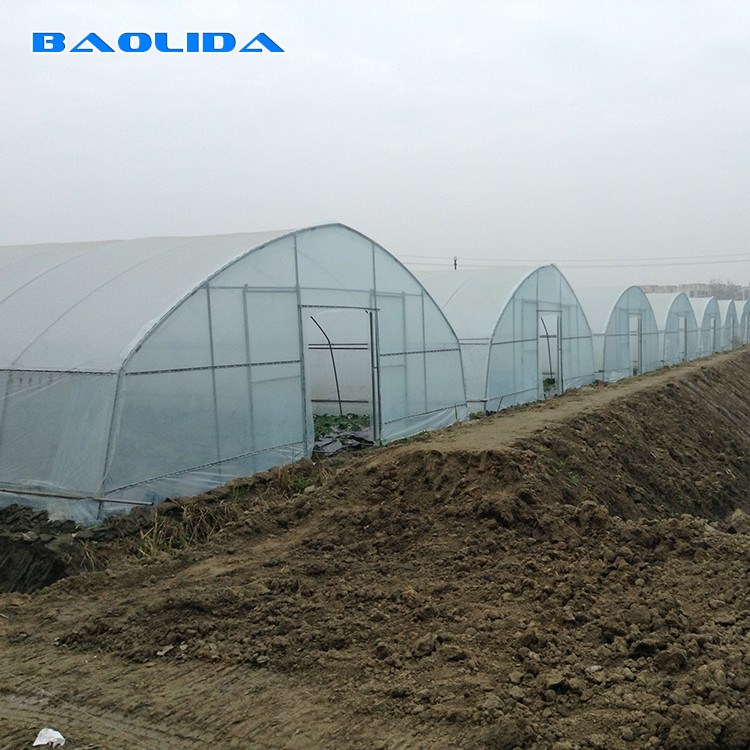

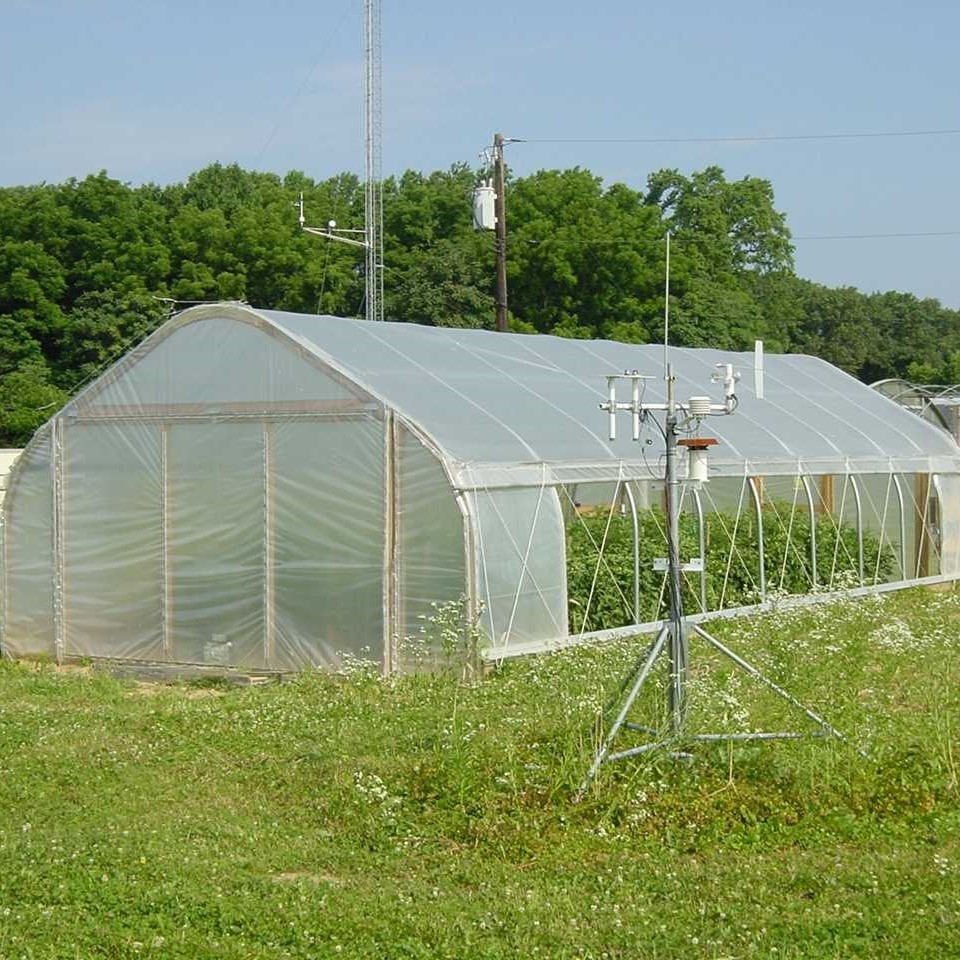

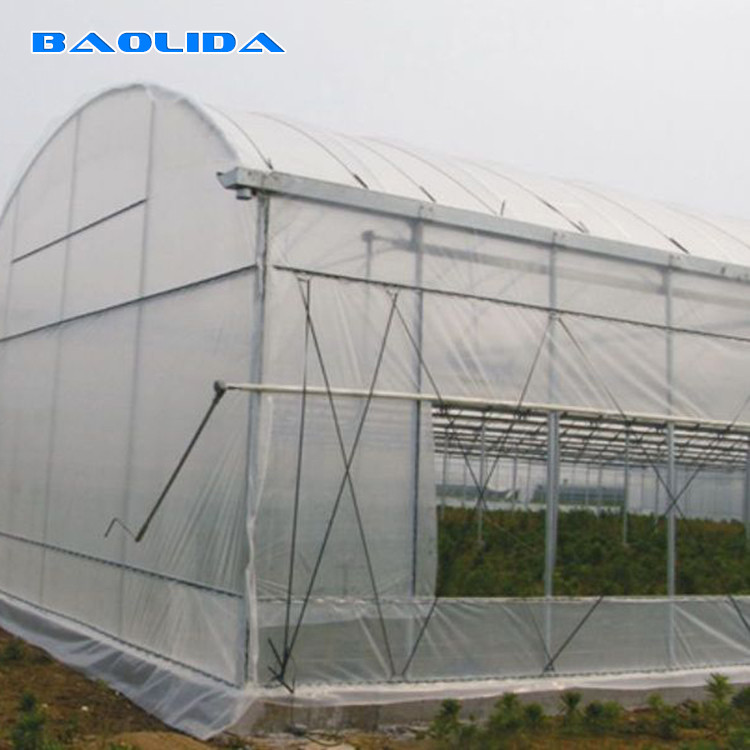

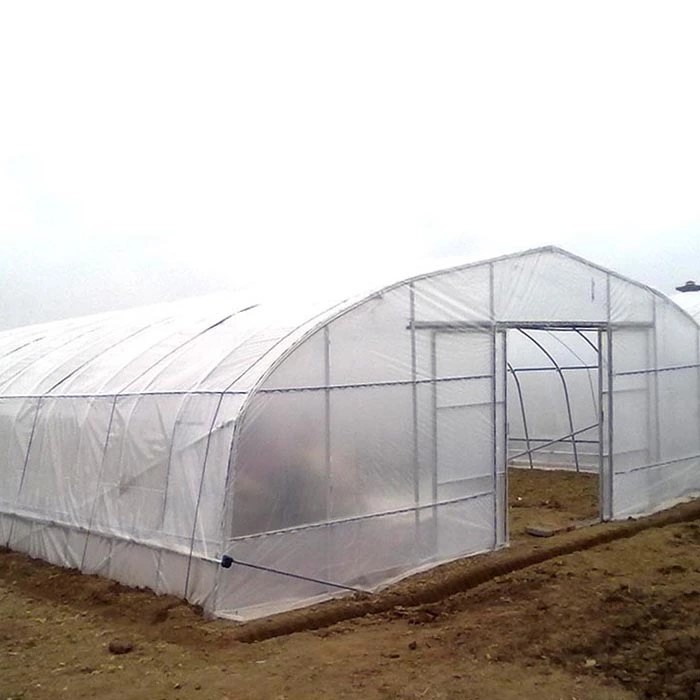

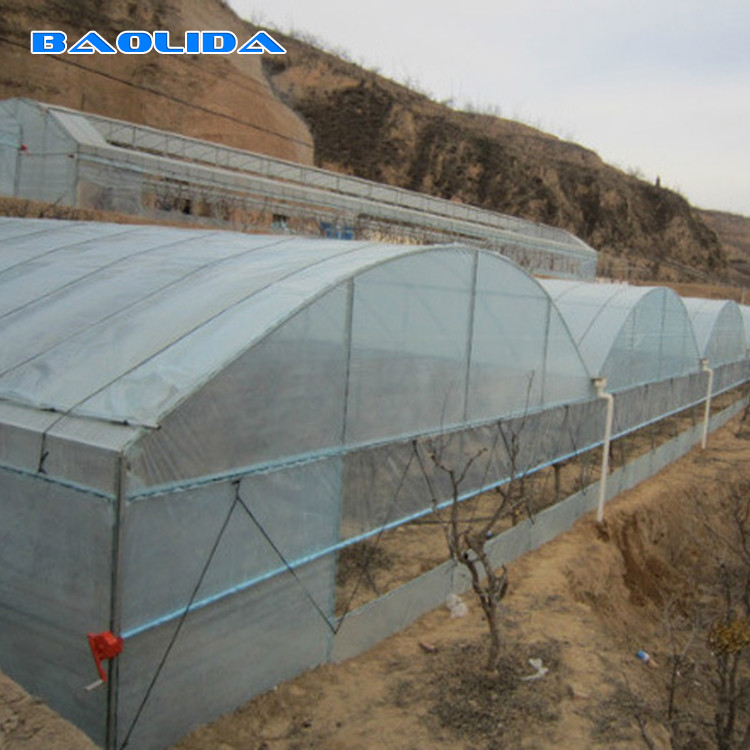

Galvanized Single Span Vegetable Tunnel Plastic Growing Customized Tunnel greenhouse
Introduction:
Increase your harvest quality, yield and profit by cultivating high tunnel fields. High tunnels help you start harvesting faster, extend your season, reduce pests and change the environment. With our 6-inch side wall, FieldPro Gothic offers you more space on the side wall and in the headroom for growing larger plants such as fruit trees or hemp. The Field Pro is available in two roof hards and three standard widths and can be easily adapted to your needs. Call me today and grow like a professional.
Greenhouse Framework:
Frame material
1. The main framework designed to meet the "GB50017-2003Steel Design Code";
2. 2.The steel material meets the "GB700-88carbon steel";
3. 3.Hot dip galvanizing layer steel products technical requirements hot.
Advantage:
- elegant appearance, economical & practical, large inner space
- cheap, simple and easy to install
- especially for winter culture in warm area
- Preventing seedling from being damaged by gale, downfall and hail.
- Preventing crops being damaged by aphis, insect, whitefly etc.
Can be used as Tomato Greenhouse, Vegetable Greenhouse, Flower Greenhouse, Mushroom and Poultry House.
Please go further to know more about us and our products.
Frame Structure Parameters
Parameter:
| Description | Technical Data details |
|
Single-span Film Tunnel Greenhouse |
Wind load: 0.4 KN/m² |
| Snow load: 0.5 KN/m² | |
| Rainfall: 140 mm³/h | |
| Dead load: 25 KG/m² | |
| Hanging load: 50 KG/m² | |
| Span Width(m): 6.0 ~ 15.0 14.0 ~ 22.0 | |
| Bay Width(m): 0.8 ~ 1.2 | |
| Roof Height(m): 3.0~ 4.5 | |
| Skeleton Material: high quality hot galvanizing Steel pipe | |
| Covering Material: PO film / EVA film (2 layers is possible) | |
| Outside Insulation: high quality quilt | |
| Support system: side ventilation system (by film rolling up machine) | |
| We can supply customized design just as per your requests! | |
Service
1. We can design the most suitable greenhouse for you according to your local climate and your needs.
2. We will give you a detailed quotation, so that you can clearly see the composition of the price.
3. We provide 5-year warranty service for steel pipes and 3-year warranty service for covering materials.
4. we have a professional construction design team, that can give you the production of detailed construction drawings, at the same time to give you remote technical guidance.
5. We also cooperate with many agricultural factories to help you with one-stop shopping.
FAQ
1. When can I get the price?
Usually within 24 hours after we get your inquiry. If you are urgent to get the price, please call me or tell me in the email.
2. Can you accept our own design, logo and pattern?
We can produce it according to your design.
3. Are you a manufacturer or Trading company?
We are a greenhouse manufacturer in Chengdu China, we are greenhouse manufacturing, and We also welcome you to visit our factory.
4. When can I get the goods?
Produce time is within 15days, and shipping is usually 20-35days.
5. What is your best price?
The same style of greenhouse can be used in different thicknesses of steel, and different thicknesses of film. These will have a direct impact on greenhouse prices. And the larger the area, the lower the unit price will be
