Automated Control Blackout Greenhouse Light Deprivation Greenhouse
Brief introduction

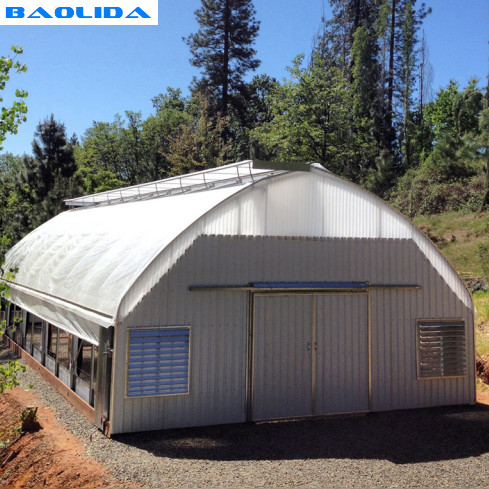

Blackout greenhouse is designed to promote complete darkness at some times, while permitting light at others, and at the will of the grower or greenhouse operator.
Blackout greenhouse is composed by hot galvanized pipe as the structure, and two-layer curtains which can create complete light deprivation. Curtains available in a range of thicknesses.

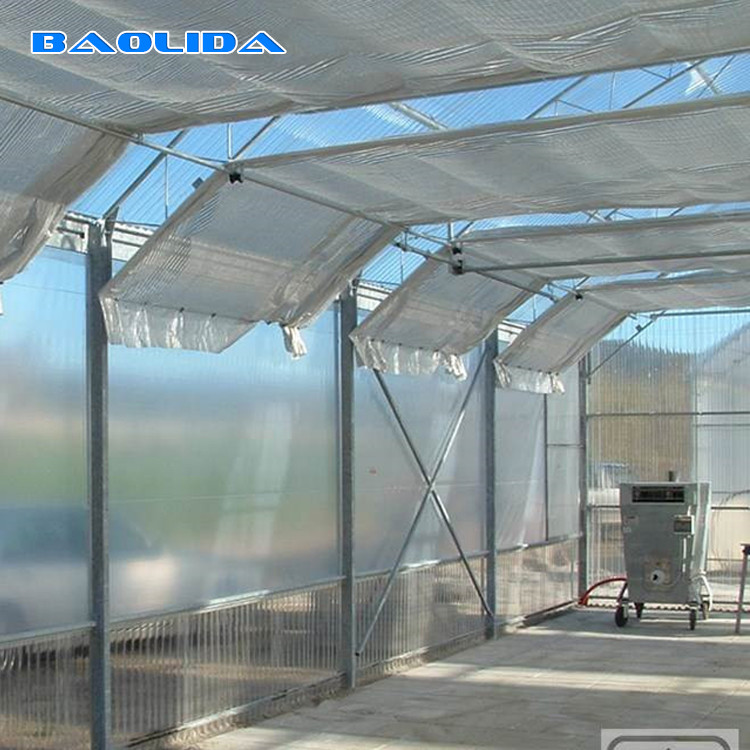

Blackout system
(1) Shading rate 100%. This kind of blackout curtain is suitable for sensitive plants requiring photoperiod control, such as chrysanthemum;
(2) The special structure of its double layer material can achieve less than 0.4% of the light transmittance. The light is reflected by the aluminum foil on the surface of the shading curtain. During the light-dark period, unwanted light accumulation can be prevented. Although made of double-layer material, the closed curtain can still be collapsed into a small size, to ensure that the crop in its open to get maximum light. Has a good water permeability, the bottom of the curtain will not form condensation droplets. UV guarantee 5years.
(3) 1pcs 0.55kw gearmotor with control box can open and close the net, including the timer.
Greenhouse Galvanized Frame
* Arch Roof Pipe (round pipe): 32*2mm;
* Roof Connecting Pipe (round pipe): 32*2mm;
* Roof Vertical and Oblique Supporting Round Pipe: 25*2mm;
* Main Column (square pipe): 50*50*2mm;
* Span Middle Column (square pipe): 50*50*2mm;
* Side Auxiliary Column (square pipe): 50*30*2mm;
* Lower Connecting Square Pipe: 50*30*2mm;
* Span and Side Girt: 50*30*2mm;
* Door ( Type): 2m*2.4m;(1 sets)
* Wall Base Height: 0.3m
*No Gutter
Greenhouse film:
Material: PE+EVA
Features: Anti-dew and dustproof , Anti-dripping,anti-fog,anti-aging
Thickness:80/ 100/120/130/140/150/200micro
Diffusion:53%
Temperature range: -40 to 60C
UV transmission:300-390%
Life time:3-8years
Specification:
| Product type |
Blackout greenhouse |
| Width |
8m-12m |
| Pillar space |
1m/1.5m/2m(3.28'/4.92'/6.26') |
| Wall height |
1.5m-2.5m(4.92'-8.2') |
| Roof height |
2.5m-4m(8.2'-13.12')
|
| Covering material |
150 or 200 micro plastic film |
| Natural ventilation |
Motor driven or manual rolling vents on two sides
|
Aluminium Connecting Profiles
* To help the Frame Connection
* To help the PC-sheet Connection
(Specific quantities and accessories will be reflected in the material sheet)
Advantage:
These fully automated blackout systems are a medical herbs grower's dream. They enable growers to save money on labor, while still maintaining control of indoor growing.
• Cast greenhouses into total light deprivation with minimal time and labor.
• Get control of an indoor grow room, while capitalizing on the sustainability and cost-saving
• Gain complete control of the light cycle.
• Produce the highest-quality harvests and gain greater control over harvests.
• Easily create the optimal growing environment.
The basic composition of the blackout system:
1. Electric control box and motor
2. Gear and rack
3. Transmission part
4. Curtain line
5. Double/Triple professional blackout curtain.
Covering:
1. Clear PE film as the covering material;
Made in China, the 4-5year guarantee period
Global light transmission : ≥ 90%
UV transmission:300-390%
Tear Resistance 15gf/mic
Dart Drop:1000G
Steel frame
A. Hot-dip galvanized steel structure; Stable structure, high intensity;
B. Assembly style without welding points;
C. Excellent anti-corrosion effectiveness;
| No |
Items |
Description |
Including Or Not |
| 1 |
Steel Structure |
Hot-galvanized steel pipe |
Yes |
| 2 |
Greenhouse film |
There's a lot of thickness to choose from |
Yes |
| 3 |
Insect net |
High-quality polyethylene as raw material |
Yes |
| 4 |
Cooling system |
It consists of cooling fans and a cooling pad |
Yes |
| 5 |
Film-rolling system |
Electrodynamic type,chain type,manual type |
Yes |
| 6 |
Ventilation system |
Side windows and circulation fans |
Yes |
| 7 |
Heating system |
Hot water heating, hot air heating, electric heating |
Optional |
| 8 |
Drip irrigation system |
It can be customized according to the greenhouse length and width |
Optional |
| 9 |
Micro-sprinkler system |
It can be customized according to the greenhouse length and width |
Optional |
| 10 |
Fill in light |
Easy assemble auto light deprivation blackout greenhouse |
Optional |
| 11 |
Seedling bed |
Movable seeding bed |
Optional |
| 12 |
Hydroponics |
It can be reused, no need to add nutrients, convenient and affordable. |
Optional |
These fully automated blackout systems are a cannabis growers dream. They enable growers to save money on labor,
while still maintaining the control of indoor growing.
Cast greenhouses into total light deprivation with minimal time and labor.
Get the control of an indoor grow room, while capitalizing on the sustainability and money-saving benefits of a greenhouse.
Gain complete control of the light cycle.
Produce the highest-quality harvests and gain greater control over harvests.
1. When can I get the price?
Usually within 24 hours after we get your inquiry. If you are urgent to get the price, please call me or tell me in the email.
2. Can you accept our own design, logo, and pattern?
We can produce it according to your design.
3. Are you a manufacturer or Trading company?
We are a greenhouse manufacturer in Chengdu China, are greenhouse manufacturing, and We also welcome you to visit our factory.
4. When can I get the goods?
Produce time is within 15days, and shipping is usually 20-35days.
5. What is your best price?
The same style of greenhouse can be used in different thicknesses of steel, and different thicknesses of the film. These will have a direct impact on greenhouse prices. And the larger the area, the lower the unit price will be
