Yunnan Multi-span Greenhouse Project

June 19, 2019

Latest company case about Yunnan Multi-span Greenhouse Project

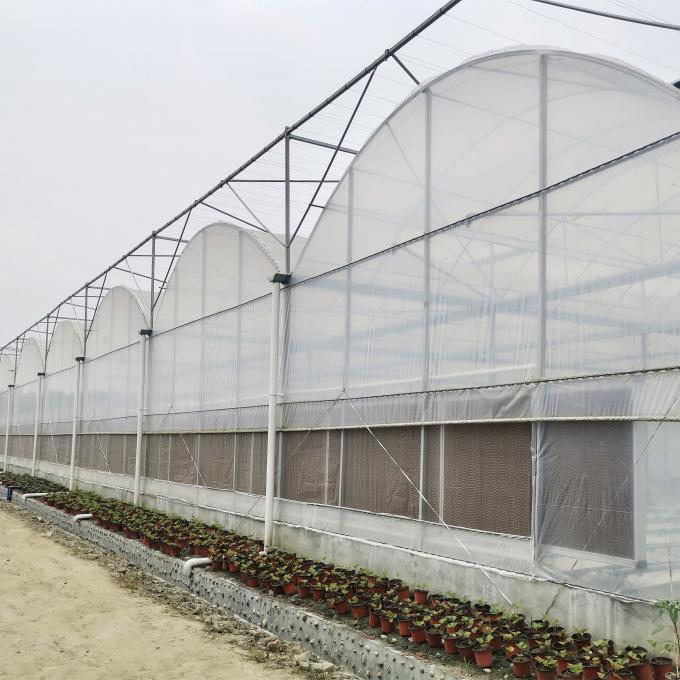

Yunnan Multi-span Greenhouse Project



latest company case about Yunnan Multi-span Greenhouse Project  0

1. Project introduction


(1) Project Location: China
(2) Span width 8m,3 spans, 36m as length, Shoulder height is 3m, Top height is 4.5m
(3) 0.2mm PE film
(4) Main column:Φ50*50*2.5mm; Gutter: S1.5*410mm; Cross beam:Φ25*1.5mm; Arch:Φ25*1.5mm; Purline:Φ25*1.5mm
(5) Hot galvanized steel framework, zinc coated
The greenhouse is connected by all connected parts, not the welding type.
Accessories Included: Slot circlip, Squeeze film line, Duckbill clip, Slot connecting piece, Squeeze film clip, Rollup device, Tope pressure spring, Slot-fixed clip, Self-tapping screws, Clamp, Screw.

latest company case about Yunnan Multi-span Greenhouse Project  1

2. Project details


Greenhouse adopts hot dip galvanized steel frame, no welding, stable structure, large bearing capacity, wide application range. Each span is equipped with gutters and drains to prevent the accumulation of rainwater. Greenhouse daylighting area, good light transmittance, beautiful appearance, long service time.

latest company case about Yunnan Multi-span Greenhouse Project  2
The greenhouse is covered by 200 micron PE film, strong tension, heat preservation, anti-aging, and uv - proof.  In order to adapt to the high-temperature climate of Sri Lanka, the greenhouse is covered with insect control nets around the greenhouse, increasing the ventilation performance of the greenhouse. Avoid crops in the sun and rain at the same time, can adjust the temperature in the shed, to ensure the growth of crops.

This is Baolida Greenhouse, welcome to consultation!
