Tropical Tunnel Plastic Greenhouse / Customized Agricultural Greenhouse

Basic Information
Place of Origin: Sichuan China
Brand Name: Baolida
Certification: ISO9001:2008
Model Number: BLD182
Minimum Order Quantity: Negotiation
Price: USD 2-6/sqm
Packaging Details: Standard package
Delivery Time: 7-15days after receiving payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000000ton/ month
Product Name: Tropical Tunnel Plastic Greenhouse / Customized Agricultural Greenhouse Material: PE, Hot Dipped Galvanized Steel
Feature: Stable Structure Covering: Polyethylene Film
Width: Customized Length: Adjustable
Function: Warm Reservation Span Width: 6m/6.2m/6.4m/8m/9.6m/10.8m/12m
Ventilation: Roof Ventilation/side Ventilation Structure: Stable Structure Easily Assembled
High Light:

plastic grow tunnel

,

polythene grow tunnel

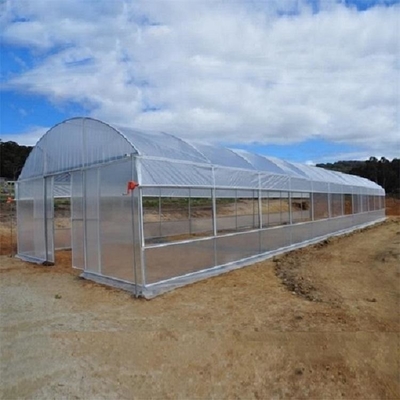

Tropical Tunnel Plastic Greenhouse / Customized Agricultural Greenhouse

Single tunnel film greenhouse is specially designed for counter-season vegetables and fruit. The single-span film greenhouse can be a gothic roof or arch roof. We optimize the greenhouse frame and adopt the high light transmittance plastic film so that more space and sunlight will be filled in the greenhouse.



Product overview:

Installation: connected by appropriative connectors.

Framework: Hot Dipped Galvanized Steel Pipe

Pipe shape: round or square pipe

Covering material: PE film

Thickness of PE film :0.08mm,0.1mm,0.12mm ,0.15mm,0.2mm

Width : 7m,8m,9m …

Length :30-60m Shoulder

Height :1.5-1.8m

Top Height :2.8-3m

Arch space :1-1.2m

Number of backbone :1~3

Ventilation: Two sides or Roof combined with insect net.

Rolling winder: electric or manual combined with insect net.

Door :aluminum alloy1.8*2.0, 1.8*1.2

Accessories Shading net(inside or outside shading), Fan+Cooling pad etc.



Plastic Coverd Greenhouse Technical:

Wind load 0.55KN/m2
Snow load 0.55kN/m2
Plants hanging load 0.15KN/m2
Rainfall 140mm3/h



Advantages:

1. Simple structure: galvanized steel framework+plastic film covering +side ventilation.

2. Easily assembled: easily connected with some fastenings.

3. The large inner space is convenient for operation and maintenance.

4. Cost-effective tunnel greenhouse, you can make a high output with low input.

5. Long service life: be used for more than 5 years.

6. Multi-functional: used for planting different vegetables.



Usage:
. Vegetable cultivation

. Flower cultivation

. Fruits such as grapes, strawberry, watermelon, orange etc,.

. Forestry seedling cultivation, planting ornamental trees and shrubs.

. Aquaculture and animal breeding.



Covering:

1. Clear PE film as the covering material;

2. Thickness is 0.15mm or 0.2mm;

3. Cover the greenhouse with the film of 1 or 2 layers;

4. Has the function of dust-proof and anti-dripping;



Steel frame

1. Hot-dip galvanized steel structure; Stable structure, high intensity;

2. Assembly style without welding points;

3. Excellent anti-corrosion effectiveness;

Tropical Tunnel Plastic Greenhouse / Customized Agricultural Greenhouse 0Tropical Tunnel Plastic Greenhouse / Customized Agricultural Greenhouse 1

Tropical Tunnel Plastic Greenhouse / Customized Agricultural Greenhouse 2

Tropical Tunnel Plastic Greenhouse / Customized Agricultural Greenhouse 3Tropical Tunnel Plastic Greenhouse / Customized Agricultural Greenhouse 4

Our service:

1. Reliable design:A powerful and creative team of design, research and development .we design the greenhouse according to the local climate and geographical condition.

2. Greenhouse installation:Engineers can be sent to your country for greenhouse installation.

3. Quality guarantee: We have strict quality control and mature technology ,our products have met the

national and the industry standard .All our exports will be strictly inspected before shipment.

4. One-to-one 24 hours full-time online service:any questions,please contact us.

5. After service:If any quality problems occurs within the guarantee period,we will take our responsibility and provide on site service if needed.



Shipping:

Customers could choose air or rail way or shipping as actual situation.

Delivery Time:

Shipped in 10-15 days upon payment

Shipping port: Shanghai/ Shenzhen/ Chongqing
