Greenhouse Drip Irrigation System / Overhead Sprinkler System For Greenhouse

Basic Information
Place of Origin: Sichuan China
Brand Name: Baolida
Certification: ISO9001:2008
Model Number: BLD-IS85
Minimum Order Quantity: Negotiation
Price: USD 50-200/set
Packaging Details: Standard package
Delivery Time: 7-20days after receiving payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000000ton/ month
Product Name: Irrigation System Drip Irrigation System Sprinkler Irrigation System Material: PVC Pipe
Length: 1000m/600m/400m/300m/200m/150m/100m Per Roll Thickness: 1mm,1.5mm,1.8mm,2.0mm,2.5mm,2.8mm,.3.5mm,4.6mm Etc
Application: Agriculture Irrgatipn Feature: Eco-friendly
Custom Set: According To Customer Function: Drip Irrigation Work
OEM: Accepted Usage: Agriculture Drip Irrigation,outdoor Garden
High Light:

greenhouse drip irrigation system

,

greenhouse sprinkler system

Irrigation System Drip Irrigation System Sprinkler Irrigation System​





Introduction:



Irrigation is the artificial application of water to the land or soil. It is used to assist in the growing of agricultural crops, maintenance of landscapes, and revegetation of disturbed soils in dry areas and during periods of inadequate rainfall. Irrigation system can be divided into two types, drip irrigation and sprinkler irrigation.



What is drip irrigation tape?


The inner flat emitter drip tape, was inserted the flat emitter into a thin pipe to make it as a integrated tape. Emitter together with the tape, easy installation. With the filter window, the emitter have filter ability. Adopt labyrinth flow pass have the pressure compensation ability. The emitter spacing can be customer requirement.
For the size of products, we can produce it according to customer requirement.



Plentirain drip irrigation tape advantage:



1. Made by 100% virgin Polyethylene, ensure product quality.

2.The actual meter of one roll is produced longer than the label stated.

3. No breakage for every roll, good for drip tape laying out by machinery.

4. Safe cohesion of flat emitter.

5. Production is strictly controlled in conformity with standard ISO 9261:2004. Inspection is carried out on diameter, wall thickness, emitter spacing, flow rate, bursting pressure, CV, emission uniformity, carbon black content, hydrostatic pressure, tensile strength.





Features:



It is available to irrigate vast area at same time with low volume.

Injection-molded drippers are welded inside the seamless tubing for strength in the field.

Superior durability with raw material of chemical-proof and anti-ultraviolet rays.

Seamless construction permits high flushing pressure.
Suitable to annual crops by its accurate equalized irrigation.
Additional in sert of the high-technology dripper inside the hose.
Preventing over moisture in the air and controlling appearance of harmful insects in the greenhouse.



Parameter:



Diameter

16mm

Wall thickness

0.6mm-1.5mm

Dripper spacing

200mm-2000mm

Working pressure

0.06-0.4Mpa

Flow rate

1.8-2.0-3.0-4.0-6.0L/H

Length/roll

500m,600m,800m,1000m

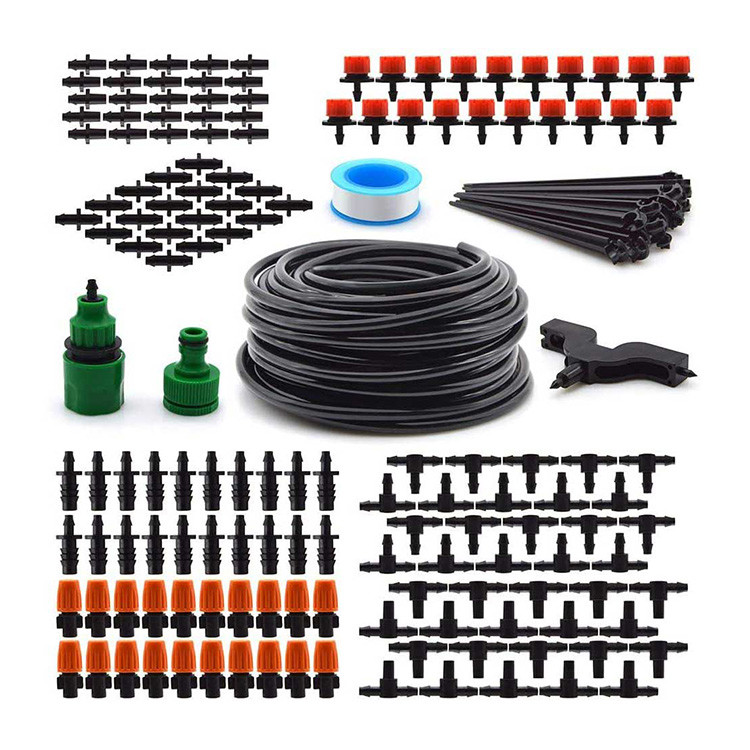

Accessories



We can supply complete irrigation system:

1. Water pump 2. Filters 3. Venturi injector from 3/4” to 2” 4. PVC pipe and PE pipe 5. Drip line and drip tape  6. PVC valves and PP connectors



Sprinkler irrigation:



Sprinkler irrigation forms a mist to spray water at constant pressure on the air, disperse in droplets, or fall to plants and ground by differences in water pumps and pipeline systems or natural water sources. Sprinkler irrigation is suitable for almost all dry crops such as grains, vegetables, fruits, edible mushrooms, herbs, etc. It is flat, also applied to acids, strong permeability of the soil, as well as weak soil permeability. Irrigation can be used not only to irrigate crops into gardens, flowers, grass, but also to sprinkle fertilizers, pesticides, frost, heat stroke, cool and dust.



Greenhouse Drip Irrigation System / Overhead Sprinkler System For Greenhouse 0

Greenhouse Drip Irrigation System / Overhead Sprinkler System For Greenhouse 1

Greenhouse Drip Irrigation System / Overhead Sprinkler System For Greenhouse 2Greenhouse Drip Irrigation System / Overhead Sprinkler System For Greenhouse 3



Packing :

We have many years of export,so we own a complete system of packing and transport .our inspection department will examine and test the products thoroughly and carefully before package.



Shipping :

We can arrange best logistics company to responsible for the shipping the goods,of course ,we also can provide many service for you to choose ,such as FOB,CIF,CFR,DDP,DDU and so on .



Greenhouse Drip Irrigation System / Overhead Sprinkler System For Greenhouse 4Greenhouse Drip Irrigation System / Overhead Sprinkler System For Greenhouse 5Greenhouse Drip Irrigation System / Overhead Sprinkler System For Greenhouse 6





Greenhouse Drip Irrigation System / Overhead Sprinkler System For Greenhouse 7
Greenhouse Drip Irrigation System / Overhead Sprinkler System For Greenhouse 8



Greenhouse Drip Irrigation System / Overhead Sprinkler System For Greenhouse 9

1. When can I get the price?
Usually within 24 hours after we get your inquiry. If you are urgent to get the price, please call me or tell me in the email.
2. Can you accept our own design, logo, and pattern?
We can produce it according to your design.
3. Are you a manufacturer or Trading company?
We are a greenhouse manufacturer in Chengdu China, are greenhouse manufacturing, and We also welcome you to visit our factory.
4. When can I get the goods?
Produce time is within 15days, and shipping is usually 20-35days.
5. What is your best price?
The same style of greenhouse can be used in different thicknesses of steel, and different thicknesses of the film. These will have a direct impact on greenhouse prices. And the larger the area, the lower the unit price will be
