Negative Pressure Fan And Wet Pad Cooling System For Greenhouse

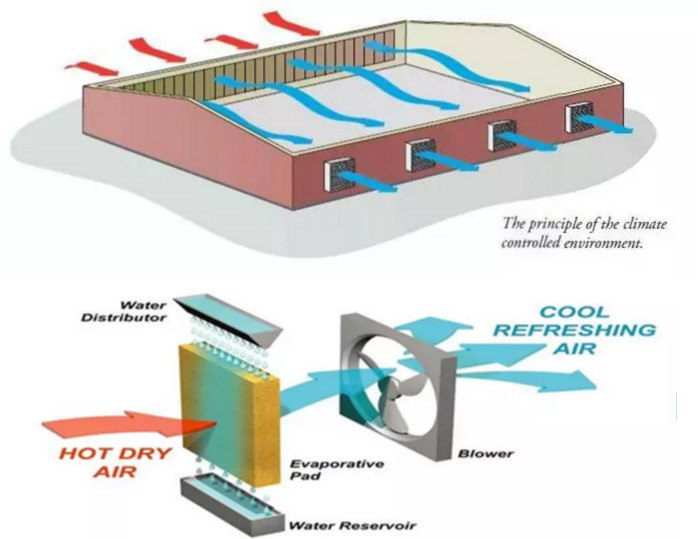

The cooling system is used to lower air temperature, enhanced air circulation to cool down the indoor air. It's applicable for hot condition area.There are three ways to choose a cooling system:cooling pad,negative pressure fan,circulation fan.
Exhaust fan is featured by low noise, electricity saving, large air flow,easy installation, which is an ideal choice for sunstroke prevention and ventilation in occasions such as various warehouses, offices,flower greenhouses & poultry houses. The product is used to transport non-flammable,low-corrosive gases with the temperature no higher than 500°C, relative humidity no greater than 80% and the quantity of dust and solid impurities 150mg/m³.
| Size (mm) | 1380*1380*400 | Transmission Mode | Belt |
| Blade Dia (mm) | 1250 | Rotational Speed(r/min) | 425 |
| CFM(m3/h) | 44500 | Voltage (v) | 380 |
| Noise (db) | ≤65 | Input Power (w) | 1100 |
| Total Pressure (pa) | 60 | Net Weight (kg) | 7 |
Cooling Pad, also called wet pad, made of hydroscopicity kraft paper, is mainly used for the cooling system, humidification system and filter system. The process includes gluing, drying, corrugating, shaping, solidifying, cutting and polishing. Common specifications are 7090, 7060 and 5090 with 45 * 45 angle. Special sizes or dimensions need made or required individually.
Water Evaporative Cooling Pad is widely used for greenhouse,industrial workshop etc,having good effect on ventilation normally equipped with exhaust fan.
Technical Specification
| H: high W: width D: depth H:wave height α:wave angle β:wave angle | |||
| Item | 7090 | 7060 | 5090 |
| H(mm) | 1500/1800/2000and so on | 1500/1800/2000and so on | 1500/1800/2000and so on |
| W(mm) | 600/300 | 600/300 | 300/600 and so on |
| D(mm) | 100/150 or as requirement | 100/150 or as requirement | 50/100/150 or as requirement |
| h(mm) | 7 | 7 | 5 |
| α(mm) | 45 | 15 | 45 |
| β(mm) | 45 | 4 | 45 |
Packing :
We have many years of export,so we own a complete system of packing and transport .our inspection department will examine and test the products thoroughly and carefully before package.
Shipping :
We can arrange best logistics company to responsible for the shipping the goods,of course ,we also can provide many service for you to choose ,such as FOB,CIF,CFR,DDP,DDU and so on .
1. When can I get the price?
Usually within 24 hours after we get your inquiry. If you are urgent to get the price, please call me or tell me in the email.
2. Can you accept our own design, logo, and pattern?
We can produce it according to your design.
3. Are you a manufacturer or Trading company?
We are a greenhouse manufacturer in Chengdu China, are greenhouse manufacturing, and We also welcome you to visit our factory.
4. When can I get the goods?
Produce time is within 15days, and shipping is usually 20-35days.
5. What is your best price?
The same style of greenhouse can be used in different thicknesses of steel, and different thicknesses of the film. These will have a direct impact on greenhouse prices. And the larger the area, the lower the unit price will be
