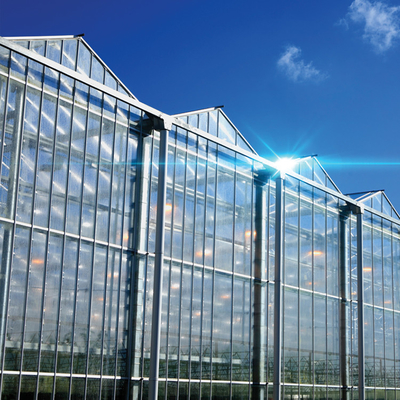

High Venlo Type Greenhouse Strong Commercial Multi Span Glass Covered

Negotiation
MOQ
USD 35-50/sqm
Price
High Venlo Type Greenhouse Strong Commercial Multi Span Glass Covered
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: High Venlo Type Greenhouse Strong Commercial Multi Span Greenhouse
Feature: High Strong Structure
Type: Multi Span
Cover: Glass
Top Height: 4.8 5.8 Or As Clients Demand
Size: Large
High Light:

venlo style greenhouse

,

plastic sheet greenhouse

Basic Infomation
Place of Origin: Sichuan China
Brand Name: Baolida
Certification: ISO9001:2008
Model Number: BLD562
Payment & Shipping Terms
Packaging Details: Standard package
Delivery Time: 7-20days after receiving payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000000ton/ month
Product Description

High Venlo Type Greenhouse Strong Commercial Multi span Greenhouse





Venlo Greenhouse:



Glass greenhouse is typical and high tech greenhouse, single or double vacuum layer covers, light transmission from 88% to 97% depending on floating horticultural glass or diffused glass.



Features:

1. Good light transmittance, the transmittance of single layer glass greenhouse up to 97%, the double glazing is 88%.

2. Good water proof.

3. Anti-age, anti-sweat large area for cultivating.
4. Venlo, small roof not only makes the greenhouse beautiful, also provide high efficiency for users.

5. Uniform illumination.
6. Framework with double-face galvanizing processing, good anticorrosive effect.
7. Good Draining ability.



Glass covering:



The glass is used as the covering material,the light transmittance is extremely high,the heat preservation effect is good,the structure strength is high,the commonly used span is 9.6 meters(3.2*3 steeple),10.8 meters(3.6*3 steeple),12 meters(4*3 steeple),4 meters high to 7 meters in wall height. The top and the surrounding area of the greenhouse can be used for rack and pinion motor drive ventilation equipment,water curtain fan cooling equipment,inner shade,internal insulation,heating,growing light,moving seedbed,mobile sprinkler and other facilities and equipment to meet different customer needs.



Glass Panel



Material: Glass

Characteric: Anti-dew and dustproof , Anti-dripping,anti-fog,anti-aging
Thickness:4/ 6/ 8/ 12mm
Light transmission:>90%

Frame material

Pipe Dia. : 32/ 40/ 50/ 60mm for choice

Material: Hot galvanization steel pipe, smooth surface, zinc coating thinkness>70um, 275g/sqm
Certified: GB50017- 2003 Steel Design Code, GB700-88carbon steel

Parameter:

Wind load
Snow load
Crops hanging load
Rainfull
Length
Width
Shoulder height



Top Height
0.5KN/m2
0.35KN/m2
0.15KN/m2
140
mm/h



30-100m
customized
multiple of 8m
3-6m
4-7m



Venlo Greenhouse:



Venlo-style multi-span greenhouse is the most widely used structure in the world. It is a greenhouse covered with hard materials. It has also become the preferred structure for glass greenhouses and PC panel greenhouses in China.



Features:



The main skeleton structure of the Venlo-style multi-span greenhouse: adopts three roof ridges hot-dip galvanized steel structure with good anti-corrosion performance The service life of the main body is more than 20 years, It also has good light transmittance, the transmittance of single-layer glass greenhouse up to 97%, the double glazing is 88%.



Covering:



Covering materials are mainly divided into polycarbonate hollow board (PC sunshine board), double float glass or tempered glass, etc. Greenhouses are generally covered with UV- and condensation-resistant polycarbonate hollow panels (PC sunlight panels) or glass, and the special hot-dip galvanized steel framework has the advantages of good lighting, thermal insulation, and economical durability, and strong resistance to impact damage. It can also be covered with different materials according to the differences in climate conditions and specific design requirements of the customer's area.



Main configuration:



The greenhouse can be fully automatic controlled and can be equipped with internal and external shading systems, internal thermal insulation systems, skylight side window systems, wet curtain fan cooling systems, heating systems, spraying and irrigation systems, etc. Appropriate configuration is required.





Application:



It can be used not only as a production greenhouse for vegetables and flowers, but also as a nursery greenhouse for vegetables and flowers.


Parameter:

Specifications of Orient Greenhouse


Basic parameters
Wind Load 0.5KN/m²
Snow Load 0.3KN/m²
Greenhouse constant load 15kg/m²
Maximum drainage capacity 140mm/h
Frame Hot dip galvanized steel
Covering Materials PO or PEP film, Glass, Polycarbonate sheet



Optional systems
Ventilation System Shading System
Cooling System Heating System
Irrigation System Seedbed System
Hydroponics System Control System
Lighting system Other customized equipment
We will make design proposal as customers specific requirements.





High Venlo Type Greenhouse Strong Commercial Multi Span Glass Covered 0High Venlo Type Greenhouse Strong Commercial Multi Span Glass Covered 1High Venlo Type Greenhouse Strong Commercial Multi Span Glass Covered 2



Our services

1. Reliable design: a strong and creative design, research and development team to design the greenhouse according to the local climate and geographical conditions.

2. Greenhouse installation: engineers can be sent to your country for greenhouse installation.

3. Quality assurance: we have strict quality control and mature technology, our products have achieved

National and industry standards.All our exports will be strictly inspected before shipment.

4. One-to-one 24-hour online service: for any questions, please contact us.

5. After-sales service: if there is any quality problem during the warranty period, we will assume the responsibility and provide on-site service as needed.



High Venlo Type Greenhouse Strong Commercial Multi Span Glass Covered 3High Venlo Type Greenhouse Strong Commercial Multi Span Glass Covered 4High Venlo Type Greenhouse Strong Commercial Multi Span Glass Covered 5





High Venlo Type Greenhouse Strong Commercial Multi Span Glass Covered 6
High Venlo Type Greenhouse Strong Commercial Multi Span Glass Covered 7



High Venlo Type Greenhouse Strong Commercial Multi Span Glass Covered 8

1. When can I get the price?
Usually within 24 hours after we get your inquiry. If you are urgent to get the price, please call me or tell me in the email.
2. Can you accept our own design, logo, and pattern?
We can produce it according to your design.
3. Are you a manufacturer or Trading company?
We are a greenhouse manufacturer in Chengdu China, are greenhouse manufacturing, and We also welcome you to visit our factory.
4. When can I get the goods?
Produce time is within 15days, and shipping is usually 20-35days.
5. What is your best price?
The same style of greenhouse can be used in different thicknesses of steel, and different thicknesses of the film. These will have a direct impact on greenhouse prices. And the larger the area, the lower the unit price will be
