Paper Wet Curtain Cooling System Silver Negative Pressure Fan High Efficiency

Negotiation
MOQ
USD 50-200/set
Price
Paper Wet Curtain Cooling System Silver Negative Pressure Fan High Efficiency
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Silver Negative Pressure Fan Brown Paper Wet Curtain Cooling System
Application: Greenhouse
Size: Customized
Fecture: Down Temprature
Material: Steel And Papar
Color: Silver And Brown
High Light:

greenhouse cooling fans

,

fan pad cooling system

Basic Infomation
Place of Origin: Sichuan,China
Brand Name: BAOLIDA
Certification: ISO9001:2008
Model Number: BLD-202039
Payment & Shipping Terms
Packaging Details: standard package
Delivery Time: 15 workdays
Payment Terms: D/A, D/P, Western Union, MoneyGram, T/T
Supply Ability: 50000000sqm per month
Product Description

Silver Negative Pressure Fan Brown Paper Wet Curtain Cooling System



Product descrption

1. Wet Curtain:

A cooling pad made of hygroscopic kraft paper is also known as a wet pad and is used mainly for cooling systems, humidification systems and filter systems.The process includes gluing, drying, corrugating, molding, curing, cutting and polishing.Common specifications are 7090, 7060 and 5090 with 45 * 45 angles.Special size or dimensions to be specified or required separately.

Water evaporative cooling pad is widely used in greenhouses, industrial plants, etc., usually equipped with exhaust fan for good ventilation effect.



H: high W: width D: depth H:wave height α:wave angle β:wave angle
Item 7090 7060 5090
H(mm) 1500/1800/2000and so on 1500/1800/2000and so on 1500/1800/2000and so on
W(mm) 600/300 600/300 300/600 and so on
D(mm) 100/150 or as requirement 100/150 or as requirement 50/100/150 or as requirement
h(mm) 7 7 5
α(mm) 45 15 45
β(mm) 45 4 45



Paper Wet Curtain Cooling System Silver Negative Pressure Fan High Efficiency 0

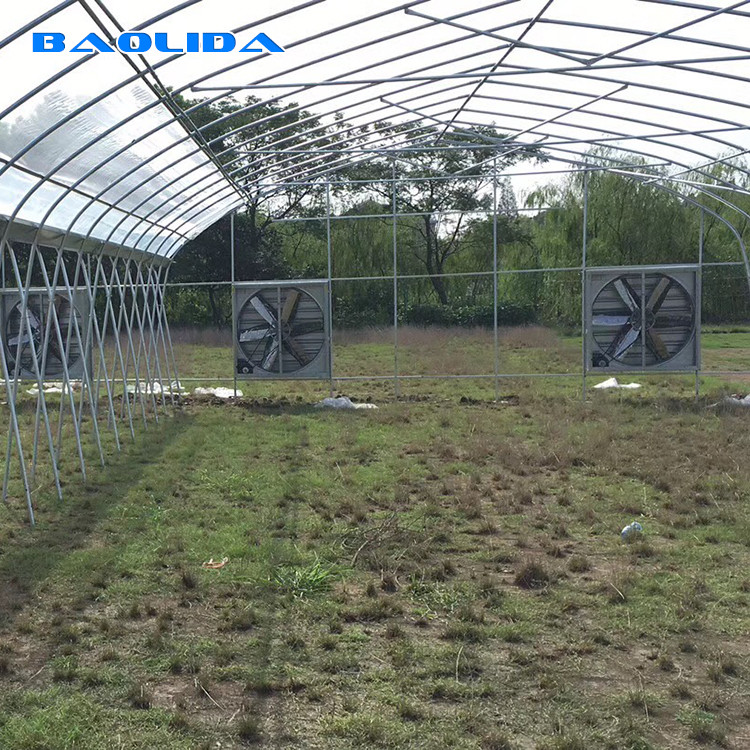

2. Negative Pressure Fan

Fan with low noise, energy-saving, large flow, easy to install and other characteristics, is a variety of warehouses, offices, greenhouse, poultry house and other occasions heat, ventilation ideal choice.The product is used to transport non-flammable, low-corrosive gases with temperatures not exceeding 500°C, relative humidity not exceeding 80%, and dust and solid impurities of 150mg /m.



Size (mm) 1380*1380*400 Transmission Mode Belt
Blade Dia (mm) 1250 Rotational Speed(r/min) 425
CFM(m3/h) 44500 Voltage (v) 380
Noise (db) ≤65 Input Power (w) 1100
Total Pressure (pa) 60 Net Weight (kg) 7



Paper Wet Curtain Cooling System Silver Negative Pressure Fan High Efficiency 1Paper Wet Curtain Cooling System Silver Negative Pressure Fan High Efficiency 2Paper Wet Curtain Cooling System Silver Negative Pressure Fan High Efficiency 3

Paper Wet Curtain Cooling System Silver Negative Pressure Fan High Efficiency 4Paper Wet Curtain Cooling System Silver Negative Pressure Fan High Efficiency 5Paper Wet Curtain Cooling System Silver Negative Pressure Fan High Efficiency 6


Paper Wet Curtain Cooling System Silver Negative Pressure Fan High Efficiency 7
Paper Wet Curtain Cooling System Silver Negative Pressure Fan High Efficiency 8



Our services

1. Reliable design: a strong and creative design, research and development team to design the greenhouse according to the local climate and geographical conditions.

2. Greenhouse installation: engineers can be sent to your country for greenhouse installation.

3. Quality assurance: we have strict quality control and mature technology, our products have achieved

National and industry standards.All our exports will be strictly inspected before shipment.

4. One-to-one 24-hour online service: for any questions, please contact us.

5. After-sales service: if there is any quality problem during the warranty period, we will assume the responsibility and provide on-site service as needed.

FAQ

1. When can I get the price?

Within 24 hours of receipt of your enquiry.If you are in a hurry, please call me or let me know by email.

2. Can you accept the design, logo and design of our own window-opener packaging?

Is.We can produce boxes with your designs, logos and designs.

3. Are you a manufacturing company or a trading company?

We are the greenhouse manufacturing industry, we can provide you with all products related to greenhouse agriculture.

4. When is the delivery time?

Depending on your greenhouse size and system, the delivery time is usually 10-20 days
