Water Curtain Greenhouse Cooling System / Fan And Pad Cooling System In Greenhouse
Negotiation
MOQ
USD 50-200/set
Price
Water Curtain Greenhouse Cooling System / Fan And Pad Cooling System In Greenhouse
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: BAOLIDA
Certification: ISO9001:2008
Model Number: BAOLIDA-09
High Light:

fan pad cooling system

,

evaporative pad cooling system

Payment & Shipping Terms
Packaging Details: STANDARD GREENHOUSE PACKAGE
Delivery Time: 7-10 DAYS
Payment Terms: MoneyGram, Western Union, T/T, D/P, D/A
Supply Ability: 30000 SETS A MONTH
Specifications
Type: Cooling
Usage: For Agriculture
Application: Greenhouse
Function: Plant Growing
Shelf Life: 10 Years
Oem: Available
Color: Brown Green Black Red Blue
Height: 1500/1800/2000mm Or Customized
Product Type: Greenhouse Water Cooling Pad
Thcikness: 100/150mm
Product Description

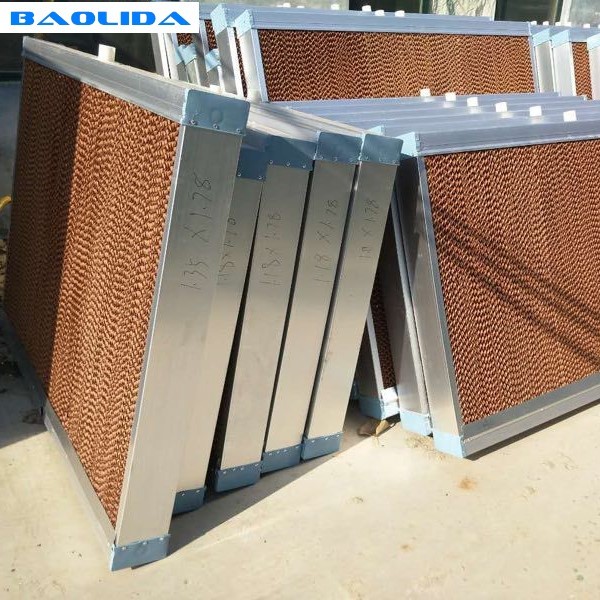

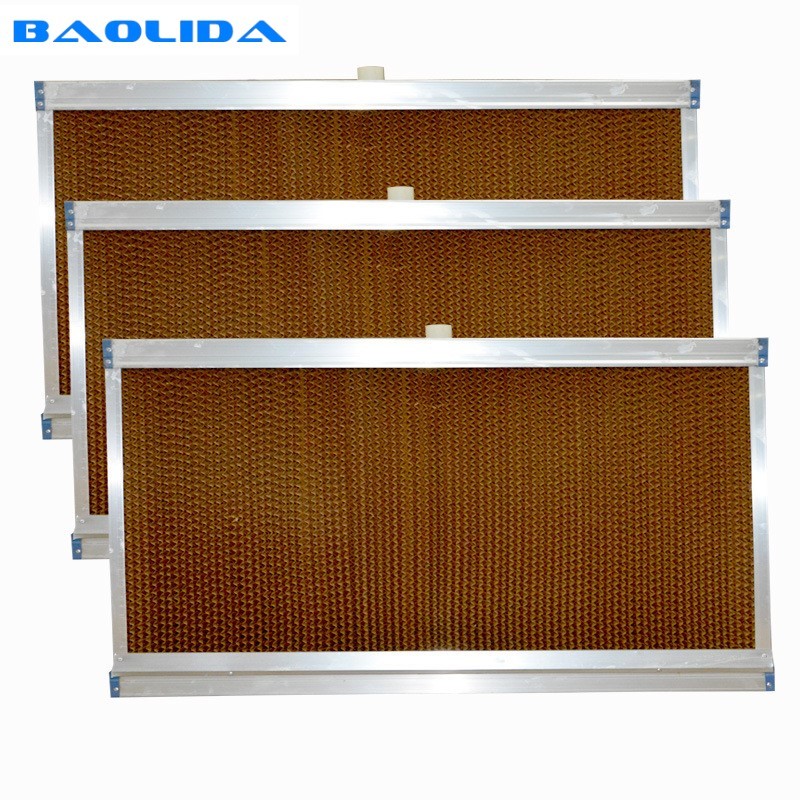

Wet Curtain Cooling Pad Wall And Water Curtain For Cooling System





Evaporative cooling pad features

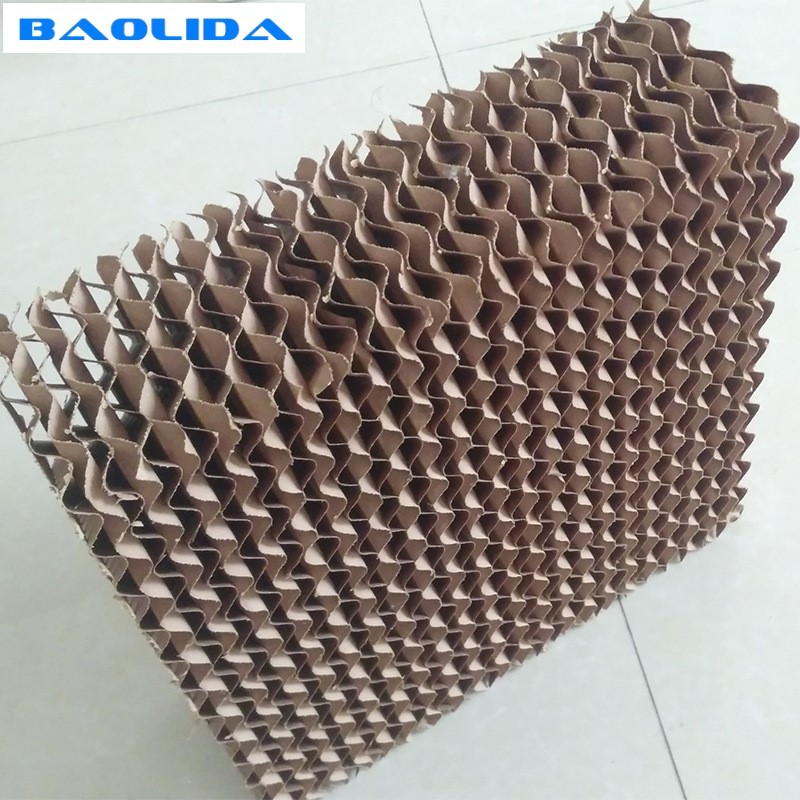

1. Corrugated paper with the spatial crossing linking technology, high absorbability, high water resistant, anti-mildew and long service life.
2. Large evaporation area, cooling efficiency as high as 80%.
3. The product absorbs water naturally, with fast speed of pervasion and lasting effectiveness. One drop of water can diffuse within 4~5 seconds. The natural absorption height is 60~70mm/5minutes, as 200mm/1.5 hours, having reached international standard.
4. Galvanized sheet and aluminum alloy optional as frame.



  Pad 7090 Pad 5090
H (mm) 1500, 1800, 2000 1500, 1800, 2000
W (mm) 600, 300 600,300
D (mm) 100, 150, 200,300 100,150,200,300
h (mm) 7 5
α (*) 45 45
β (*) 45 45







Working Principle


When the water cross the cooling pad, the water become water film on the surface of the pad. The water film exchange heat with the passing air and evaporate into the air. As the principle of evaporative cooling, controlling the temperature and humidity through modifying humidifying volume and the ventilation size.
Evaporative cooling utilizes the basics of air and water to produce a very significant temperature drop. Evaporative cooling can also create a desired amount of humidification to increase efficiency of machinery or comfort in buildings. Because of its effectiveness in cooling and humidification, evaporative cooling is the primary choice in such industries as: gas turbine, greenhouse, livestock farming, automobile painting, residential cooling, and commercial building climate control.
An evaporative cooling system consists of pads which are designed to absorb and hold water and give maximum surface area for air and water contact. As air passes through the pads the natural evaporation of water creates cooled and humidified air.



Water Curtain Greenhouse Cooling System / Fan And Pad Cooling System In Greenhouse 0Water Curtain Greenhouse Cooling System / Fan And Pad Cooling System In Greenhouse 1Water Curtain Greenhouse Cooling System / Fan And Pad Cooling System In Greenhouse 2

Water Curtain Greenhouse Cooling System / Fan And Pad Cooling System In Greenhouse 3

Water Curtain Greenhouse Cooling System / Fan And Pad Cooling System In Greenhouse 4Water Curtain Greenhouse Cooling System / Fan And Pad Cooling System In Greenhouse 5
Water Curtain Greenhouse Cooling System / Fan And Pad Cooling System In Greenhouse 6Water Curtain Greenhouse Cooling System / Fan And Pad Cooling System In Greenhouse 7
Water Curtain Greenhouse Cooling System / Fan And Pad Cooling System In Greenhouse 8
Service
1. We can design the most suitable greenhouse for you according to your local climate and your needs.
2. We will give you a detailed quotation, so that you can clearly see the composition of the price.
3. We provide a 5-year warranty service for steel pipes and a 3-year warranty service for covering materials.
4. we have a professional construction design team, can give you the production of detailed construction drawings, at the same time to give you remote technical guidance.
5. We also cooperate with many agricultural factories to help you with one-stop shopping.
