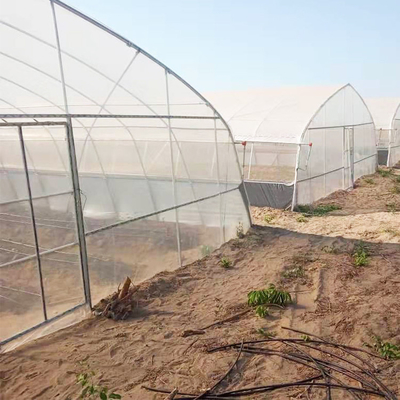

Plastic Film Covering Shed Agricultural 8M Single Span High Tunnel Greenhouse
Introduction
Plastic film greenhouses have many properties that make them one of the most useful and practical greenhouses. Its low cost, large film size, ease to attach and good light transmission are characteristics that have helped to expand its use so that now it is the most common covering. For people who just want to start their first greenhouse business, plastic film greenhouse would definitely be their first best choice.
Parameter
| Item | Parameter | Remark |
| Product model | CD1-0 | Ventilation system and shading system can be added. |
| Standard size | W 8m, L 10m-60m | Accept Customized |
| Wall height | 1.5 meters | Accept Customized |
| Arch | φ25mm*1.5mm | Can be changed |
| wall column | φ25mm*1.5mm | Can be changed |
| Covering material | 80 / 150 micron | Can be changed |
Greenhouse frame
The greenhouse frame is made of materials of galvanized steel, connected by screws, bolts or suitable connectors. Door, gutters, etc. can be equipped and the roof can be pitched roof (supported by rectangular tubes) or arched roof (supported by circular tubes). The uprights of the greenhouse are made of rectangular tubes.
Covering material
1. Film is available on the roof or the side of the greenhouse, the thickness of which can be 4mm or 5mm.
2. PC(Poly-carbonate) sheet, hard and durable, anti-ultraviolet, can be available on the roof and the side of the greenhouse, the thickness of which is, for example, 8mm or 10mm.
3. Film, heat-preserving and durable, can be available on the roof and side of the greenhouse, the thickness of which can be 8mm, 10mm, 12mm, 15mm, 20mm, etc. And more layers of the film can be used in the greenhouse.
Accessary
The primary function of the system is to cool the heat in summer; the sun would diffuse into the greenhouse to ensure that crops from strong light burns. Due to blocking a significant amount of light into the room, it can effectively reduce the accumulation of heat in the greenhouse, dropping 4°C to 6°Cof room temperature.
Features:
Anti-ultraviolet, anti-hail, reduce the damage to the top of the greenhouse.
According to the different crops, use different shade curtains to meet the needs of various plants under the sunlight.
In summer, the shade curtain can efficiently reflect part of the sunlight, drop room temperature 4 to 6 degrees Celsius.
|
Type
|
External Shading System | Internal Shading System |
| Shade Curtain Material |
PE |
Aluminum Foil |
| Mesh |
60/70/75/80
|
55/65 |
