200 Micron PE Film Tunnel Greenhouse For Vegetable Or Flower Growing
Tunnel Greenhouse Introduction:
This greenhouse is simply installed, is framed by galvanized tubes. There is no upright column in the greenhouse, so it’s strengthening the lighting effects and good for the mechanical operations, promoting the land-utilizing ability.
Tunnel Greenhouse Structure:
Tunnel Greenhouse Feature:
A simple and practical protection ground cultivation facility is widely used in countries around the world due to its easy construction, convenient use and low investment. The use of bamboo wood, steel and other materials, and cover plastic film, arched shed, for cultivation of vegetables, can be early or delayed supply, increase production per unit area, is conducive to the prevention of natural disasters, especially in the northern region in early spring and late autumn off season Supply fresh vegetables.
Tunnel Greenhouse Structure Composition:
1) Door:There are one manual sliding door in the middle of the two sides of the greenhouse, a total of two, the door size is 1500mm × 2000mm (width × height), the door is 25 × 1.5mm hot-dip galvanized square tube, chute, card slot and door bag The corners are assembled.
2) Window opening system:

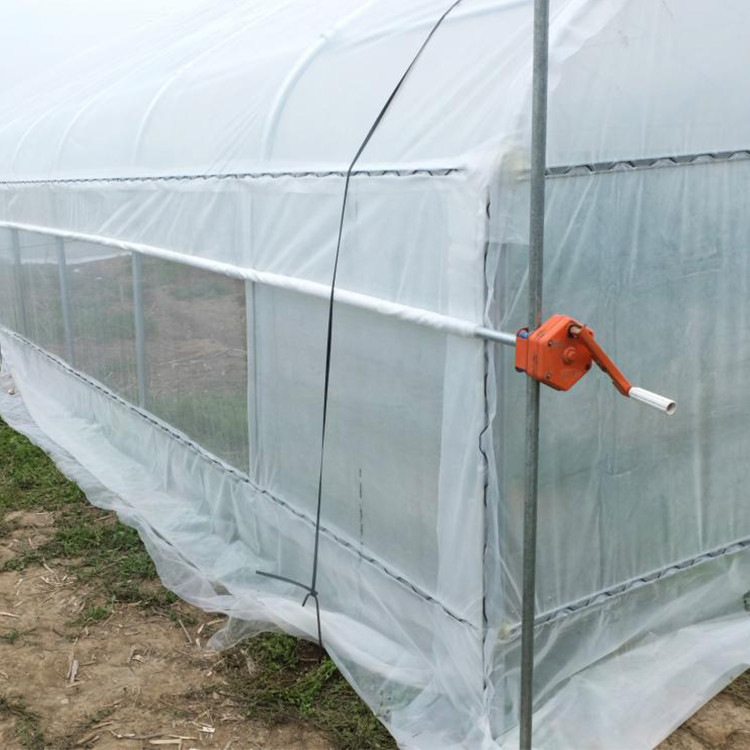

The manual film winding window ventilation mechanism is adopted, and one manual film winder is arranged on both sides of the greenhouse, and the rocking rod is made of 25×1.5 hot-dip galvanized steel pipe. The windows are closed with a 40 mesh insect net.
3), overage system:
The whole shed is covered with high-quality 0.10mm Greek PEP film, with a warranty of 2 years and a service life of 5 years. It is fastened with card slots and circlips. The Greek PEP membrane adopts three-layer co-extrusion technology, which has the functions of eliminating fog, preventing dripping, anti-aging, etc. Its light transmittance has obvious advantages compared with domestic agricultural film.
Tunnel Greenhouse Anti-insect Net:
In order to protect vegetables and crops, we decided to use insect nets on the sides or top of the roof. Insect net is a kind of net fabric made by adding anti-aging, anti-ultraviolet and other chemical additives. It has high tensile strength, heat resistance, water resistance, corrosion resistance and aging resistance. It is non-toxic, tasteless, and easy to handle waste.
|Product Type||Tunnel greenhouse|
|Covering Martial||150 or 200 micro plastic film|
|Natural Ventilation||Motor driven or manual rolling vents on two sides|
|Optional Systems||Pat&fan cooling system;heating system;shading system;drip irrigation system;fogging system;lighting system;hydroponic system;plants climbing system;weed mat;plant pot;seed tray etc.|
