|Place of Origin:||Sichuan China|
|Minimum Order Quantity:||Negotiation|
|Packaging Details:||Standard package|
|Delivery Time:||7-15days after receiving payment|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||5000000ton/ month|
|Product Name:||UV Resistance Hot Dipped Steel Frame Single Span 10m Tunnel Plastic Greenhouse||Material:||Hot Dipped Galvanized Frame|
|Feature:||Easy To Assemble||Key Word:||Hot Digged Steel Frame|
|Advantage:||Eco Friendly||Length:||10-100m By Client's Request|
|Covering:||100/120/150/200micro PE Film||Ventilation System:||Side Ventilation With Insect Net|
|Type:||Single Span||Function:||Structure Is Flexible, Strong Applicability And Wide Applicable Scope|
Hot Dipped Tunnel Plastic Greenhouse,
10m Tunnel Plastic Greenhouse

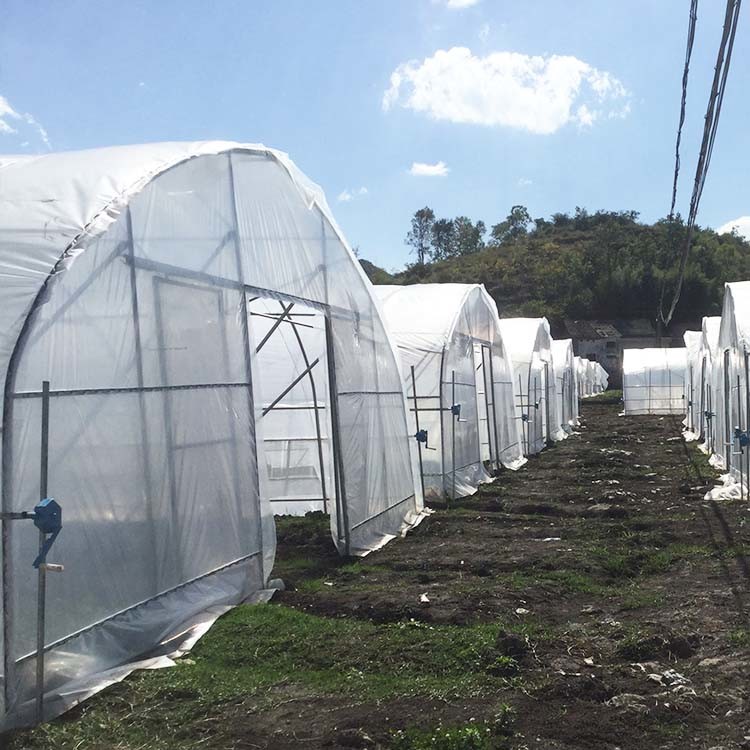

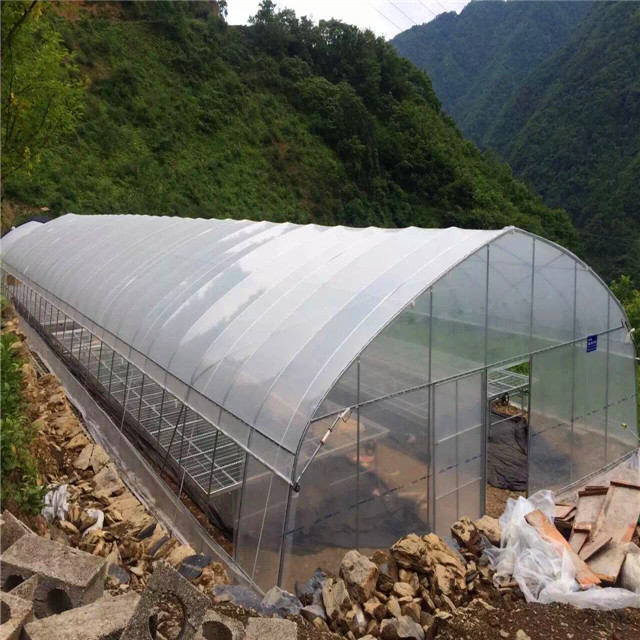

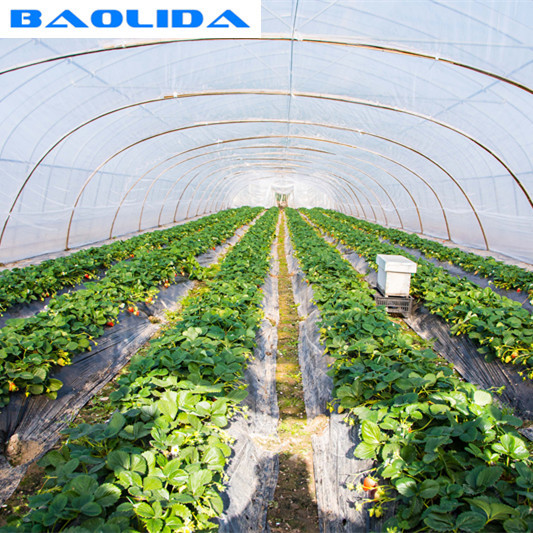

UV Resistance Hot Dipped Steel Frame Single Span 10m Tunnel Plastic Greenhouse
Tunnel Greenhouse Overview:
Our greenhouse is the one with the simplest structure, lowest cost and most convenient installation. The frame is the core structure of the tunnel greenhouse. It includes grooves, doors, ridges, arches, end posts, etc. A single-span greenhouse is usually between 6 meters and 12 meters. The advantages of our products are: maximum use of land area, simple installation, strong durability and long service life. It is also very convenient for disassembly and transportation. Therefore, the cost will be the lowest and most cost-effective.
Tunnel Greenhouse Composition:
Hot-dip galvanized steel pipes are connected with suitable joints, and all steel pipes are rust-proofed.
Film: Poly, PE, PVC film, single layer or double layer, different thickness according to design.
Shading: According to the design, whether there is an internal and external shading system.
Irrigation: sprinkler irrigation or drip irrigation.
Tunnel Greenhouse Specification:
|Covering material||PE/PO film (0.08 / 0.10 / 0.12 / 0.15 / 0.2mm)|
|Basic equipment||Framework , windows on both sides|
|Supporting system (choose according to your needs)||Cooling system & irrigation system|
|The arch distance||1m~1.2m|
|Number of ridge||1~3|
|Foundation||Insert the tube into the ground 40~50 cm|
Tunnel Greenhouse Covering:
Greenhouse films, also known as agricultural plastic, poly-film and greenhouse plastic, are ideal for your single and double layer greenhouse applications.
Made of durable low density polyethylene material.
Superior clarity, strength and toughness, weather-resistant and tear-proof.
Provides higher light transmission for plant photosynthesis.
Tough polyethylene unfolds easily and last for a long time.
UV resistant for prolonged sun exposure and creates an optimum greenhouse environment.
Protect plants and crops from the bad weather & enjoy longer growing seasons.

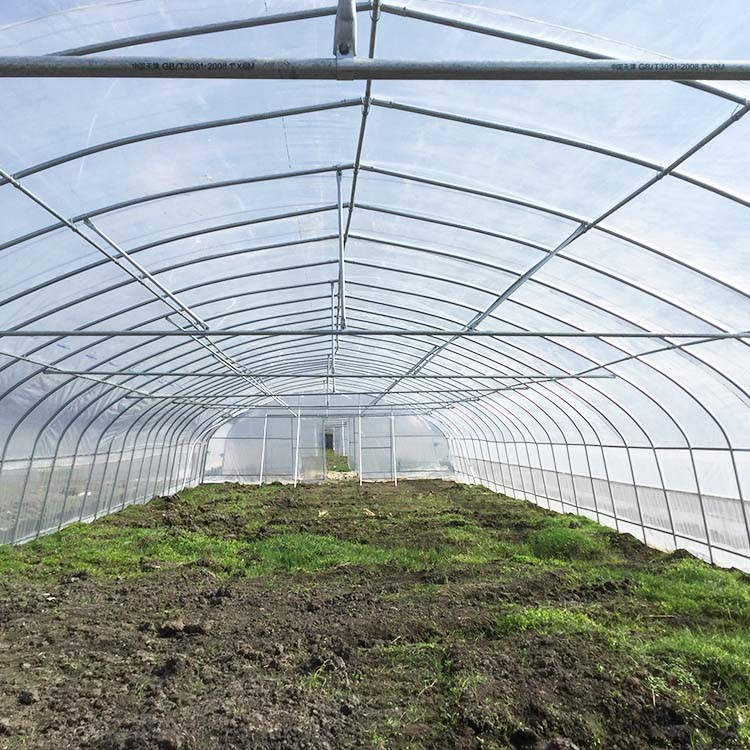

Tunnel Greenhouse Framework:
Tunnel Greenhouse Advantage:
The advantage lies in the maximum use of the land area, simple installation, strong durability and long service life. In addition ,it is very convenient to disassemble , install and transport .So the cost is the lowest, but the most cost-effective one.
