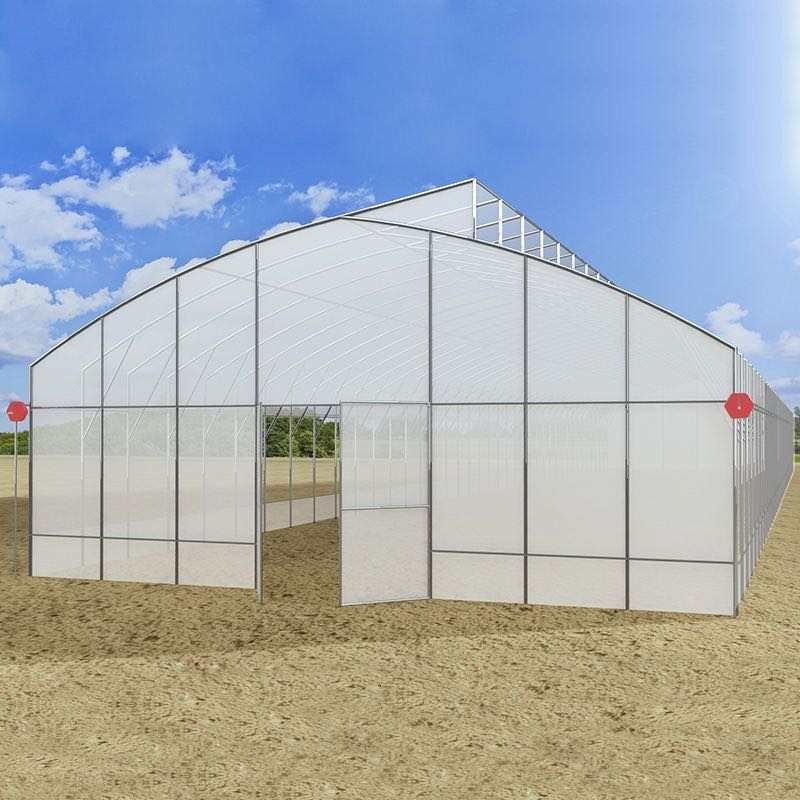

10m Width Anti-Dripping Plastic Film Greenhouse For Tomato
Plastic Film Greenhouse Product describe:
10m width Anti-dripping plastic film greenhouse is a wide span,the rain can drip easily,Will not adhere to the film, increasing the service life of the greenhouse.it's suitable for plant tomatoes.there is plastic film greenhouse advatages:
♦ Thermal insulation,
♦ Anti-dripping,
♦ High intensity,
♦ high light transmittance,
♦ enhance photosynthesis,
♦ dust-proof,
♦ super aging resistance,
♦ pesticide resistance.
| Dimension | Related data |
| Length | 30-50m |
| Width | 10m |
| Top height | 4m |
| Shoulder height | 2m |
| Arch spacing | 2m |
| Arch diameter | φ48mm |
| Arch thickness | 1.5mm |
| Covering material | 150mironPE film, |
| Tube material | Hot dip galvanized steel tubu |
Structure introduce

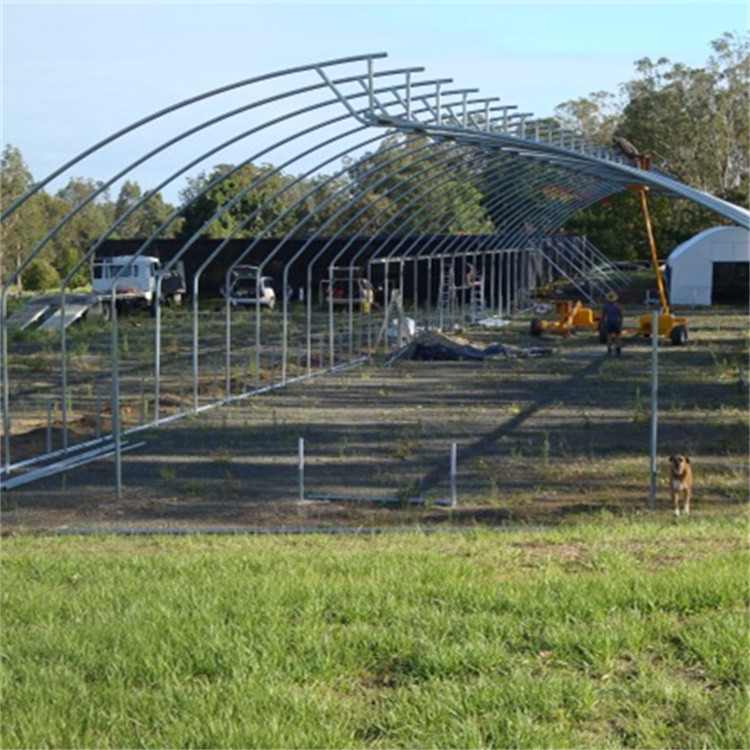

The overall frame structure of the tunnel structure greenhouse is composed of two arch sections, and the left and right sections of the arch are inserted underground 30-50 cm. This structure ensures the stability of the greenhouse structure, reduces the cost of artificial ventilation on both sides of the greenhouse, to ensure the air circulation when the greenhouse is opened Ventilated area set up 40 mesh net, which can effectively prevent harmful organisms into the greenhouse, crop safety, maintain the normal production of crops If used in the greenhouses are used to breed, then you will need to higher requirements, design is the same, but the basic skeleton material size and thickness all need a larger size, heat preservation material such as cover material basically is in a quilt cover There are two types of ventilation: natural ventilation and forced ventilation Forced ventilation usually requires the installation of a cooling system.
Covering Material
PE non-drop film using non-ionic surfactant, has excellent anti-fogging performance, shelf life 1-5 years, and its anti-aging ability is basically synchronous PE film is made of polyethylene, it not only has good light transmittance good insulation performance good droplet resistance good weather resistance and other excellent characteristics, but also has a long service life Our standard film thicknesses are 80 microns, 150 microns and 200 microns. If you need other thicknesses, we can also provide other types of film also available. You can choose the covering material to your satisfaction.

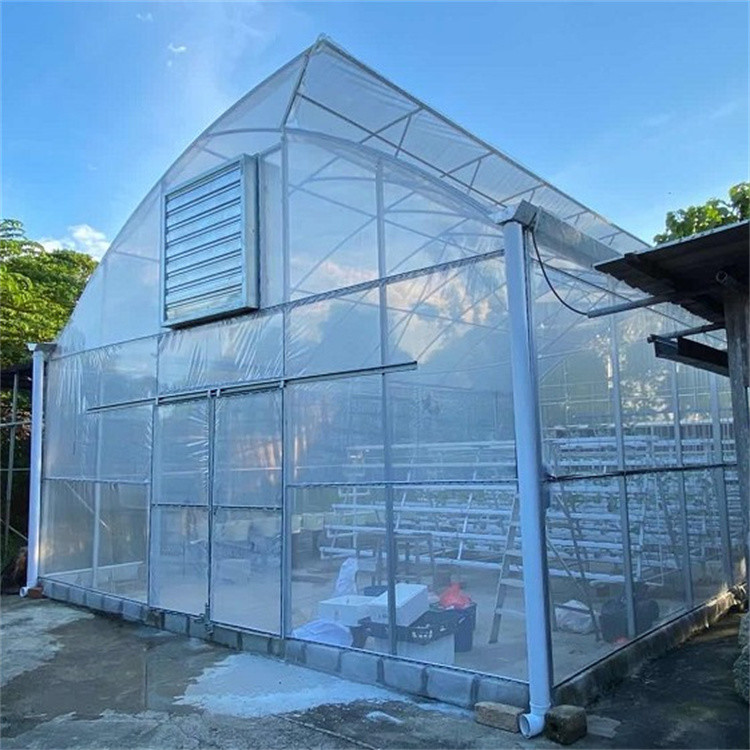

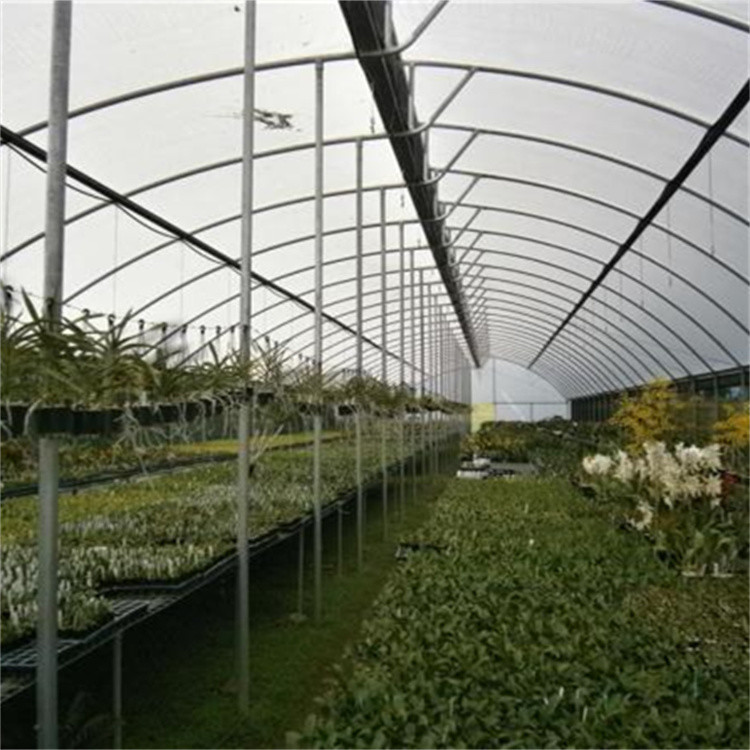

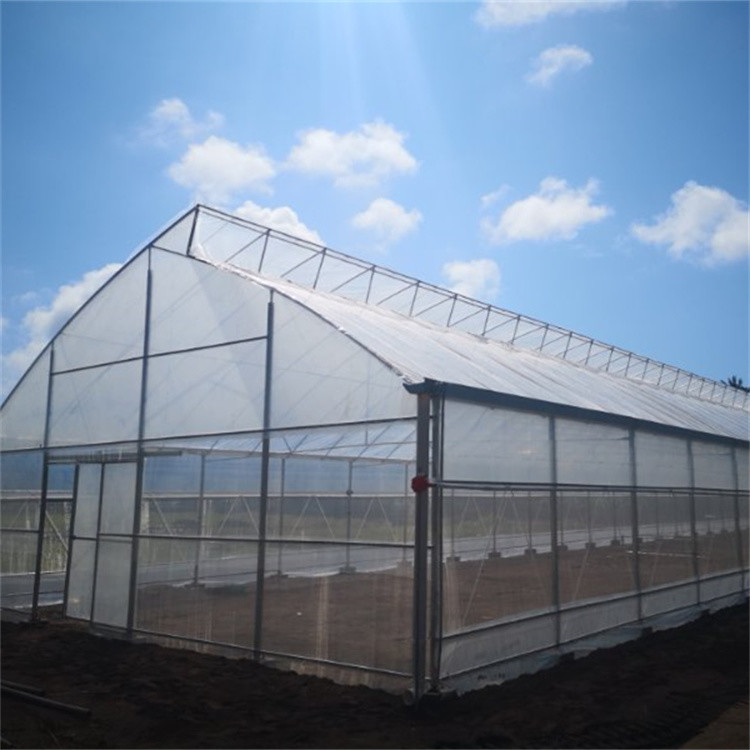

Examples of pictures
Transportation
Production
Certificate
Customer visit and praise
Service
1. We can design the most suitable greenhouse for you according to your local climate and your needs.
2. We will give you a detailed quotation, so that you can clearly see the composition of the price.
3. We provide a 5-year warranty service for steel pipes and a 3-year warranty service for covering materials.
4. we have a professional construction design team, can give you the production of detailed construction drawings, at the same time to give you remote technical guidance.
5. We also cooperate with many agricultural factories to help you with one-stop shopping.
FAQ
1. When can I get the price?
Usually within 24 hours after we get your inquiry. If you are urgent to get the price, please call me or tell me in the email.
2. Can you accept our own design, logo and pattern?
We can produce it according to your design.
3. Are you manufacturer or Trading company?
We are greenhouse manufacturer in ChengDu China,We are greenhouse manufacturing, and We also welcome you to visit our factory.
4. When can I got the goods?
Produce time is within 15days, and shipping is usually 20-35days.
5. What is your best price?
The same style of greenhouse can be used in different thickness of steel, and different thickness of film. These will have a direct impact on greenhouse prices. And the larger the area, the lower the unit price will be
