Polyethylene Film Tunnel Steel Frame Greenhouse Single Span Ground Inserted

USD3-6/sqm
Price
Polyethylene Film Tunnel Steel Frame Greenhouse Single Span Ground Inserted
Features Gallery Product Description Request A Quote
Features
Specifications
Produce Time: Within 15days
Shipping Method: Rail Or Sea
Technicsl: Aluminum Plated Zinc Steel Tube
MOQ: NO MOQ
Width: 8-10m A Span
Top Height: Standard 2.8m (accept Customized)
Shoulder Height: Standard 1.5m (accept Customized)
Length: Accept Customized
Factory Address: Chengdu China
Range Of Application: Agricultural Cultivation And Breeding
High Light:

Ground Inserted Tunnel Steel Frame Greenhouse

,

Polyethylene Film Steel Frame Greenhouse

,

8m Single Span Greenhouse

Basic Infomation
Place of Origin: Chengdu China
Brand Name: BLD
Certification: ISO9001:2008
Model Number: CD1-1
Payment & Shipping Terms
Packaging Details: The parts are packed in cartons, and the steel pipes are packed in conventional ways.
Delivery Time: 15 days
Payment Terms: Western Union, T/T
Supply Ability: 50000000sqm per month
Product Description

Ground-Inserted Polyethylene Film Covered Non-Welding Steel Frame Construction Single Span Tunnel Greenhouse



Description

All of its components are aluminum zinc plated, which is the most basic greenhouse structure and can be used in most climates. Therefore, it is the most popular style in agricultural production. It can grow almost all low-yield crops, such as common vegetables and fruits, fungi, etc. It is very easy to install and disassemble. You can install it yourself or hire a construction team to install it.



Structure introduce

The greenhouse uses a tunnel structure, with arches on both sides inserted 50 cm deep into the ground. It not only ensures the stability of the greenhouse, but also reduces the input cost. It is equipped with manual ventilation device on both sides, effectively ensure the air circulation, and on both sides of the ventilation is also equipped with insect-proof net, can effectively prevent harmful organisms from entering.



Covering Material

It is the use of greenhouse special polyethylene drip-free film, this film has good light transmission, good heat preservation, good drip-free, good weather resistance, long life and other excellent characteristics. It effectively blocks UV rays and reduces UV passage through the shed, thereby inhibiting the formation of ascomycetes and conidia in the sclerotia.



Parameter

Item Parameter Remark
Product model CD1-0

Ventilation system and shading system can be added.

Standard size W 8m, L 10m-60m Accept Customized
Wall height 1.5 meters Accept Customized
Arch φ25mm*1.5mm Can be changed
wall column φ25mm*1.5mm Can be changed
Covering material 80 / 150 micron Can be changed

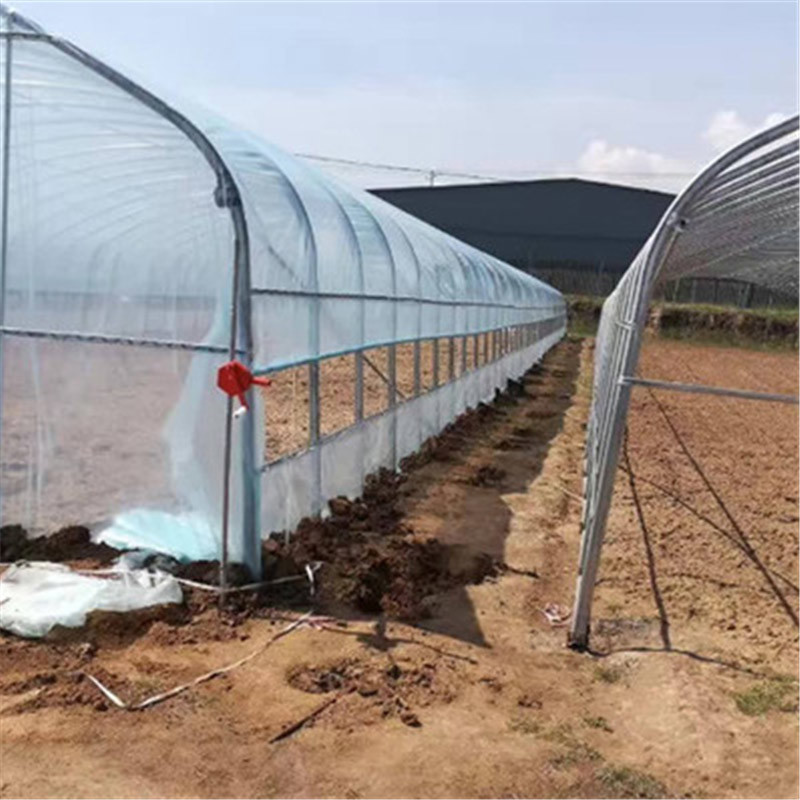

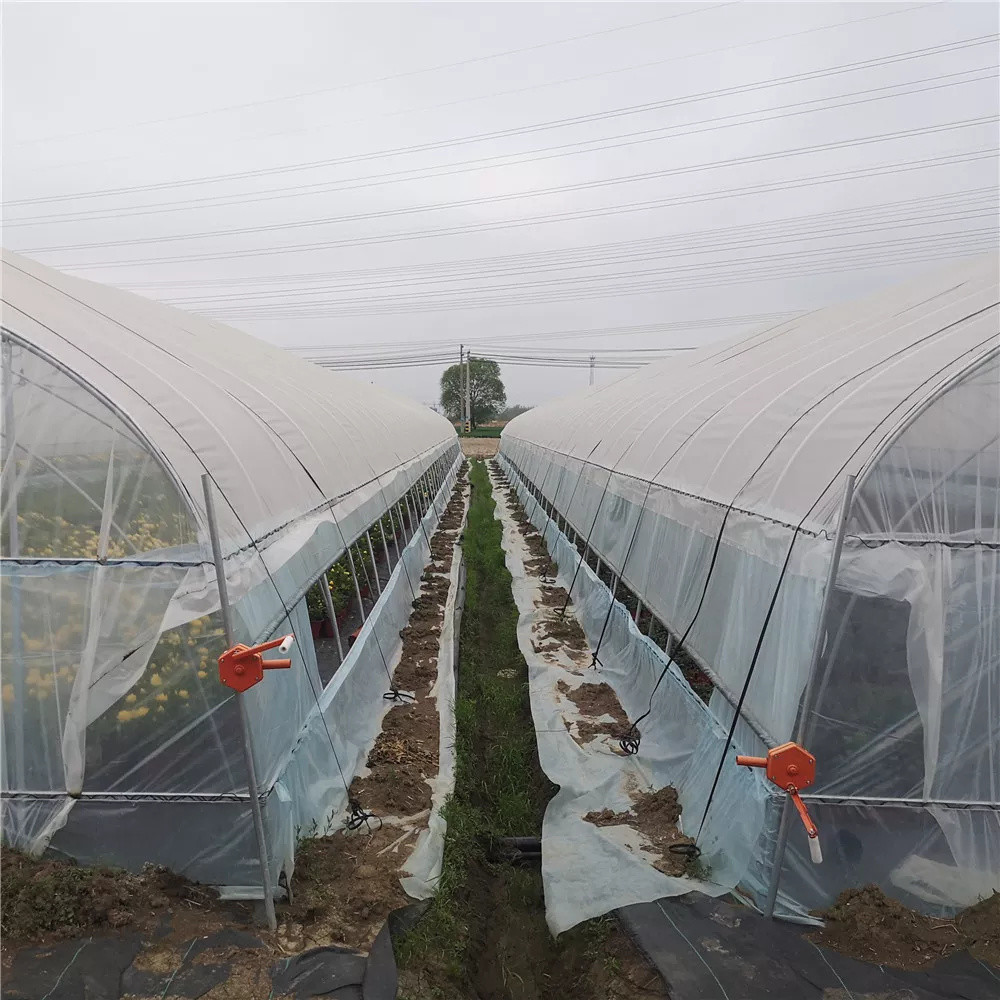

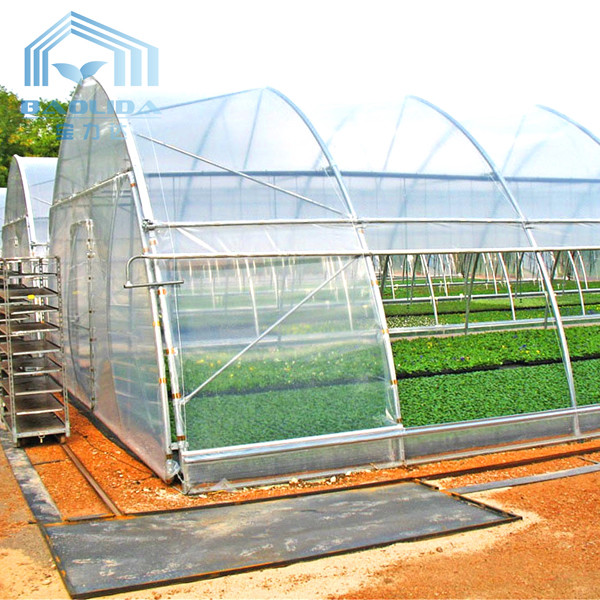

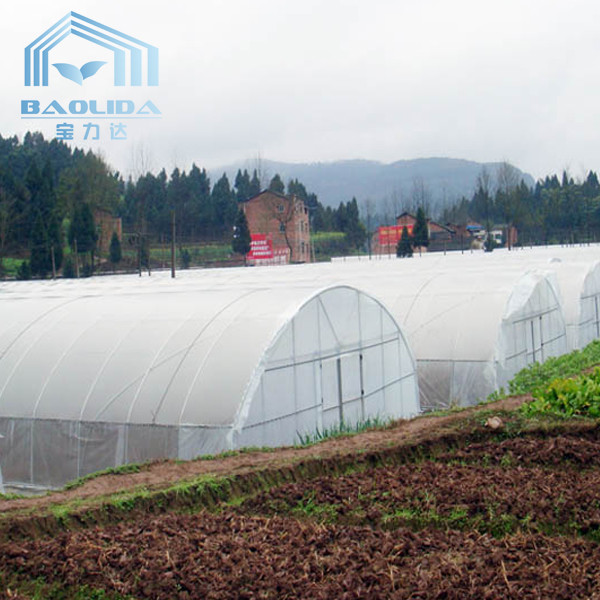

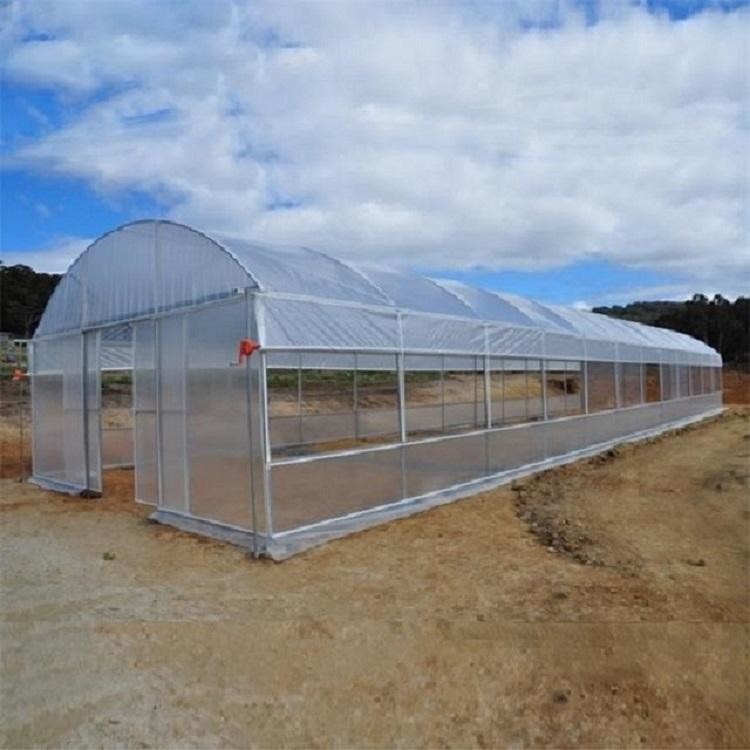

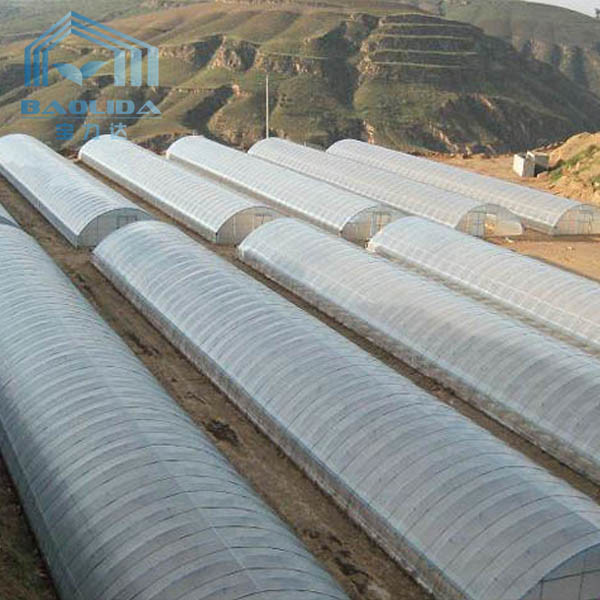

Examples of pictures

Polyethylene Film Tunnel Steel Frame Greenhouse Single Span Ground Inserted 0

Polyethylene Film Tunnel Steel Frame Greenhouse Single Span Ground Inserted 1

Polyethylene Film Tunnel Steel Frame Greenhouse Single Span Ground Inserted 2

Polyethylene Film Tunnel Steel Frame Greenhouse Single Span Ground Inserted 3

Polyethylene Film Tunnel Steel Frame Greenhouse Single Span Ground Inserted 4

Polyethylene Film Tunnel Steel Frame Greenhouse Single Span Ground Inserted 5

Polyethylene Film Tunnel Steel Frame Greenhouse Single Span Ground Inserted 6



Polyethylene Film Tunnel Steel Frame Greenhouse Single Span Ground Inserted 7Polyethylene Film Tunnel Steel Frame Greenhouse Single Span Ground Inserted 8Polyethylene Film Tunnel Steel Frame Greenhouse Single Span Ground Inserted 9

Polyethylene Film Tunnel Steel Frame Greenhouse Single Span Ground Inserted 10Polyethylene Film Tunnel Steel Frame Greenhouse Single Span Ground Inserted 11



Polyethylene Film Tunnel Steel Frame Greenhouse Single Span Ground Inserted 12

1. When can I get the price?
Usually within 24 hours after we get your inquiry. If you are urgent to get the price, please call me or tell me in the email.
2. Can you accept our own design, logo, and pattern?
We can produce it according to your design.
3. Are you a manufacturer or Trading company?
We are a greenhouse manufacturer in Chengdu China, are greenhouse manufacturing, and We also welcome you to visit our factory.
4. When can I get the goods?
Produce time is within 15days, and shipping is usually 20-35days.
5. What is your best price?
The same style of greenhouse can be used in different thicknesses of steel, and different thicknesses of the film. These will have a direct impact on greenhouse prices. And the larger the area, the lower the unit price will be Spec.



Service
1. We can design the most suitable greenhouse for you according to your local climate and your needs.
2. We will give you a detailed quotation, so that you can clearly see the composition of the price.
3. We provide a 5-year warranty service for steel pipes and a 3-year warranty service for covering materials.
4. we have a professional construction design team, can give you the production of detailed construction drawings, at the same time to give you remote technical guidance.
5. We also cooperate with many agricultural factories to help you with one-stop shopping.
