Gothic High Tunnel Vegetable Film Hydroponics Single-Span Greenhouse Construction
Negotiation
MOQ
4.59-9.99
Price
Gothic High Tunnel Vegetable Film Hydroponics Single-Span Greenhouse Construction
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Sichuan,China
Brand Name: Baolida
Certification: ISO9001:2008
Model Number: BLD-TG-202113
High Light:

Vegetable Film Hydroponics Greenhouse

,

Multispan Dome Hydroponics Greenhouse

,

Anti UV Gothic Greenhouse Construction

Payment & Shipping Terms
Packaging Details: Standard package
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500000 square meters per month
Specifications
Features: High Cost Performance,easy To Install
Product Name: Gothic High Tunnel Vegetable Film Hydroponics Single-Span Greenhouse Construction
Size: Large
Section: 4m/8m
Type: Agricultural Greenhouses
Span: 8-12m
Model Number: Customized
Film Features: Anti-UV,long Using Life
Application: Vegetable/flower/fruit
Covering: Plastic Film
Product Description

Gothic High Tunnel Vegetable Film Hydroponics Single-Span Greenhouse Construction

Gothic High Tunnel Vegetable Film Hydroponics Single-Span Greenhouse Construction 0

Main Features:

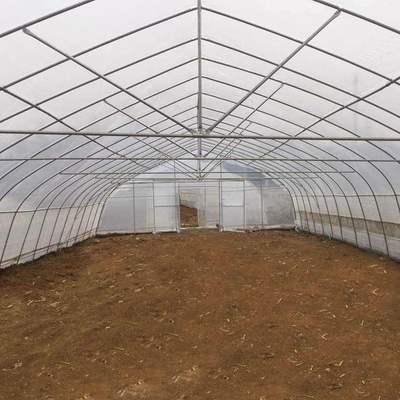

Single-span film greenhouse is applicated to the cultivation of vegetables and other economic crops,effectively prevent natural disasters and improve unit area output and income.With advantage of easy assembly,lower investment and high output.A tunnel plastic greenhouse is a simplest structure greenhouse with the lowest cost. It's suitable for planting cash crops such as vegetables, which can effectively prevent natural disasters and increase yield and income per unit area. It has the advantages of simple assembly, low investment and high output. It consists of a hot-dip galvanized tube with a single film as the covering material. The frame structure is simple, low cost and easy to install. Manual side wall rewinder is usually provided for good ventilation and cooling systems, depending on climatic conditions. It consists of one or more hot-dip galvanized pipes with a series of steel tubes in a series of arched structures made of galvanized cylinders that require no concrete foundation and can be easily transported and installed. Its shape allows the interior to hold more air and is resistant to rain and insects. The skeleton material of the greenhouse is galvanized steel pipe connected by screws, bolts or suitable connectors.

SPEC:

Frame 32X1.5MM hot-dip galvanized steel pipe
cover material 200 micron/150 micron plastic film /100 micron
Side ventilation : with manual roll-up unit on the side
Height: 3.5m
Size can be: 7x20m,7x25m, 8x30m .....your size can be customized
The reinforced structure with lattice arches and squared columns offers extensive guarantees thanks to the resistance against wind, snow, and at the same time allows hanging support to various types of cultivation.



Dimension Related data
Length 60m or customized
Width 8m or customized
Top height 2.8m-4m
Shoulder height 1.5m-2.5m
Arch spacing 1.33m or customized
Arch diameter φ32mm
Arch thickness 1.5mm
Covering material PE film,
Basic equipment Framework,door,insect net,film
Foundation Insert the arch into the ground
Tube material Hot dip galvanized steel tube
Thickness of PE film 150micron




Gothic High Tunnel Vegetable Film Hydroponics Single-Span Greenhouse Construction 1Gothic High Tunnel Vegetable Film Hydroponics Single-Span Greenhouse Construction 2Gothic High Tunnel Vegetable Film Hydroponics Single-Span Greenhouse Construction 3Gothic High Tunnel Vegetable Film Hydroponics Single-Span Greenhouse Construction 4



Gothic High Tunnel Vegetable Film Hydroponics Single-Span Greenhouse Construction 5

Our services

1. Reliable design: a strong and creative design, research and development team to design the greenhouse according to the local climate and geographical conditions.

2. Greenhouse installation: engineers can be sent to your country for greenhouse installation.

3. Quality assurance: we have strict quality control and mature technology, our products have achieved

National and industry standards. All our exports will be strictly inspected before shipment.

4. One-to-one 24-hour online service: for any questions, please contact us.

5. After-sales service: if there is any quality problem during the warranty period, we will assume the responsibility and provide on-site service as needed.

Gothic High Tunnel Vegetable Film Hydroponics Single-Span Greenhouse Construction 6Gothic High Tunnel Vegetable Film Hydroponics Single-Span Greenhouse Construction 7
