Farming Singlespan Tunnel Greenhouse With Irrigation And Hydroponic Growing System

Basic Information
Place of Origin: Chengdu China
Brand Name: BLD
Certification: ISO9001:2008
Model Number: CD1-0.1
Minimum Order Quantity: 0
Packaging Details: The parts are packed in cartons, and the steel pipes are packed in conventional ways.
Delivery Time: 15 days
Payment Terms: Western Union, T/T
Supply Ability: 50000000sqm per month
Produce Time: Within 15days Shipping Method: By Sea
Technicsl: Hot Aluminum Zinc Plating MOQ: NO MOQ
Width: 8-10m A Span Top Height: Standard 2.8m (accept Customized)
Shoulder Height: Standard 1.5m (accept Customized) Length: Accept Customized
High Light:

Farming Singlespan Tunnel Greenhouse

,

Hydroponic Growing System Tunnel Greenhouse

,

10m Single Span Greenhouse

Farming Singlespan/Tunnel Greenhouse With Irrigation And Hydroponic Growing System


Description

All the parts of our greenhouse are made of hot-aluminized galvanized steel. It is popular all over the world because of its simple, classic greenhouse structure. It applies not only to most climates and regions, but also to most common crops. If you also grow lower crops such as peppers, kale, watermelons, strawberries, tomatoes and cucumbers, this greenhouse is the best choice for you.

Structure introduce

The whole greenhouse adopts tunnel structure. Both sides of the arch need to be inserted about 30-50 cm into the ground. It is buried 30-50cm underground to ensure structural stability and also to save costs. Both sides of the greenhouse are equipped with manual ventilation devices, which can effectively ensure air circulation. There are 40 mesh nets inside the ventilation area, which can effectively prevent harmful insects and organisms from entering the greenhouse and protect the crops from pests.

Covering Material

Greenhouse covering material is polyethylene without drip film, this material is not only good light transmittance, good heat preservation performance, good resistance to drip, good weather resistance, long service life. It also effectively blocks uv rays, reducing the amount of harmful UV rays that pass through the greenhouse. Thus, the service life of the film is greatly extended. Our standard film sizes are respectively 80 micron, 150 micron and 200 micron thicknesses, in addition, we can also provide some other thicknesses, you can choose the film you need according to your needs.

Parameter

Item Parameter Remark
Product model CD1-0

Ventilation system and shading system can be added.

Standard size W 8m, L 10m-60m Accept Customized
Wall height 1.5 meters Accept Customized
Arch φ25mm*1.5mm Can be changed
wall column φ25mm*1.5mm Can be changed
Covering material 80 / 150 micron Can be changed

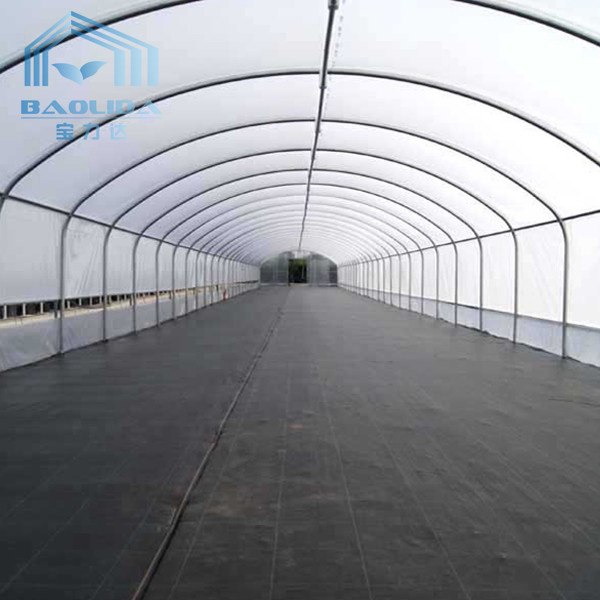

Examples of pictures
Farming Singlespan Tunnel Greenhouse With Irrigation And Hydroponic Growing System 0
Farming Singlespan Tunnel Greenhouse With Irrigation And Hydroponic Growing System 1
Farming Singlespan Tunnel Greenhouse With Irrigation And Hydroponic Growing System 2
Farming Singlespan Tunnel Greenhouse With Irrigation And Hydroponic Growing System 3

Transportation
Farming Singlespan Tunnel Greenhouse With Irrigation And Hydroponic Growing System 4

Production
Farming Singlespan Tunnel Greenhouse With Irrigation And Hydroponic Growing System 5

Certificate
Farming Singlespan Tunnel Greenhouse With Irrigation And Hydroponic Growing System 6

Customer visit and praise
Farming Singlespan Tunnel Greenhouse With Irrigation And Hydroponic Growing System 7

Service
1. We can design the most suitable greenhouse for you according to your local climate and your needs.
2. We will give you a detailed quotation, so that you can clearly see the composition of the price.
3. We provide a 5-year warranty service for steel pipes and a 3-year warranty service for covering materials.
4. we have a professional construction design team, can give you the production of detailed construction drawings, at the same time to give you remote technical guidance.
5. We also cooperate with many agricultural factories to help you with one-stop shopping.


Contact us
Farming Singlespan Tunnel Greenhouse With Irrigation And Hydroponic Growing System 8

FQA
1. When can I get the price?
Usually within 24 hours after we get your inquiry. If you are urgent to get the price, please call me or tell me in the email.
2. Can you accept our own design, logo and pattern?
We can produce it according to your design.
3. Are you manufacturer or Trading company?
We are greenhouse manufacturer in ChengDu China,We are greenhouse manufacturing, and We also welcome you to visit our factory.
4. When can I got the goods?
Produce time is within 15days, and shipping is usually 20-35days.
5. What is your best price?
The same style of greenhouse can be used in different thickness of steel, and different thickness of film. These will have a direct impact on greenhouse prices. And the larger the area, the lower the unit price will be
