Poultry House / Warehouse Cooling System Cooling Pad With Galvanized Frame

Basic Information
Place of Origin: Sichuan,China
Brand Name: Baolida
Certification: ISO9001:2008
Model Number: BLD-CP-202101
Minimum Order Quantity: Negotiation
Price: 20-45
Packaging Details: Standard package
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500000 square meters per month
Size: Large Material: PVC
Type: Multi-Span Agricultural Greenhouses, 7090 Cover Material: Film
Layer: Double Color: Brown
Paper: Wood Pulp Paper Paper Pieces: 85
Glue: Special Waterproof Glue Frame Material: Aluminum/Galvanized/Stainless Steel
Specification: Customized Efficiency: 85%
Angel: 45 Certificate: ISO9001:2008
High Light:

Warehouse Cooling System Cooling Pad

,

Galvanized Frame Cooling System Cooling Pad

,

Poultry House Cooling System Pad

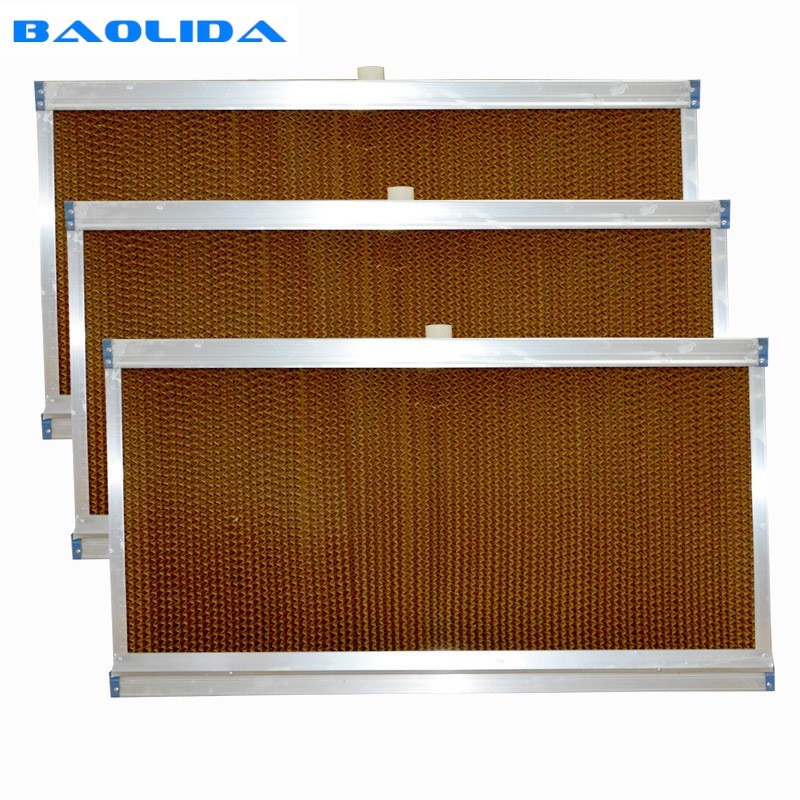

Poultry house /greenhouse/warehouse cooling system cooling pad with Aluminum/Galvanized/Stainless steel frame

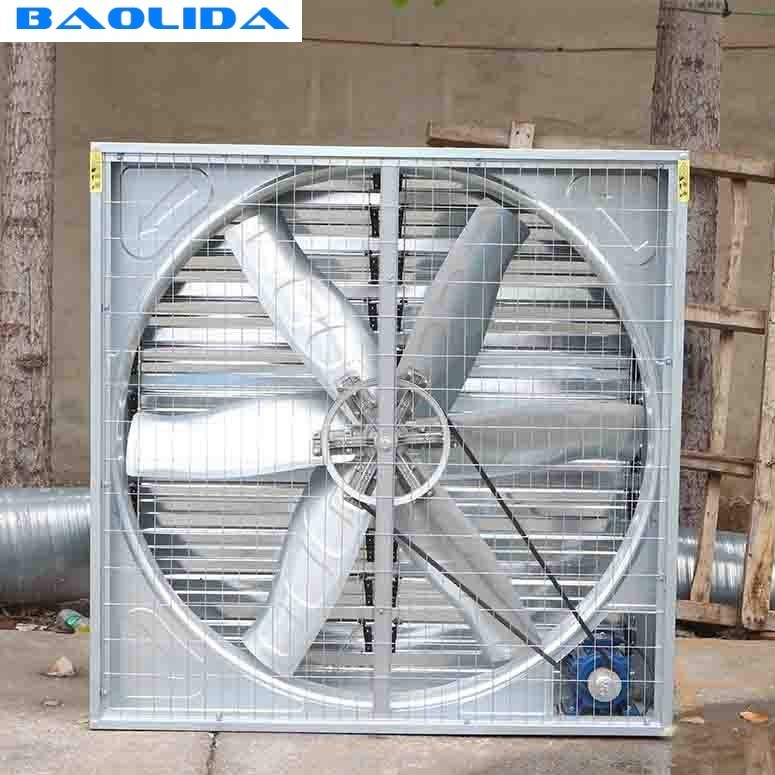

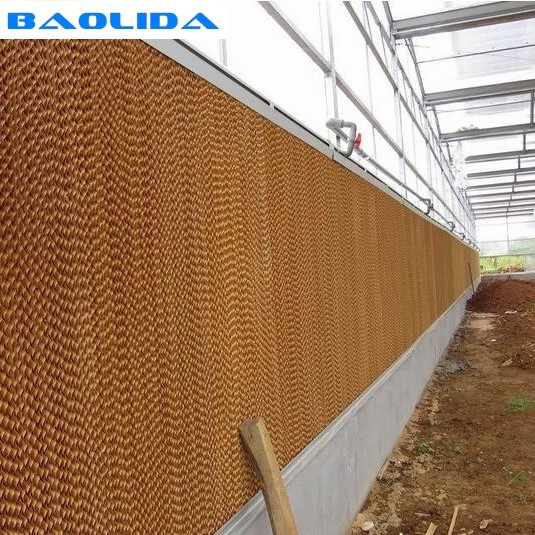

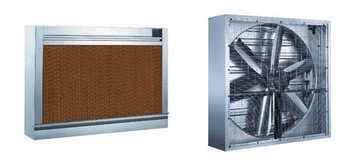

"Exhaust Fan + Cooling Pad" Cooling System - the most economic coolingsystem working principle: In a closed house, the cooling pad and the fan are always oppositely arranged, and the cooling pad is installed on the wall surface facing monsoon wind. When need air cooling, start the fan to force out of air inside the house, forming negative pressure in the house. At the same time, the water pump spray water onto the cooling pad wall, and outdoor air will be inhaled by negative pressure. In the process of inhaling, outside hot air flow through the cracks of cooling pad at a certain speed, leading to evaporation and cooling. Then cold air flow through the house, absorbing heat in the house, and then exhausted out by fan, so as to achieve cooling purpose.

Poultry House / Warehouse Cooling System Cooling Pad With Galvanized Frame 0

Poultry House / Warehouse Cooling System Cooling Pad With Galvanized Frame 1Poultry House / Warehouse Cooling System Cooling Pad With Galvanized Frame 2

Specification 7090 6090 5090
Height (mm) 1000-2000 1000-2000 1000-2000
Width (mm) 300 600 300 600 300 600
Thickness (mm) 100 150 200 300 100 150 200 300 100 150 200 300
Ripple height(mm) 7 6 5
Ripple angle 45*45 30*60 45*45 30*60 45*45 30*60
