Description

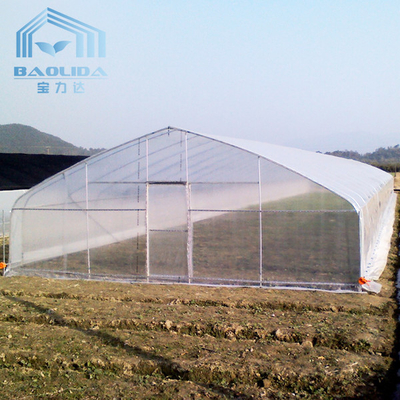

This tunnel greenhouse is one of the cheapest and most affordable forms of greenhouses. Its design takes the form of inserting the greenhouse infrastructure directly into the ground. In some cold regions, greenhouses are used to maintain heat. In hot areas, it is used as a rain shed to grow vegetables, common flowers, edible fungi, etc., to shelter these plants from wind and rain. This kind of greenhouse is suitable for growing almost any kind of crops. It is especially suitable for the cultivation of common agricultural economic crops such as cucumber, watermelon, pepper, cabbage, strawberry, tomato and so on. The main material is made of high-quality hot-dip galvanized steel, and we will customize it according to your region and your actual situation. Therefore, our greenhouses are very popular in many countries and regions in the world. In addition, the greenhouse can also be used with agricultural auxiliary systems such as irrigation systems, hydroponic systems, lighting systems, and seedbed systems to make agricultural production more efficient.
Structure introduce
The design of the tunnel not only ensures the stability of the greenhouse structure, but also does not excessively increase the cost of the greenhouse. Both sides are designed with manual ventilation to allow air circulation in the greenhouse. The ventilation area is equipped with a 40-mesh insect-proof net, which can prevent pests from entering the greenhouse when the side ventilation is turned on, and ensure the safety of crops. If it is used for animal production, the greenhouse framework needs higher standards. While keeping the structure unchanged, only the size of the basic framework material and the thickness of the steel are strengthened. At the same time, in order to keep warm, the outermost layer of the greenhouse needs to be used as an insulation material to prevent heat loss.
Covering Material
PE non-drip film uses non-ionic surfactant technology, which makes it have excellent anti-fog performance. Generally, the shelf life of this material is generally 1-5 years, which is basically the same as its anti-aging ability. This kind of film is made of polyethylene material and has a series of excellent properties such as good light transmission, good insulation, good leakage resistance, and good weather resistance. Our standard film thicknesses are 80 microns, 150 microns and 200 microns. In addition, we can also provide other types of materials and thicknesses.
Parameter
| Item | Parameter | Remark |
| Product model | CD1-0 |
Ventilation system and shading system can be added. |
| Standard size | W 8m, L 10m-60m | Accept Customized |
| Wall height | 1.5 meters | Accept Customized |
| Arch | φ25mm*1.5mm | Can be changed |
| wall column | φ25mm*1.5mm | Can be changed |
| Covering material | 80 / 150 micron | Can be changed |
Examples of pictures
Transportation
Production
Certificate
Customer visit and praise
Service
1. We can design the most suitable greenhouse for you according to your local climate and your needs.
2. We will give you a detailed quotation, so that you can clearly see the composition of the price.
3. We provide a 5-year warranty service for steel pipes and a 3-year warranty service for covering materials.
4. we have a professional construction design team, can give you the production of detailed construction drawings, at the same time to give you remote technical guidance.
Contact us
FQA
1. When can I get the price?
Usually within 24 hours after we get your inquiry. If you are urgent to get the price, please call me or tell me in the email.
2. Can you accept our own design, logo and pattern?
We can produce it according to your design.
3. Are you manufacturer or Trading company?
We are greenhouse manufacturer in ChengDu China,We are greenhouse manufacturing, and We also welcome you to visit our factory.
4. When can I got the goods?
Produce time is within 15days, and shipping is usually 20-35days.
5. What is your best price?
It is depends.
