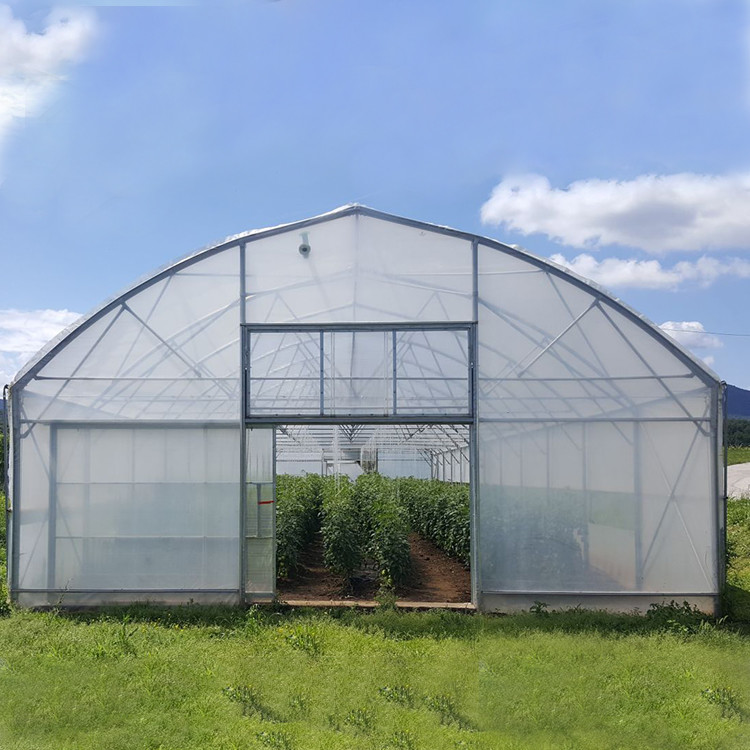

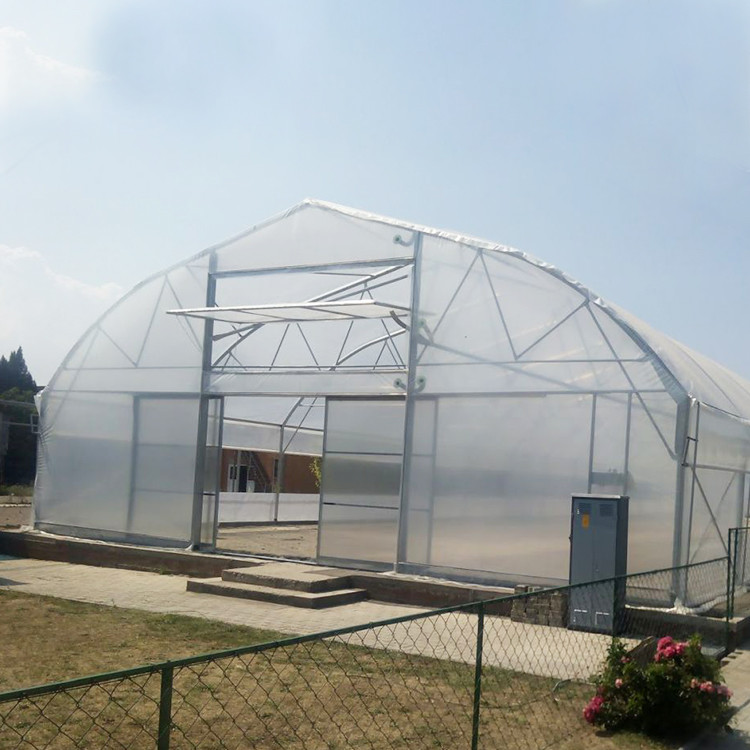

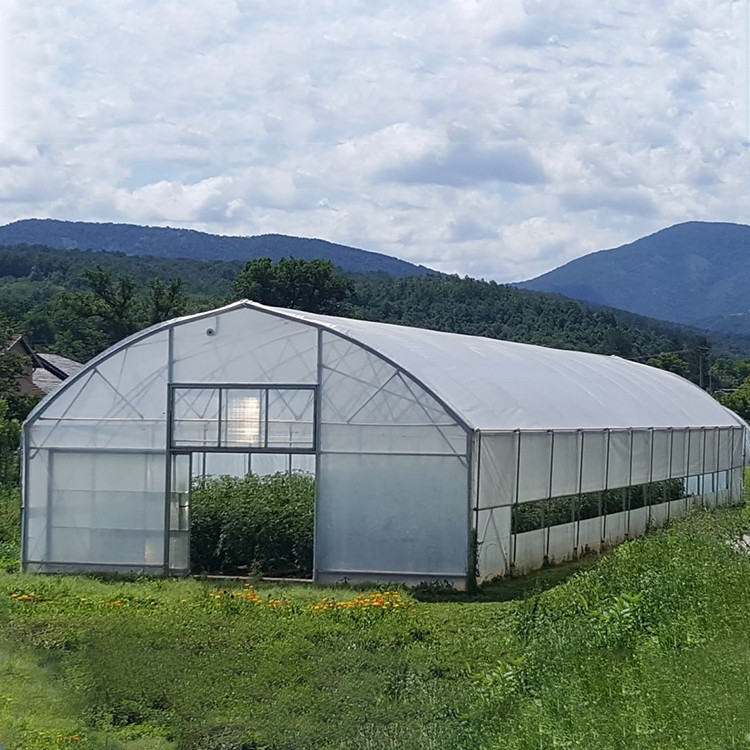

Single tunnel film greenhouse is specially designed for counter-season vegetables and fruit. The single-span film greenhouse can be a gothic roof or arch roof. We optimize the greenhouse frame and adopt the high light transmittance plastic film so that more space and sunlight will be filled in the greenhouse.
1. Vegetable cultivation

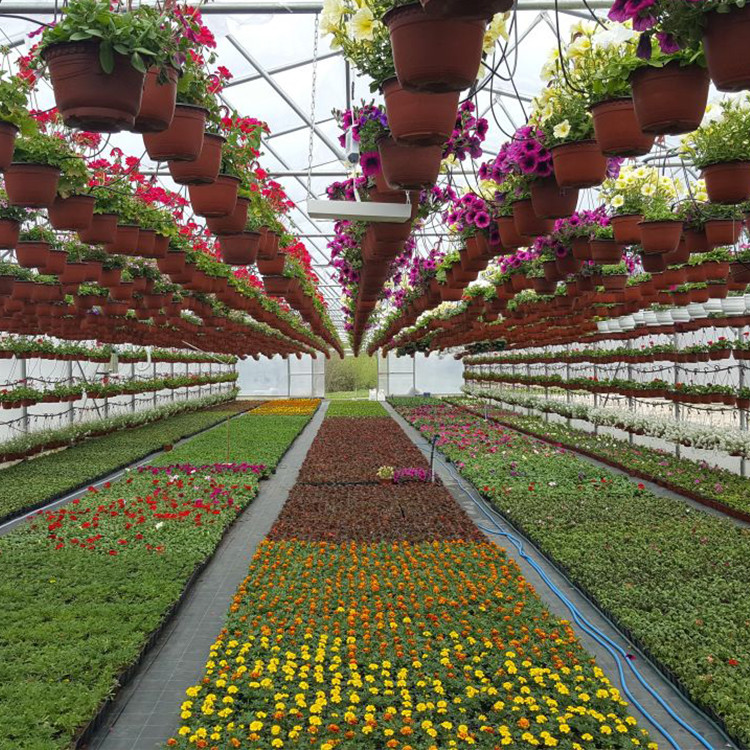

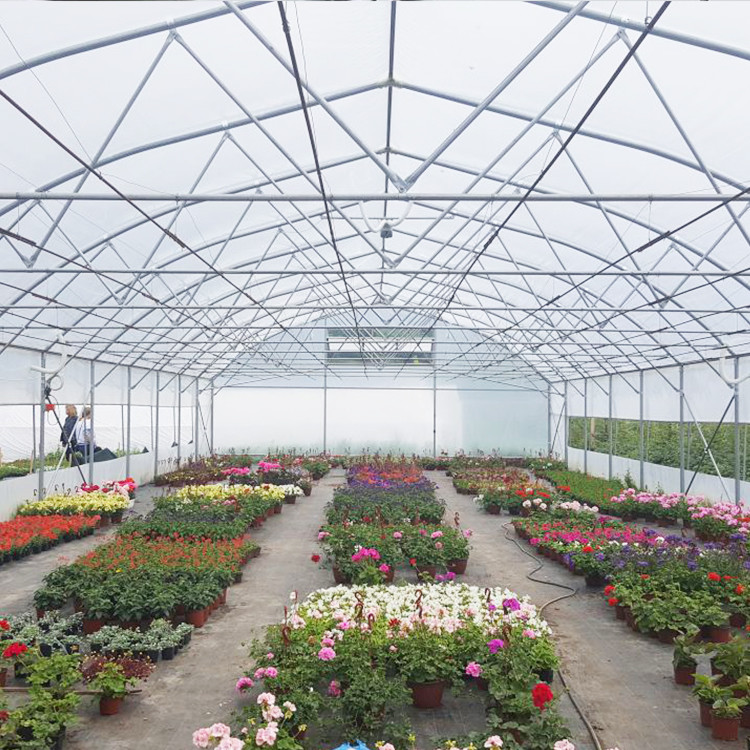

2. Flower cultivation
3. Fruits such as grapes, strawberry, watermelon, orange etc.
4. Forestry seeding cultivation, planting ornamental tree and shrub.
1. Simple structure: Galvanized steel framework+plastic film covering +side ventilation.
2. Easily assembled: The prefabricated steel pipes can be easily connected with some fastenings.
3. The large inner space is convenient for operation and maintenance.
4. This tunnel greenhouse doesn't cost too much, you can make a high output with low input.
5. Long life span: The steel structure of the greenhouse can be used for more than 10 years.
1. Clear PE film as the covering material;
2. Thickness is 0.15mm or 0.2mm;
3. Cover the greenhouse with the film of 1 or 2 layers;
4. Has the function of dust-proof and anti-dripping;

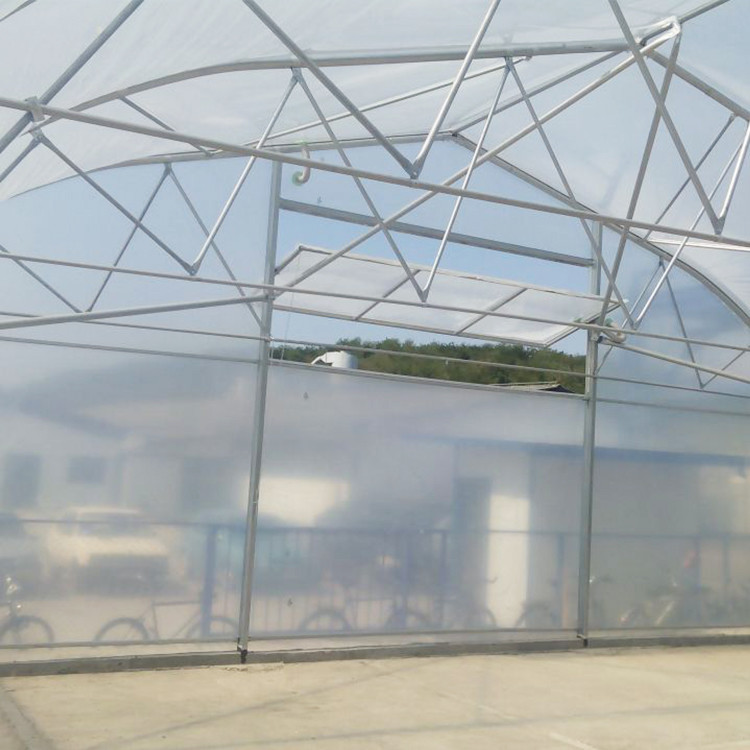

1. Hot-dip galvanized steel structure; Stable structure, high intensity;
2. Assembly style without welding points;
3. Excellent anti-corrosion effectiveness;
Ventilation system and shading system can be added.
|Standard size||W 8m, L 10m-60m||Accept Customized|
|Wall height||1.5 meters||Accept Customized|
|Arch||φ25mm*1.5mm||Can be changed|
|wall column||φ25mm*1.5mm||Can be changed|
|Covering material||80 / 150 micron||Can be changed|
a. Internal shading: Setting internal shading is an effective way to save energy, shade,
temperature and humidity.
b. Outside shading: In summer, the solar radiation heat load is too high, when the external the
shading system is used, the indoor temperature can be controlled to be only 1ºChigher than
that of the outdoor room in a well-ventilated greenhouse due to the blocking of most of the
solar radiation into the greenhouse.
c. Exhaust fan: Reasonable design, low noise, big air volume, strong wind, low operation
cost; Air downstream synthetic type PVC blinds or aluminum shutters with oxidation resistance,
light-weight, deformation, flexible open, and it also can prevent air-driven back.
d. Cooling pad: Corrugated paper uses space cross-linking technology, which makes it with
high water absorption, high water-resistant, mildew resistance, corrosion resistance, long
e. Water treatment: Rare flowers and plants have very high requests for irrigation water.
f.Sprinkler irrigation system: It uses a high-pressure pump for irrigation by spray system,
which sprays water on the crops, is a method of irrigation water for normal growth.
1. When can I get the price?
Usually within 24 hours after we get your inquiry. If you are urgent to get the price, please call me or tell me in the email.
2. Can you accept our own design, logo, and pattern?
We can produce it according to your design.
3. Are you a manufacturer or Trading company?
We are a greenhouse manufacturer in Chengdu China, are greenhouse manufacturing, and We also welcome you to visit our factory.
4. When can I get the goods?
Produce time is within 15days, and shipping is usually 20-35days.
5. What is your best price?
The same style of greenhouse can be used in different thicknesses of steel, and different thicknesses of the film. These will have a direct impact on greenhouse prices. And the larger the area, the lower the unit price will be
