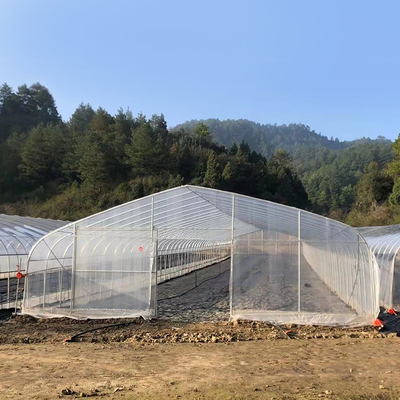

High Tunnel Gothic Plastic Film Covering Single Span Greenhouse For Plants Growing

Basic Information
Place of Origin: Chengdu China
Brand Name: BLD
Certification: ISO9001:2008
Model Number: BLD-406
Minimum Order Quantity: 0
Price: USD3-6/sqm
Packaging Details: The parts are packed in cartons, and the steel pipes are packed in conventional ways.
Delivery Time: 15 days
Payment Terms: Western Union, T/T
Supply Ability: 50000000sqm per month
Products Name: High Tunnel Gothic Plastic Film Covering Single Span Greenhouse For Plants Growing Installation Method: According To The Construction Drawings
Shipping Method: By Sea Material: Hot Dipped Galvanized Frame
MOQ: NO MOQ Width: 8-10m A Span
Top Height: Standard 2.8m (accept Customized) Shoulder Height: Standard 1.5m (accept Customized)
Length: Accept Customized Covering: 100/120/150/200micro PE Film
High Light:

Plastic Film Covering Single Span Greenhouse

,

High Tunnel Gothic Single Span Greenhouse

,

Plants Growing Gothic High Tunnel Greenhouse

High Tunnel Gothic Plastic Film Covering Single Span Greenhouse For Plants Growing

Description
The greenhouse's accessories and frame are made of hot-dip galvanized steel. This kind of greenhouse is very popular in many countries and regions of the world because of its simple structure and classic. It applies not only to most climates and regions, but also to most common crops. You can even add a variety of other ancillary systems. For example: irrigation system, hydroponic system, lighting system, etc. If you also grow common crops like peppers, kale, watermelons, strawberries, tomatoes and cucumbers, then we think this greenhouse will be your best bet.

Structure introduce
The greenhouse is designed in the shape of a tunnel. The sides of the arch need to be inserted about 30-50 cm into the ground. It is buried 30-50cm underground, ensuring the structural stability of the greenhouse, and this method is very cost-effective. Both sides of the greenhouse are equipped with artificial ventilation devices, which can effectively ensure air circulation. The ventilation area is equipped with a 40-mesh insect net, which can prevent harmful insects and organisms from entering the greenhouse, protect the safety of crops and ensure the output of crops.

Covering Material
The greenhouse film is drip - free and is made of polyethylene. This material not only has good light transmittance, good heat preservation performance, good drip resistance, good weather resistance and other excellent characteristics, but also has a long service life. This material can effectively block ultraviolet light, greatly extending the service life of the film. Our standard thickness films are 80 micron, 150 micron and 200 micron thick. In addition, we can also provide some other thicknesses. We can also provide other types of films. You can also choose the film you need according to your situation. Roofing material shall be 120/150/200 micron PO film with uv protection on the outer layer and condensation protection on the inner layer.

Parameter

Item Parameter Remark
Product model CD1-0

Ventilation system and shading system can be added.

Standard size W 8m, L 10m-60m Accept Customized
Wall height 1.5 meters Accept Customized
Arch φ25mm*1.5mm Can be changed
wall column φ25mm*1.5mm Can be changed
Covering material 80 / 150 micron Can be changed


Examples of pictures

High Tunnel Gothic Plastic Film Covering Single Span Greenhouse For Plants Growing 0

High Tunnel Gothic Plastic Film Covering Single Span Greenhouse For Plants Growing 1High Tunnel Gothic Plastic Film Covering Single Span Greenhouse For Plants Growing 2High Tunnel Gothic Plastic Film Covering Single Span Greenhouse For Plants Growing 3



Packing and Delivery

1. The products are usually tied with packing tape.The packaging size and container capacity of the product are different from the product specifications
2. Container transportation, according to your project request. Production time usually costs 10-20 days.



High Tunnel Gothic Plastic Film Covering Single Span Greenhouse For Plants Growing 4High Tunnel Gothic Plastic Film Covering Single Span Greenhouse For Plants Growing 5

High Tunnel Gothic Plastic Film Covering Single Span Greenhouse For Plants Growing 6High Tunnel Gothic Plastic Film Covering Single Span Greenhouse For Plants Growing 7

 High Tunnel Gothic Plastic Film Covering Single Span Greenhouse For Plants Growing 8
Service
1. We can design the most suitable greenhouse for you according to your local climate and your needs.
2. We will give you a detailed quotation, so that you can clearly see the composition of the price.
3. We provide a 5-year warranty service for steel pipes and a 3-year warranty service for covering materials.
4. we have a professional construction design team, can give you the production of detailed construction drawings, at the same time to give you remote technical guidance.
5. We also cooperate with many agricultural factories to help you with one-stop shopping.
