Gothic Arch Side Ventilation Plastic Film Greenhouse Single Span For Agriculture

Basic Information
Place of Origin: Sichuan,China
Brand Name: BAOLIDA
Certification: ISO9001:2008
Model Number: BLD-406
Minimum Order Quantity: Negotiation
Price: USD 2-6/sqm
Packaging Details: standard package
Delivery Time: 15 word days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500000 squre meters per month
Product Name: Gothic Arch Side Ventilation Tunnel Plastic Film Single Span Greenhouse For Agriculture Length: Customized
Width: 8m Or 9m Covering: 100/120/150/200micro PE Film
Color: Clear Or White Material: Hot Dip Galvanized Steel
Irrigation System: Drip Irrigation System Type: Vegetable Fruits Flowers Growing
Application: Vegetables Function: Warm Reservation
High Light:

Side Ventilation Plastic Film Greenhouse


Gothic Arch Plastic Film Greenhouse


Agriculture Gothic Arch Greenhouse

Gothic Arch Side Ventilation Plastic Film Single Span Greenhouse For Agriculture


Tunnel Plastic Greenhouse Product describe:

A greenhouse is the simplest structure greenhouse with the lowest cost. The framework is the core structure of the tunnel greenhouse. It includes the groove, the door, the ridge, the arch, the end column and so on. The single-span is usually between 6m to 12m. The advantage lies in the maximum use of the land area, simple installation, strong durability and long service life. In addition, it is very convenient to disassemble, install and transport. So the cost is the lowest, but the most cost-effective one. It also refers to a room with cold protection, heating and light transmission facilities for the cultivation of warm plants in winter. In the season which is not suitable for plant growth, it can provide the growth period and increase the yield. It is mostly used for the cultivation or seedling cultivation of vegetables, flowers, trees and other plants in the low- temperature season.


Product Name Gothic Arch Greenhouse
Material Hot Dipped Galvanized Steel
Width 30ft (9m)
Length 100ft (30m)
Roof Height 12ft
Arch 48mm
Boom 32mm
Covering Material PE film 150microns
Door 6.56*6.56ft (2*2m)
Ventilation System Roll-up side ventilation by manual*2
Wind Load 0.4KN/M2
Snow Load 0.35KN/M2
Max Rain Quantity 140mm/h
Packing Size 16.73*3.93*1.47ft (5.1*1.2*0.45m)
Production Time 7 days



Simple structure and economic type
  Structure is flexible, strong applicability and wide applicable scope
  High quality Lock Channel and Hot-dip Galvanization



Covering Material

The gothic greenhouse is covered by 150 Micron PE film. It’s clear, dust-proof with anti-dropping

design. The global light transmission is more than 90%. The UV transmission is 300-390%. The lifespan is more than 5 years. It would offer the best suitable growing environment to your plant


Name Thickness Guarantee period Types




Plastic Film

0.06mm 14 month







0.08mm 18 month
0.10mm 2 years
0.12mm 3 years
0.15mm 4 years
0.20mm 5 years

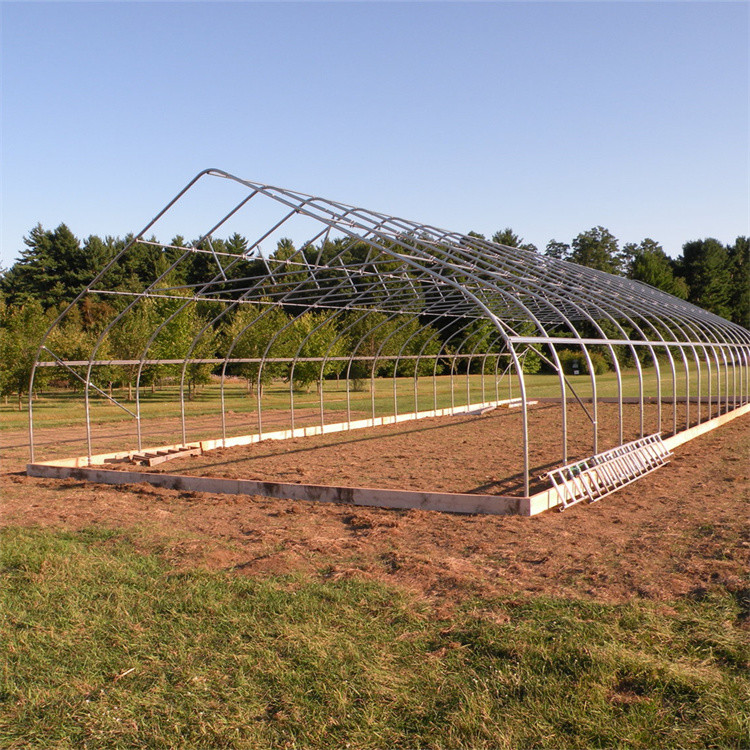

Galvanized Steel Frame

We use the galvanized steel tube as the greenhouse frame It’s more strengthen, durable and stable than the regular steel. The anti-corrosive design to confirm the long lifespan of greenhouse structure. We could adjust the steel tube based on your project location.



Add style, security, and efficiency with a 2*2 meters greenhouse door. Be sure to maintain proper greenhouse temperature and prevent the insects.


Ventilation System

Two side ventilation systems by manual roller control. You can roll them up and down to adjust the temperature in the greenhouse. Meanwhile, the insect net will prevent pests effectively and diseases of the crops.

All the details can be customized as your requirements, please contact us.

Gothic Arch Side Ventilation Plastic Film Greenhouse Single Span For Agriculture 0Gothic Arch Side Ventilation Plastic Film Greenhouse Single Span For Agriculture 1

Gothic Arch Side Ventilation Plastic Film Greenhouse Single Span For Agriculture 2


Drip irrigation

It is the most effective way of water-saving irrigation for drought and water shortage areas at present. The utilization rate of water is up to 95%. And it can be applied to fruit trees, vegetables, cash crops and greenhouse irrigation. Of course, it owns many advantages: such as, saving water; irrigation uniformity; energy, soil and terrain adaptability; convenient farm work, etc.


Gothic Arch Side Ventilation Plastic Film Greenhouse Single Span For Agriculture 3Gothic Arch Side Ventilation Plastic Film Greenhouse Single Span For Agriculture 4

Our services

1. Reliable design: a strong and creative design, research and development team to design the greenhouse according to the local climate and geographical conditions.

2. Greenhouse installation: engineers can be sent to your country for greenhouse installation.

3. Quality assurance: we have strict quality control and mature technology, our products have achieved

National and industry standards. All our exports will be strictly inspected before shipment.

4. One-to-one 24-hour online service: for any questions, please contact us.

5. After-sales service: if there is any quality problem during the warranty period, we will assume the responsibility and provide on-site service as needed.
