Agriculture Vegetable Growing Hoop House Film Tunnel Greenhouse
USD 2-6/sqm
Agriculture Vegetable Growing Hoop House Film Tunnel Greenhouse
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Sichuan,China
Brand Name: BAOLIDA
Certification: ISO9001:2008
Model Number: BLD-408
High Light:

200micro Film Vegetable Growing Hoop House


ISO9001 Vegetable Growing Hoop House


PE Film Tunnel Greenhouse

Payment & Shipping Terms
Packaging Details: standard package
Delivery Time: 15 word days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500000 squre meters per month
Features: Easily Assembled
Product Name: Agriculture Vegetable Growing Hoop House Low Cost Agriculture Greenhouse Film Tunnel Greenhouse
Covering: 100/120/150/200micro PE Film
Length: Customized
Span Width: Customized
Stucture: Steel Frame
Material: Hot Dip Galvanized Steel
Key Word: Single Span PE Film Greenhouse
Pipe Size: Round 32mm,40mm,48mm
Advantage: Cost-effective,easy Construction
Product Description

Agriculture Vegetable Growing Hoop House Low Cost Agriculture Greenhouse Film Tunnel Greenhouse


Product describe:


The tomato and cucumber structure of the polyethylene single-span greenhouse is suitable for planting tomato and cucumber in large areas. The land utilization rate is very high. After installation, it can be centralized management, with high efficiency. Combined with irrigation, cooling, shading and heating systems, it can effectively control the internal environment of greenhouse gases and provide an appropriate environment for crop growth. Get better.


Greenhouse Framework:

Our greenhouse frame is a hot-dip galvanized steel structure; it is a stable high-strength structure; the assembly style is no welding and excellent corrosion resistance; the size of the steel frame can be customized by design; steel is a high-quality material with strong resistance. With age, steel has a long service life and the frame is easy to assemble.

Type Small spire top or round top
Greenhouse Length 16m-120m or customized
Greenhouse Width 20m-60m or customized
Width Of Each Span 8m/9.6m/12m for option or customized
Spires No.for each span 3 PCS
Total Height 4.8-5.3m customized
Bay 4m
Covering material Reinforced Plastic Film

Ventilation Requirements For


Top or side ventilation
Basic equipment

Frame structure,top ventilation or both sides ventilation,

electrical power distribution

Supporting system

(choose according to your needs)

Cooling system, electrical outside shading net & inside

shading & irrigation system for option



Greenhouse Covering:

This type of greenhouse choose Clear PE film as the covering material; Thickness could be 0.08mm,0.12mm,0.15mm,0.2mm; Cover the greenhouse with the film of 1 or 2 layers; Has the function of dust-proof and anti-dripping; To reduce water evaporation in soil; UV block treatment; Cost very few, easy to install and maintain.


Name Thickness Guarantee period Types
Plastic Film 0.06mm 14 month





0.08mm 18 month
0.10mm 2 years
0.12mm 3 years
0.15mm 4 years
0.20mm 5 years


Greenhouse Ventilation:

The ventilation system can be the most necessary system of a greenhouse, it can keep aircirculation in the greenhouse and will effectively prevent pests and diseases of the crops because of the anti-insect net.Manual ventilation system,this system consists of manual roller, roller pipe,roller climbing rod, 40 mesh anti-insect net, etc.Motor-driven ventilation system is consist of electric motor, transmission rolling system, roller pipe, 40 mesh anti-insect net, etc.

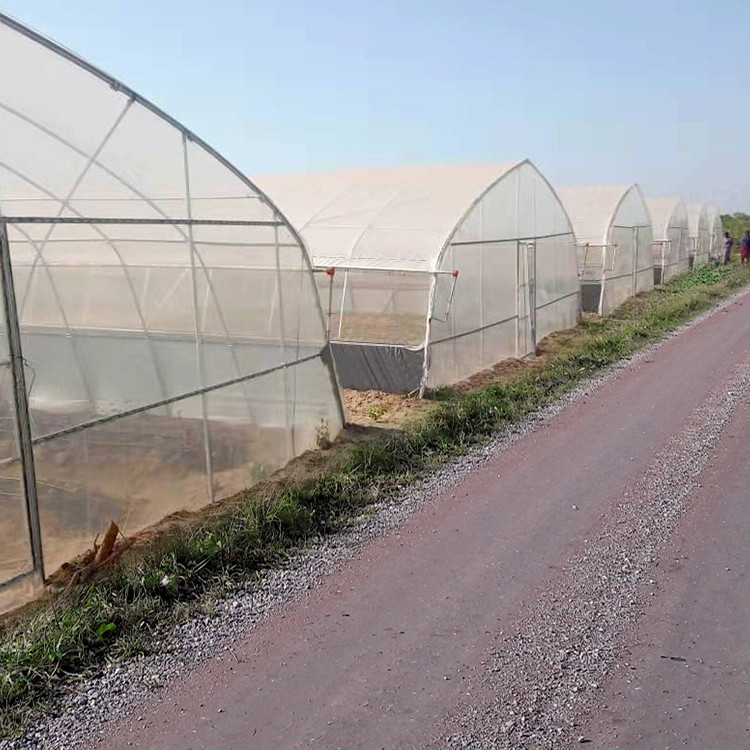

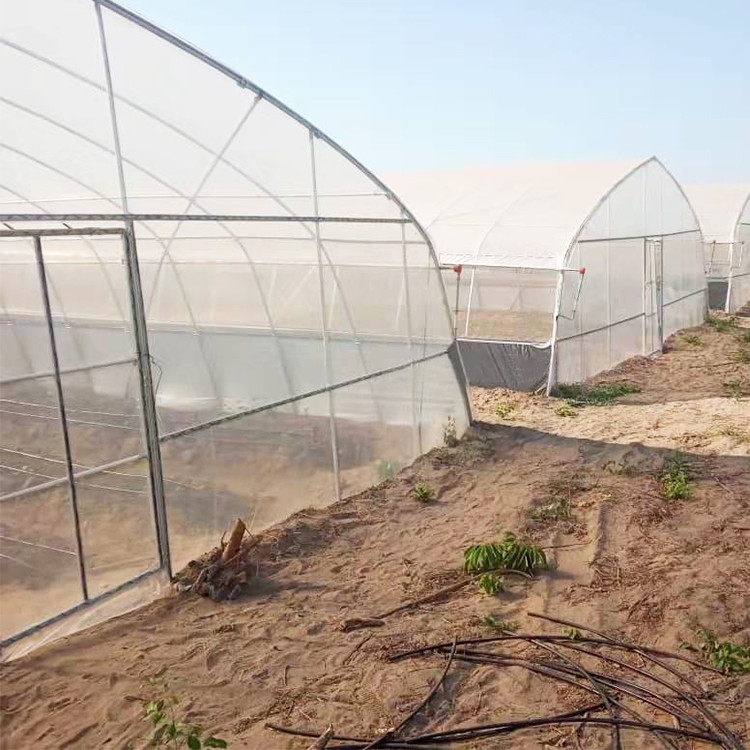

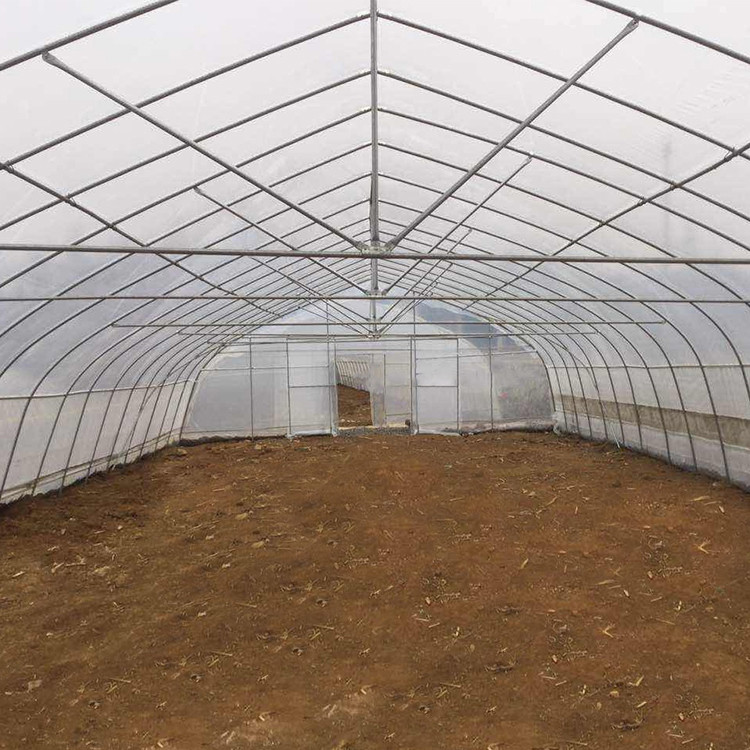

Agriculture Vegetable Growing Hoop House Film Tunnel Greenhouse 0Agriculture Vegetable Growing Hoop House Film Tunnel Greenhouse 1

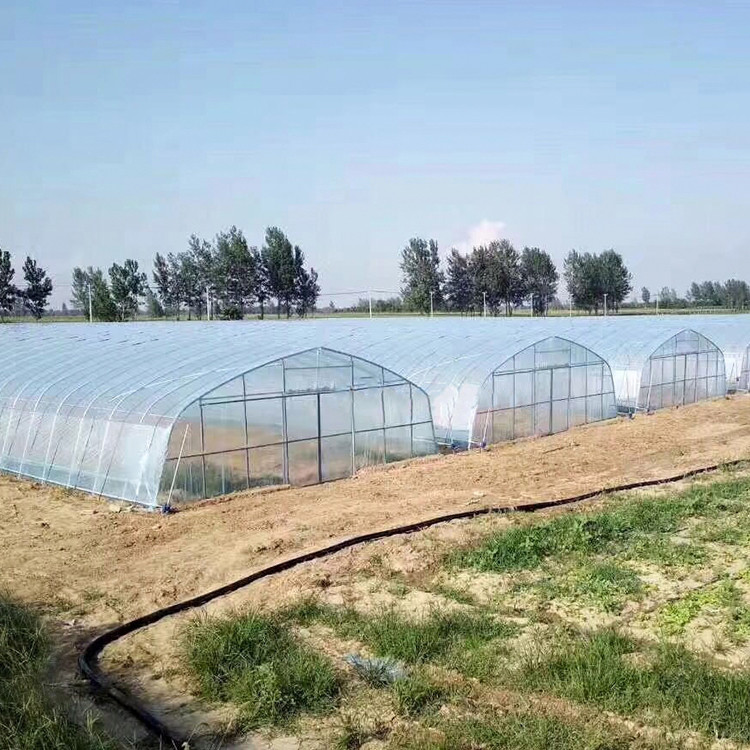

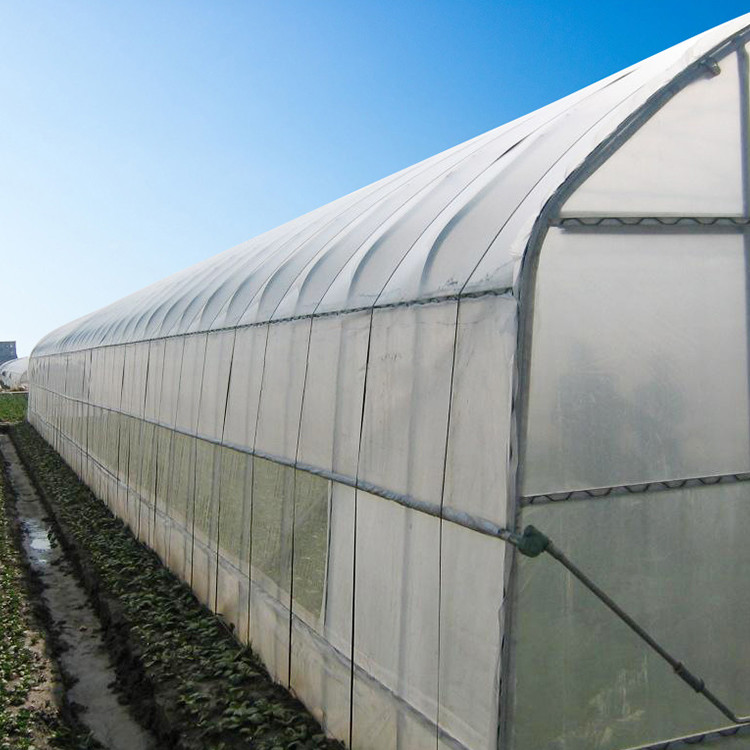

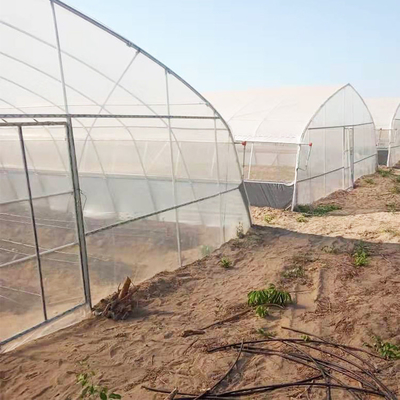

Agriculture Vegetable Growing Hoop House Film Tunnel Greenhouse 2Agriculture Vegetable Growing Hoop House Film Tunnel Greenhouse 3


Tunnel greenhouse advantage

Tunnel greenhouse is a simplest structure greenhouse with the lowest cost and the most convenient installation. The framework is the core structure of the tunnel greenhouse. It includes the groove, the door, the ridge, the arch, the end column and so on. The single span is usually between 6m to 12m .The advantage lies in the maximum use of the land area, simple installation, strong durability and long service life. In addition ,it is very convenient to disassemble , install and transport .So the cost is the lowest, but the most cost-effective one.


2. Tunnel greenhouse is one of the most simplest structure of greenhouse. Greenhouse film is made of 100% new material PE with UV additives. It's strong ,long-life ,keep temperature and preserve moisture , promotion plants grow, protection fruit and vegetable.


3..This greenhouse is simply installed, is framed by galvanized tubes. There is no upright column in the greenhouse, so it’s strengthening the lighting effects and good for the mechanical operations, promoting the land-utilizing ability.
