Outdoor Galvanized Steel Frame Greenhouse Plastic Sheet Film Tunnel Agricultural

Basic Information
Place of Origin: CHINA
Brand Name: BAOLIDA
Certification: ISO9001:2008
Model Number: BAOLIDA-408
Minimum Order Quantity: 1 set
Price: USD 2-6/sqm
Packaging Details: Standard greenhosue package
Delivery Time: 7-14 WEEK DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500000 SQUARE METERS ONE MONTH
Features: Easily Assembled Product Name: Outdoor Galvanized Steel Frame Agricultural Greenhouse Plastic Sheet Film Tunnel Greenhouse
Width: 6m-12m Length: 30-100m
Shoulder Height: Standard 1.5m (accept Customized) Top Height: Standard 2.8m (accept Customized)
Covering: 100/120/150/200micro PE Film Usage: Agricultural Protect
Type: Vegetable Fruits Flowers Growing Irrigation System: Drip Irrigation System
High Light:

Outdoor Galvanized Steel Frame Greenhouse

,

Agricultural Steel Frame Greenhouse

,

Plastic Sheet Film Tunnel Greenhouse

Outdoor Galvanized Steel Frame Agricultural Greenhouse Plastic Sheet Film Tunnel Greenhouse

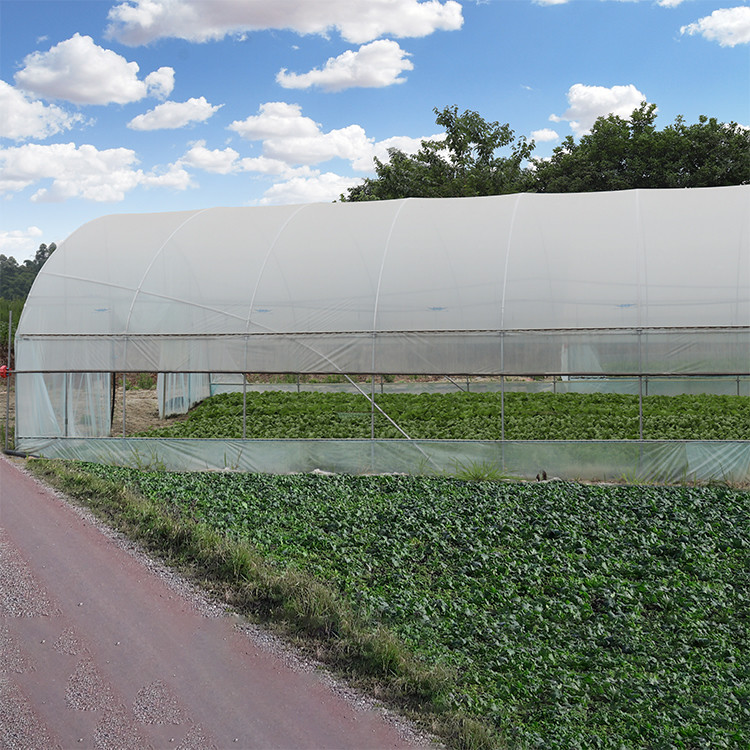

Tunnel Plastic Greenhouse Product describe:

A tunnel plastic greenhouse is the simplest structure greenhouse with the lowest cost. It's suitable for planting cash crops such as vegetables, which can effectively prevent natural disasters and increase yield and income per unit area. It has the advantages of simple assembly, low investment and high output. It consists of a hot-dip galvanized tube with a single film as the covering material. The frame structure is simple, low cost and easy to install. Manual side wall rewinder is usually provided for good ventilation and cooling systems, depending on climatic conditions. It consists of one or more hot-dip galvanized pipes with a series of steel tubes in a series of arched structures made of galvanized cylinders that require no concrete foundation and can be easily transported and installed. Its shape allows the interior to hold more air and is resistant to rain and insects. The skeleton material of the greenhouse is galvanized steel pipe connected by screws, bolts or suitable connectors.


SPEC:

Frame 32X1.5MM hot-dip galvanized steel pipe
cover material 200 micron/150 micron plastic film /100 micron
side ventilation: with manual roll-up unit on the side
Height: 3.5m
Size can be: 7x20m,7x25m,8x30m .....your size can be customized
The reinforced structure with lattice arches and squared columns offers extensive guarantees thanks to the resistance against wind, snow, and at the same time allows hanging support to various types of cultivation.



Detail:

ITEM DESCRIPTION
Product Name Single-Span PE Film Greenhouse
Features Simple structure and economic type
Structure is flexible, strong applicability and wide applicable scope
High quality Lock Channel and Hot-dip Galvanization
Frame Hot-Dip Galvanized Steel
Cover Material Three or Five layers co-extrusion PE Film
Ventilation Sidewall Manual Hand Crank Winch
Span 6m/8m/10m Customized
Length Normal:30m/50m/60m or Customized
Shoulder Height 1.5m-1.8m or Customized
Roof Height 3.5m or Customized
Wind Load 0.6KN/M2
Snow Load 0.5KN/M2
Max Rain Quantity

140mm/h

Outdoor Galvanized Steel Frame Greenhouse Plastic Sheet Film Tunnel Agricultural 0Outdoor Galvanized Steel Frame Greenhouse Plastic Sheet Film Tunnel Agricultural 1Outdoor Galvanized Steel Frame Greenhouse Plastic Sheet Film Tunnel Agricultural 2

Outdoor Galvanized Steel Frame Greenhouse Plastic Sheet Film Tunnel Agricultural 3

Outdoor Galvanized Steel Frame Greenhouse Plastic Sheet Film Tunnel Agricultural 4Outdoor Galvanized Steel Frame Greenhouse Plastic Sheet Film Tunnel Agricultural 5Outdoor Galvanized Steel Frame Greenhouse Plastic Sheet Film Tunnel Agricultural 6Outdoor Galvanized Steel Frame Greenhouse Plastic Sheet Film Tunnel Agricultural 7

FAQ

Q: Are you a trading company or manufacturer?

A: We are a factory. We have two factories to produce everything related to the greenhouse, so we offer the best price.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: Will you provide the installation instruction?

A: Yes, for the greenhouse we sold, we will provide a detailed installation manual after the order is confirmed.

Q; Can you arrange for the engineer to our place for installing?

A: Yes, we can send our guys to your place for installation, but it’s not for free.
