Hydroponic Growing System Venlo Glass Greenhouse Galvanized Steel Frame
Negotiation
MOQ
USD 3-8/sqm
Price
Hydroponic Growing System Venlo Glass Greenhouse Galvanized Steel Frame
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Sichuan China
Brand Name: Baolida
Certification: ISO9001:2008
Model Number: BLD616
High Light:

Hydroponic Venlo Glass Greenhouse

,

Galvanized Steel Frame Venlo Glass Greenhouse

,

Plants Cultivation Venlo Type Greenhouse

Payment & Shipping Terms
Packaging Details: Standard package
Delivery Time: 7-20days after receiving payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000000ton/ month
Specifications
Product Name: Glass Greenhouse
Feature: Glass Panel
Type: Multispan
Frame: Hot Dip Galvanized Steel Tube
Top Height: 4.8 5.8 Or Customized
Span Width: 6m/6.2m/6.4m/8m/9.6m/10.8m/12m
Shading System: Inside+outside Shading Optional
Material: Metal Stell And Glass Sheet
Optional System: Cooling System.irrigation System.ventilation.etc
Application: Plants Cultivation
Product Description

Hydroponic Growing System Venlo Greenhouse Galvanized Steel Frame Glass Greenhouse





Brief introduced:



As a professional manufacturer of greenhouses, we can supply film greenhouses, glass greenhouses, PC board greenhouses, solar greenhouses, tunnel greenhouses, etc. Customized also available. Please kindly let us know your requirement, our technician will make the best design for you.





Venlo Greenhouse:



Venlo-style multi-span greenhouse is the most widely used structure in the world. It is a greenhouse covered with hard materials. It has also become the preferred structure for glass greenhouses and PC panel greenhouses in China.



Features:



The main skeleton structure of the Venlo-style multi-span greenhouse: adopts three roof ridges hot-dip galvanized steel structure with good anti-corrosion performance The service life of the main body is more than 20 years, It also has good light transmittance, the transmittance of single-layer glass greenhouse up to 97%, the double glazing is 88%.



Covering:



Covering materials are mainly divided into polycarbonate hollow board (PC sunshine board), double float glass or tempered glass, etc. Greenhouses are generally covered with UV- and condensation-resistant polycarbonate hollow panels (PC sunlight panels) or glass, and the special hot-dip galvanized steel framework has the advantages of good lighting, thermal insulation, and economical durability, and strong resistance to impact damage. It can also be covered with different materials according to the differences in climate conditions and specific design requirements of the customer's area.



Main configuration:



The greenhouse can be fully automatic controlled and can be equipped with internal and external shading systems, internal thermal insulation systems, skylight side window systems, wet curtain fan cooling systems, heating systems, spraying and irrigation systems, etc. Appropriate configuration is required.





Application:



It can be used not only as a production greenhouse for vegetables and flowers, but also as a nursery greenhouse for vegetables and flowers.


Parameter:

Specifications of Orient Greenhouse


Basic parameters
Wind Load
0.5KN/m²
Snow Load
0.3KN/m²
Greenhouse constant load
15kg/m²
Maximum drainage capacity
140mm/h
Frame
Hot dip galvanized steel
Covering Materials
PO or PEP film, Glass, Polycarbonate sheet



Optional systems
Ventilation System
Shading System
Cooling System
Heating System
Irrigation System
Seedbed System
Hydroponics System
Control System
Lighting system
Other customized equipment
We will make design proposal as customers specific requirements.

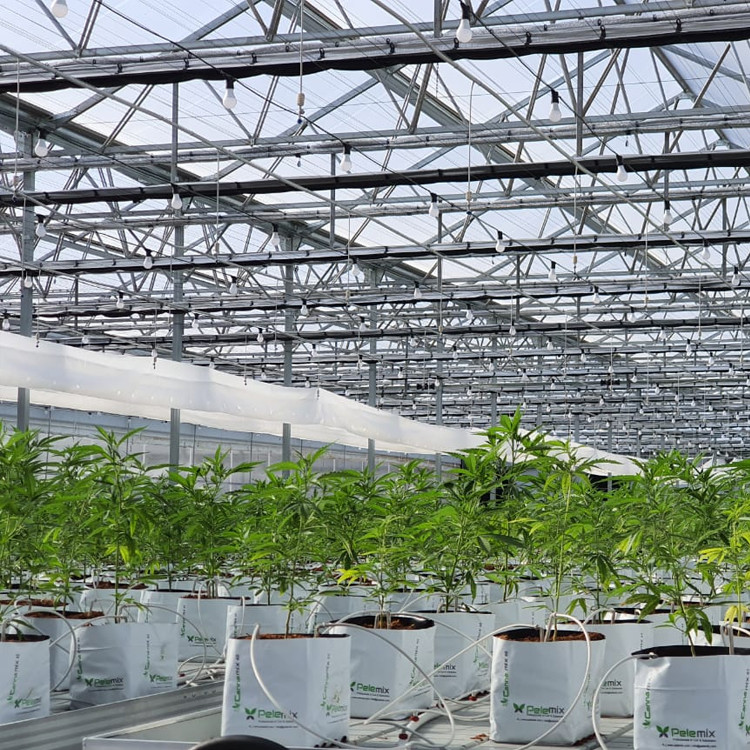

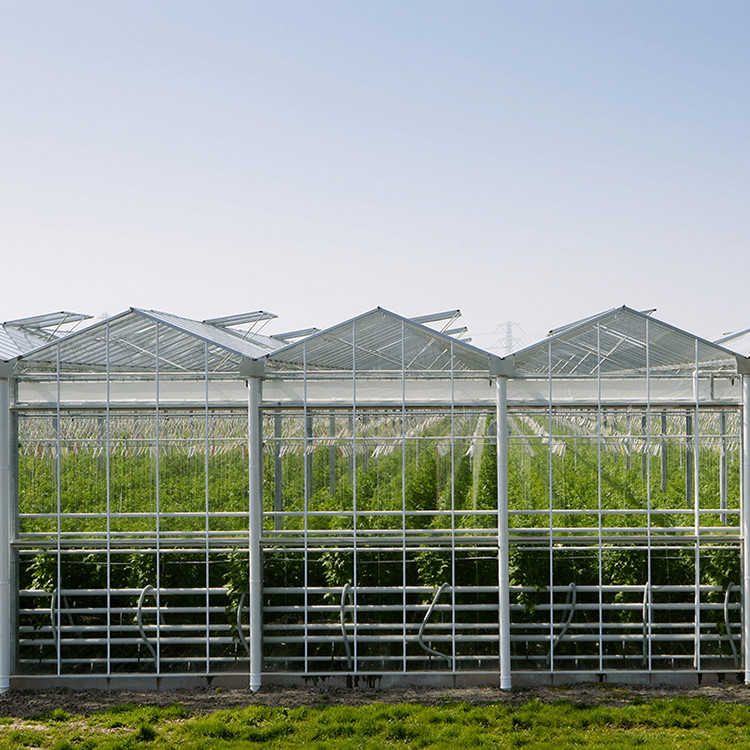

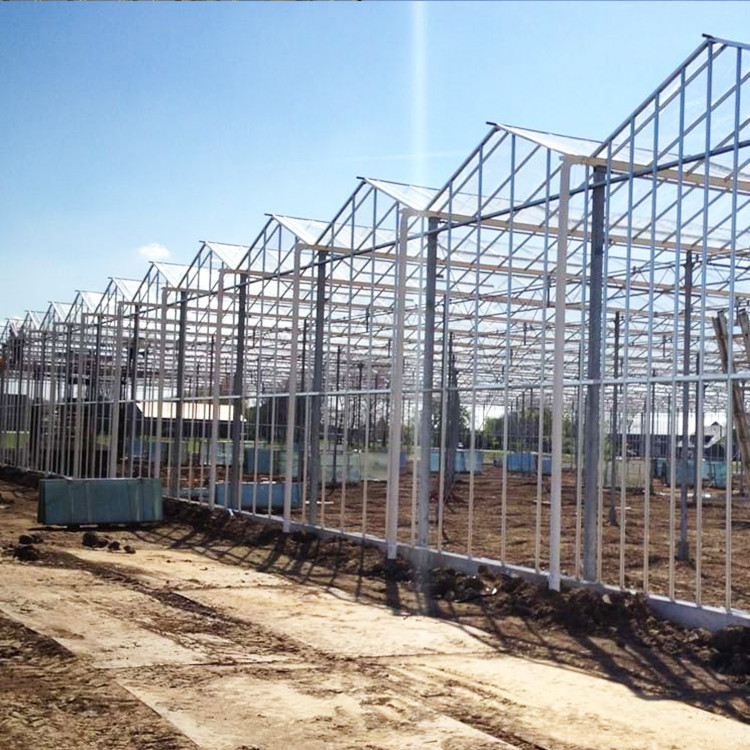

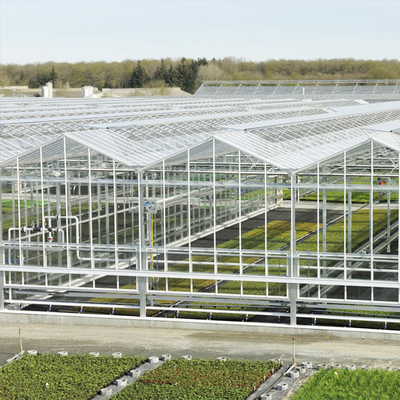

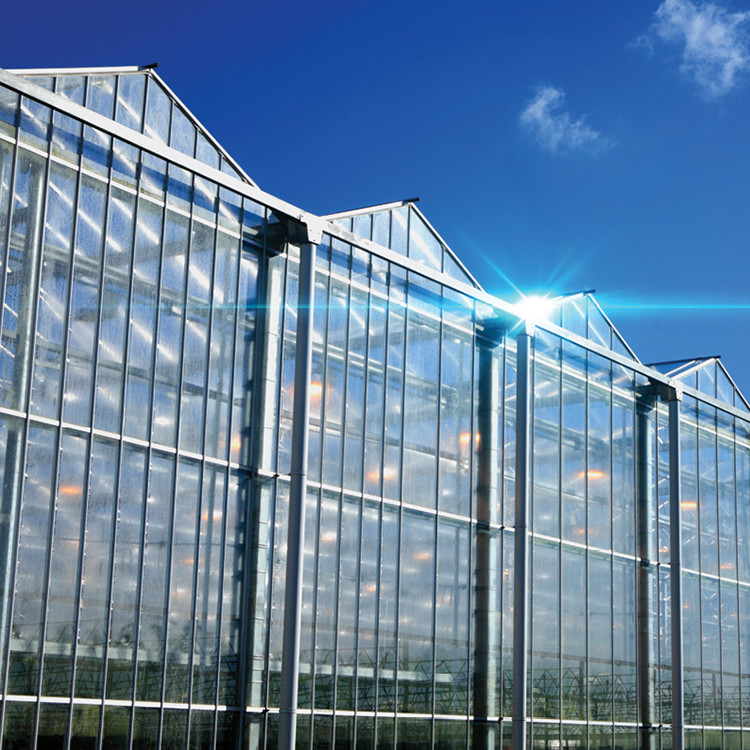

Hydroponic Growing System Venlo Glass Greenhouse Galvanized Steel Frame 0Hydroponic Growing System Venlo Glass Greenhouse Galvanized Steel Frame 1Hydroponic Growing System Venlo Glass Greenhouse Galvanized Steel Frame 2

Hydroponic Growing System Venlo Glass Greenhouse Galvanized Steel Frame 3



Packing and Delivery

1. The products are usually tied with packing tape.The packaging size and container capacity of the product are different from the product specifications
2. Container transportation, according to your project request. Production time usually costs 10-20 days.



Hydroponic Growing System Venlo Glass Greenhouse Galvanized Steel Frame 4Hydroponic Growing System Venlo Glass Greenhouse Galvanized Steel Frame 5
Hydroponic Growing System Venlo Glass Greenhouse Galvanized Steel Frame 6Hydroponic Growing System Venlo Glass Greenhouse Galvanized Steel Frame 7
Hydroponic Growing System Venlo Glass Greenhouse Galvanized Steel Frame 8
Service
1. We can design the most suitable greenhouse for you according to your local climate and your needs.
2. We will give you a detailed quotation, so that you can clearly see the composition of the price.
3. We provide a 5-year warranty service for steel pipes and a 3-year warranty service for covering materials.
4. we have a professional construction design team, can give you the production of detailed construction drawings, at the same time to give you remote technical guidance.
5. We also cooperate with many agricultural factories to help you with one-stop shopping.



Hydroponic Growing System Venlo Glass Greenhouse Galvanized Steel Frame 9

1. When can I get the price?
Usually within 24 hours after we get your inquiry. If you are urgent to get the price, please call me or tell me in the email.
2. Can you accept our own design, logo, and pattern?
We can produce it according to your design.
3. Are you a manufacturer or Trading company?
We are a greenhouse manufacturer in Chengdu China, are greenhouse manufacturing, and We also welcome you to visit our factory.
4. When can I get the goods?
Produce time is within 15days, and shipping is usually 20-35days.
5. What is your best price?
The same style of greenhouse can be used in different thicknesses of steel, and different thicknesses of the film. These will have a direct impact on greenhouse prices. And the larger the area, the lower the unit price will be
