Hot Dip Galvanizing Steel Frame Photovoltaic Solar Venlo Glass Greenhouse Multi Span

Negotiation
MOQ
35-50USD/Square Meter
Price
Hot Dip Galvanizing Steel Frame Photovoltaic Solar Venlo Glass Greenhouse Multi Span
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Glass Greenhouse
Feature: Good Appearance
Type: Multispan
Frame: Hot Dip Galvanized Steel Tube
Top Height: 4.8 5.8 Or Customized
Span Width: 6m/6.2m/6.4m/8m/9.6m/10.8m/12m
Shading System: Inside+outside Shading Optional
Material: Metal Stell And PC Sheet
Optional System: Cooling System.irrigation System.ventilation.etc
Application: Plants Cultivation
High Light:

Photovoltaic Solar Venlo Glass Greenhouse

,

Galvanizing Steel Frame Venlo Type Greenhouse

,

Multi Span Venlo Glass Greenhouse

Basic Infomation
Place of Origin: Sichuan China
Brand Name: Baolida
Certification: ISO9001:2008
Model Number: BLD810
Payment & Shipping Terms
Packaging Details: Standard package
Delivery Time: 7-20days after receiving payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000000ton/ month
Product Description

Hot Dip Galvanizing Steel Frame Photovoltaic Solar Multi-Span Agriculture Venlo Glass Greenhouse





Brief introduce:



As a professional manufacturer of greenhouses, we can supply film greenhouses, glass greenhouses, PC board greenhouses, solar greenhouses, tunnel greenhouses, etc. Customized also available. Please kindly let us know your requirement, our technician will make the best design for you.





Venlo Greenhouse:



Venlo-style multi-span greenhouse is the most widely used structure in the world. It is a greenhouse covered with hard materials. It has also become the preferred structure for glass greenhouses and PC panel greenhouses in China.



Features:



The main skeleton structure of the Venlo-style multi-span greenhouse: adopts three roof ridges hot-dip galvanized steel structure with good anti-corrosion performance The service life of the main body is more than 20 years, It also has good light transmittance, the transmittance of single-layer glass greenhouse up to 97%, the double glazing is 88%.



Covering:



Covering materials are mainly divided into polycarbonate hollow board (PC sunshine board), double float glass or tempered glass, etc. Greenhouses are generally covered with UV- and condensation-resistant polycarbonate hollow panels (PC sunlight panels) or glass, and the special hot-dip galvanized steel framework has the advantages of good lighting, thermal insulation, economical durability, and strong resistance to impact damage. It can also be covered with different materials according to the differences in climate conditions and specific design requirements of the customer's area.



Main configuration:



The greenhouse can be fully automatic controlled and can be equipped with internal and external shading systems, internal thermal insulation systems, skylight side window systems, wet curtain fan cooling systems, heating systems, spraying and irrigation systems, etc. Appropriate configuration is required.





Application:



It can be used not only as a production greenhouse for vegetables and flowers but also as a nursery greenhouse for vegetables and flowers.


Parameter:

Specifications of Orient Greenhouse


Basic parameters
Wind Load
0.5KN/m²
Snow Load
0.3KN/m²
Greenhouse constant load
15kg/m²
Maximum drainage capacity
140mm/h
Frame
Hot dip galvanized steel
Covering Materials
PO or PEP film, Glass, Polycarbonate sheet



Optional systems
Ventilation System
Shading System
Cooling System
Heating System
Irrigation System
Seedbed System
Hydroponics System
Control System
Lighting system
Other customized equipment
We will make design proposal as customers specific requirements.

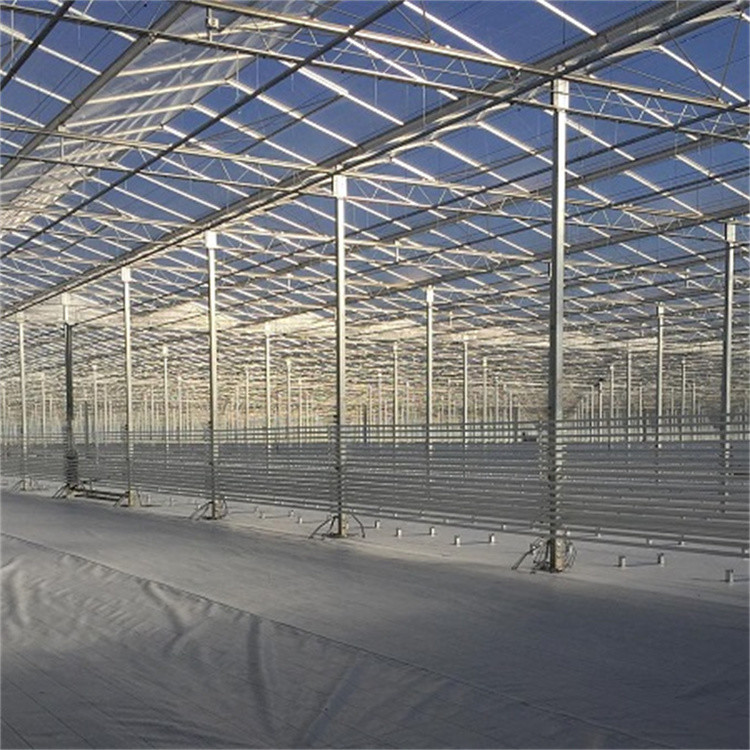

Hot Dip Galvanizing Steel Frame Photovoltaic Solar Venlo Glass Greenhouse Multi Span 0

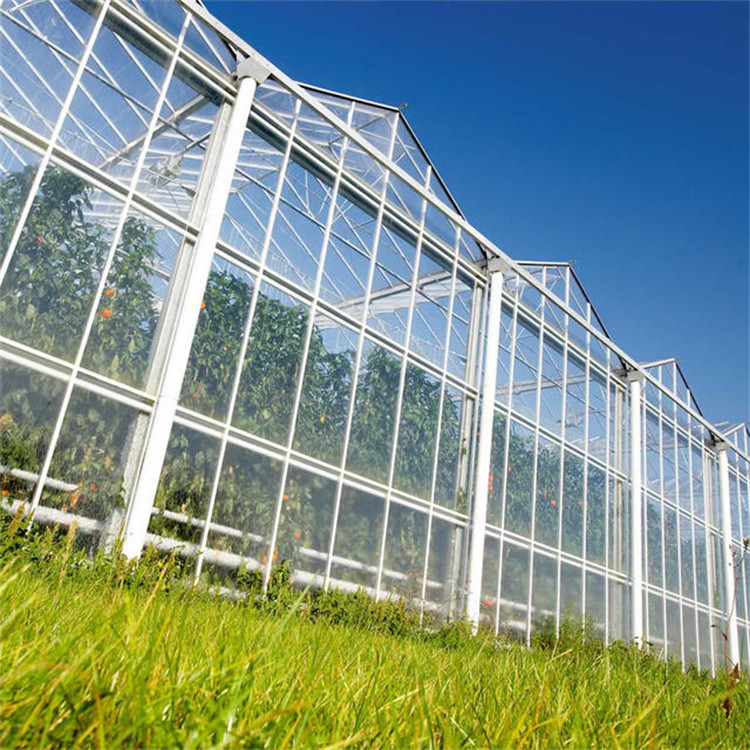

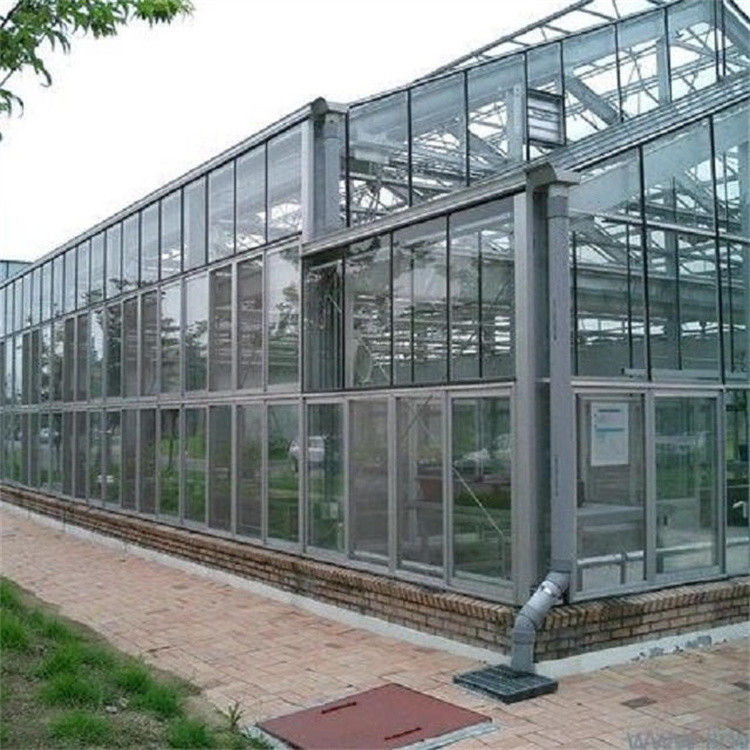

Hot Dip Galvanizing Steel Frame Photovoltaic Solar Venlo Glass Greenhouse Multi Span 1Hot Dip Galvanizing Steel Frame Photovoltaic Solar Venlo Glass Greenhouse Multi Span 2



Our services

1. Reliable design: a strong and creative design, research and development team to design the greenhouse according to the local climate and geographical conditions.

2. Greenhouse installation: engineers can be sent to your country for greenhouse installation.

3. Quality assurance: we have strict quality control and mature technology, our products have achieved

National and industry standards.All our exports will be strictly inspected before shipment.

4. One-to-one 24-hour online service: for any questions, please contact us.

5. After-sales service: if there is any quality problem during the warranty period, we will assume the responsibility and provide on-site service as needed.

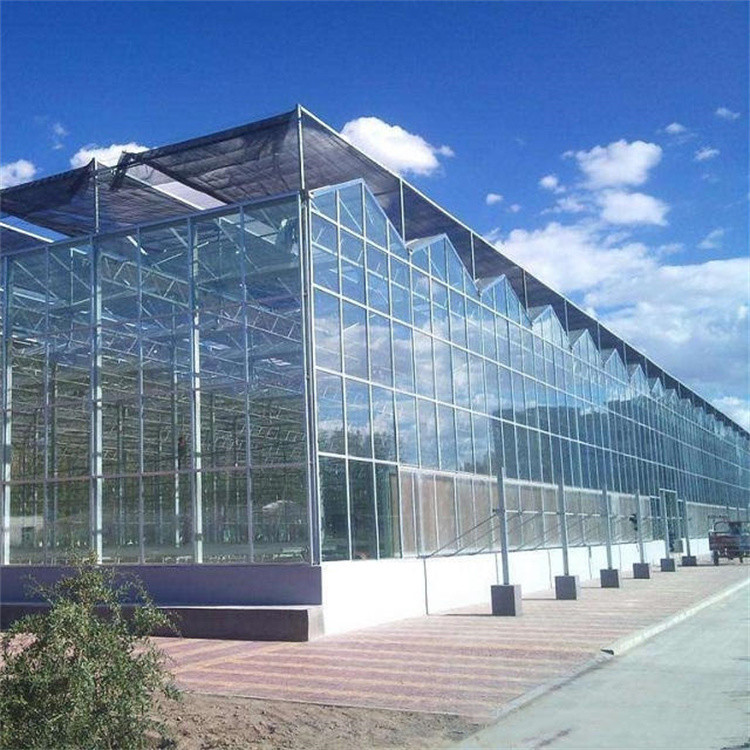

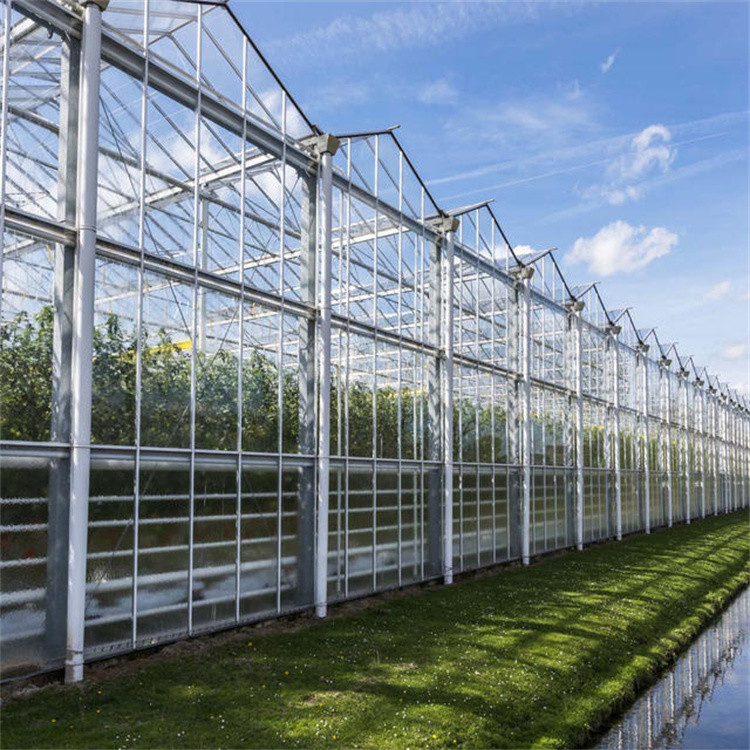

Hot Dip Galvanizing Steel Frame Photovoltaic Solar Venlo Glass Greenhouse Multi Span 3Hot Dip Galvanizing Steel Frame Photovoltaic Solar Venlo Glass Greenhouse Multi Span 4Hot Dip Galvanizing Steel Frame Photovoltaic Solar Venlo Glass Greenhouse Multi Span 5





Hot Dip Galvanizing Steel Frame Photovoltaic Solar Venlo Glass Greenhouse Multi Span 6
Hot Dip Galvanizing Steel Frame Photovoltaic Solar Venlo Glass Greenhouse Multi Span 7



Hot Dip Galvanizing Steel Frame Photovoltaic Solar Venlo Glass Greenhouse Multi Span 8

1. When can I get the price?
Usually within 24 hours after we get your inquiry. If you are urgent to get the price, please call me or tell me in the email.
2. Can you accept our own design, logo, and pattern?
We can produce it according to your design.
3. Are you a manufacturer or Trading company?
We are a greenhouse manufacturer in Chengdu China, are greenhouse manufacturing, and We also welcome you to visit our factory.
4. When can I get the goods?
Produce time is within 15days, and shipping is usually 20-35days.
5. What is your best price?
The same style of greenhouse can be used in different thicknesses of steel, and different thicknesses of the film. These will have a direct impact on greenhouse prices. And the larger the area, the lower the unit price will be
