Plastic Sheet Uv 200 Microns Single Span Greenhouse For Tropical Climate

Negotiation
MOQ
USD 2-6/sqm
Price
Plastic Sheet Uv 200 Microns Single Span Greenhouse For Tropical Climate
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Singlespan Greenhouse
Application: Vegetable Fruits Flowers
Length: Customizable
Width: Customizable
Color: Clear
Material: Hot Dip Galvanized Steel
Top Height: Standard 2.8m (accept Customized)
Shoulder Height: Standard 1.5m (accept Customized)
Irrigation System: Drip Irrigation System
High Light:

200 Microns Single Span Greenhouse

,

Uv Single Span Greenhouse

,

Tropical Climate Tunnel Plastic Greenhouse

Basic Infomation
Place of Origin: Sichuan,China
Brand Name: BAOLIDA
Certification: ISO9001:2008
Model Number: BLD-912
Payment & Shipping Terms
Packaging Details: standard package
Delivery Time: 15 word days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500000 squre meters per month
Product Description

Greenhouse Plastic Sheet Uv Plastic 200 Microns Agricultural Single-Span Greenhouse For Tropical Climate





Tunnel Plastic Greenhouse Product describe:

Tunnel greenhouses generally have no heating or ventilation, and no power equipment. Sunlight heats the inside much hotter than the outside, creating unusual plant growth inside. Ventilation is usually accomplished by opening, closing, and crimping. The standard width is 8m, It is very convenient to allow small tractors to transport vegetables. the length and height can be customized. The height had better not exceed 4 meters, otherwise, the structure is unstable.



Dimension Related data
Length 60m or customized
Width 8m
Top height 2.8m-4m
Shoulder height 1.5m-2.5m
Arch spacing 1.33m or customized
Arch diameter φ32mm
Arch thickness 1.5mm
Covering material PE film,
Basic equipment Framework,door,insect net,film
Foundation Insert the arch into the ground
Tube material Hot dip galvanized steel tubu
Thickness of PE film 150micron





Advantages

1. Simple structure: galvanized steel frame + plastic film cover + side ventilation.

2. Easy assembly: The precast steel pipe can be easily connected through some fasteners.

3. Large internal space, easy operation and maintenance.

The tunnel greenhouse cost is not high, you can get high yield with low input.

5. Long service life: The steel structure of greenhouse can be used for more than 10 years.

6. Multi-purpose: You can use a small tunnel greenhouse in your garden as a garden greenhouse, or you can have a large scale for your farm.



Covering Material

Clear PE film as the covering material; Thickness usually choose 0.15mm or 0.2mm; Cover the greenhouse with the film of 1 or 2 layers; Has the function of dust-proof and anti-dripping; To reduce water evaporation in soil; UV block treatment; Cost very few, easy to install and maintenance.

Name Thickness Guarantee period Types







Plastic Film

0.06mm 14 month



PVC;

PE;

EVA;

PO



0.08mm 18 month
0.10mm 2 years
0.12mm 3 years
0.15mm 4 years
0.20mm 5 years

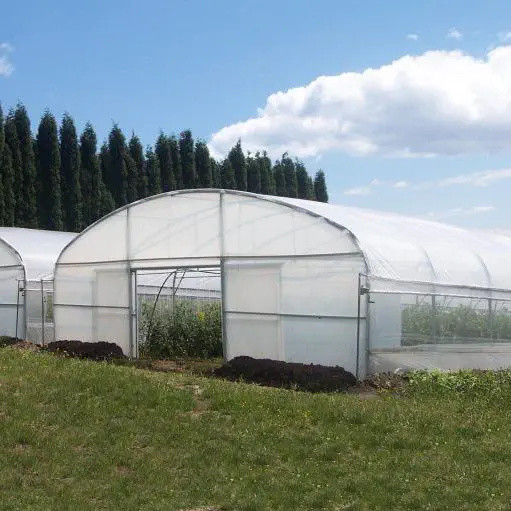

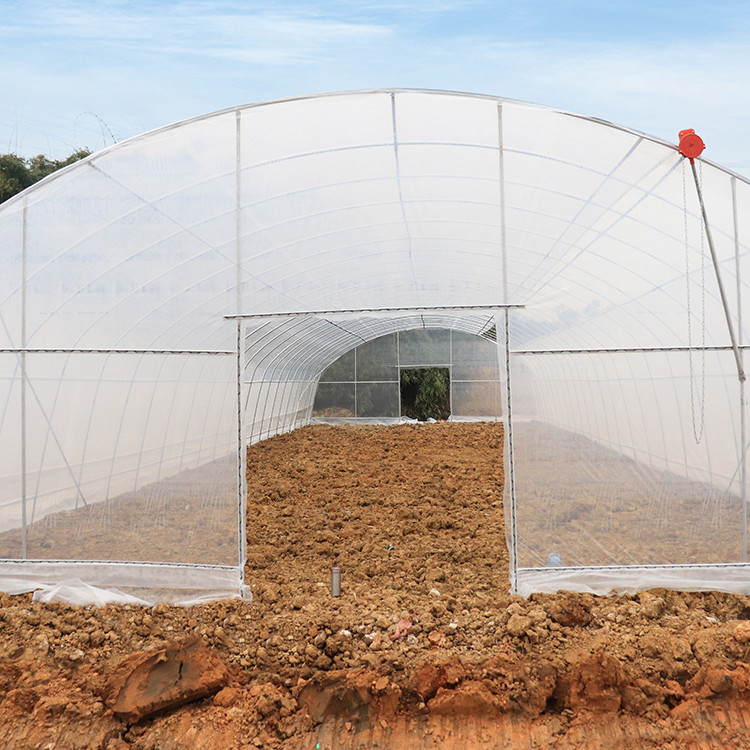

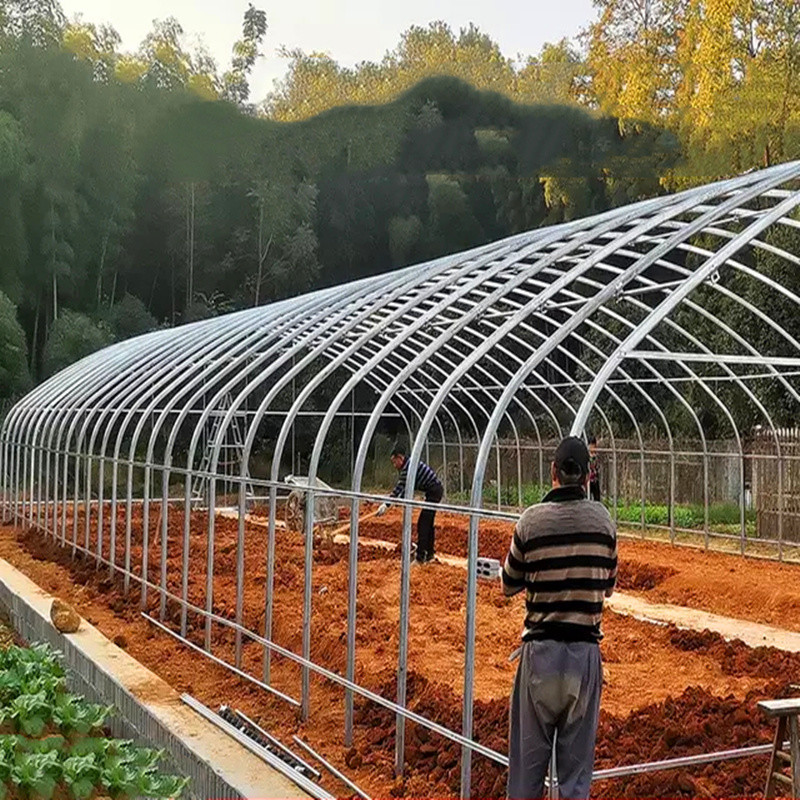

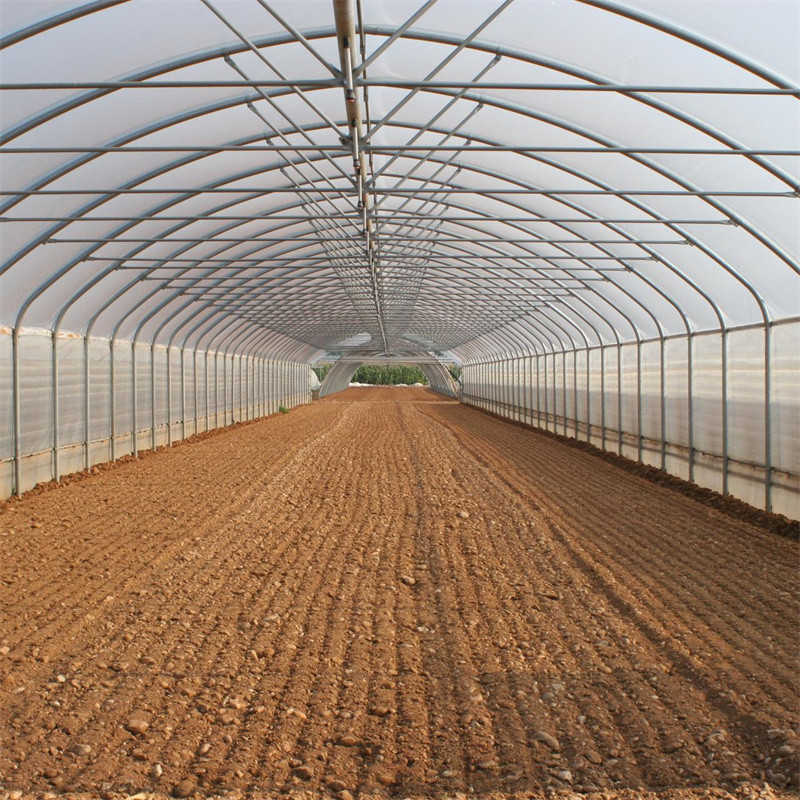

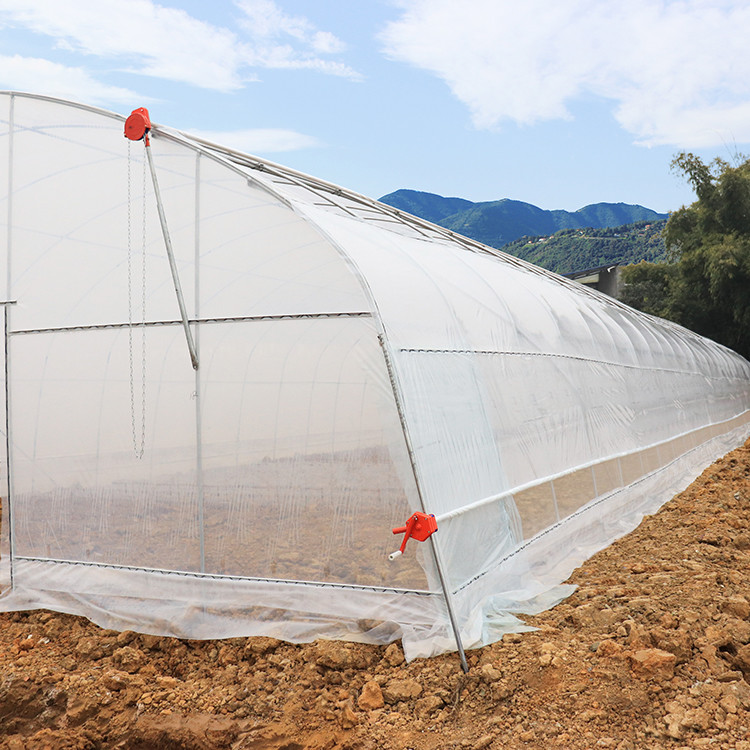

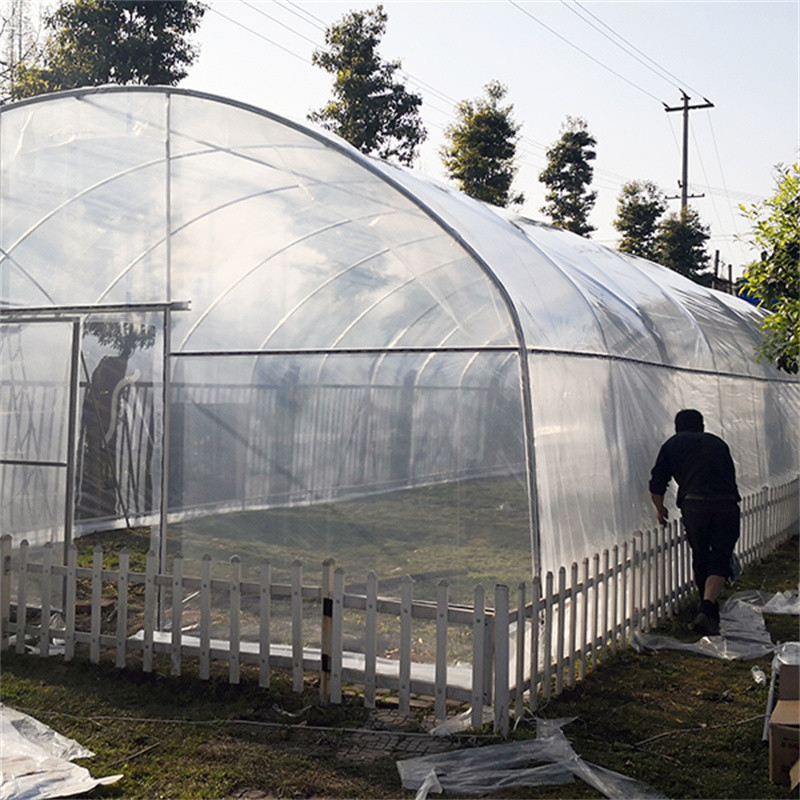

Plastic Sheet Uv 200 Microns Single Span Greenhouse For Tropical Climate 0

Plastic Sheet Uv 200 Microns Single Span Greenhouse For Tropical Climate 1

Plastic Sheet Uv 200 Microns Single Span Greenhouse For Tropical Climate 2Plastic Sheet Uv 200 Microns Single Span Greenhouse For Tropical Climate 3

Plastic Sheet Uv 200 Microns Single Span Greenhouse For Tropical Climate 4

Plastic Sheet Uv 200 Microns Single Span Greenhouse For Tropical Climate 5

Plastic Sheet Uv 200 Microns Single Span Greenhouse For Tropical Climate 6Plastic Sheet Uv 200 Microns Single Span Greenhouse For Tropical Climate 7
Service
1. We can design the most suitable greenhouse for you according to your local climate and your needs.
2. We will give you a detailed quotation, so that you can clearly see the composition of the price.
3. We provide 5-year warranty service for steel pipes and 3-year warranty service for covering materials.
4. we have a professional construction design team, that can give you the production of detailed construction drawings, at the same time to give you remote technical guidance.
5. We also cooperate with many agricultural factories to help you with one-stop shopping.


FAQ
1. When can I get the price?
Usually within 24 hours after we get your inquiry. If you are urgent to get the price, please call me or tell me in the email.
2. Can you accept our own design, logo and pattern?
We can produce it according to your design.
3. Are you a manufacturer or Trading company?
We are a greenhouse manufacturer in Chengdu China, we are greenhouse manufacturing, and We also welcome you to visit our factory.
4. When can I get the goods?
Produce time is within 15days, and shipping is usually 20-35days.
5. What is your best price?
The same style of greenhouse can be used in different thicknesses of steel, and different thicknesses of film. These will have a direct impact on greenhouse prices. And the larger the area, the lower the unit price will be
Spec.
