Thailand Multi Span Automatic Vent Greenhouse Electric Tropical Climate Controlled

Negotiation
MOQ
USD 2-6/sqm
Price
Thailand Multi Span Automatic Vent Greenhouse Electric Tropical Climate Controlled
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Umbrella Roof Vent Greenhouses
Application: Vegetable Fruits Flowers
Length: Customizable
Width: Customizable
Color: Clear
Material: Hot Dip Galvanized Steel
Top Height: Standard 2.8m (accept Customized)
Shoulder Height: Standard 1.5m (accept Customized)
Irrigation System: Drip Irrigation System
High Light:

Multi Span Automatic Vent Greenhouse

,

Tropical Electric Automatic Vent Greenhouse

,

2.8m Tunnel Plastic Greenhouse

Basic Infomation
Place of Origin: Sichuan,China
Brand Name: BAOLIDA
Certification: ISO9001:2008
Model Number: BLD-913
Payment & Shipping Terms
Packaging Details: standard package
Delivery Time: 15 word days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500000 squre meters per month
Product Description

Thailand Multi-Span Automatic Vent Greenhouse Electric Tropical Climate Controlled Greenhouse Ridge Vent





Umbrella Greenhouse Product describe:

The greenhouses generally have no heating or ventilation, and no power equipment. Sunlight heats the inside much hotter than the outside, creating unusual plant growth inside. Ventilation is usually accomplished by opening, closing, and crimping. The standard width is 8m, It is very convenient to allow small tractors to transport vegetables. the length and height can be customized. The height had better not exceed 4 meters, otherwise, the structure is unstable.

Thailand Multi Span Automatic Vent Greenhouse Electric Tropical Climate Controlled 0

Dimension Related data
Length 60m or customized
Width 8m
Top height 2.8m-4m
Shoulder height 1.5m-2.5m
Arch spacing 1.33m or customized
Arch diameter φ32mm
Arch thickness 1.5mm
Covering material PE film,
Basic equipment Framework,door,insect net,film
Foundation Insert the arch into the ground
Tube material Hot dip galvanized steel tubu
Thickness of PE film 150micron



  • width of the house is 6 meters up to 100 meters, the length is 20 meters up to 500 meters, height is 6 meters and the standard size is 6-8-10 meters or more, standard length. 20-30-40-60-100 meters or more
  • House structure All galvanized steel, the pole is box galvanized steel 2x2 inches thickness 1.2 mm, Beams, Side beams and Buffer room is box galvanized steel 2x1 inches thickness 1.2 mm. Curve roof, Arm support, Mast, Armrest is pipe galvanized steel 1 inch thickness 1.2mm. Beam cross on top curve roof and beam cross on normal beams is pipe galvanized steel 3/4 inch thickness 1.2 mm. 10 year or more structural life.
  • Material Cover, Roof covered with white plastic PE, thickness 200 microns.Side covered with 32 mesh white insect net.(We can make to customize Increased such as 40, 50 mesh) Life expectancy of 3-5 years
  • Film and Insect Net Fixation; Greenhouse rail and zig-zag spring
  • The door is poly carbonate transparent and double door, open - closed sliding with box room.
  • Ventilation air from the side of house. And on the roof of house. Through the insect net.
  • All concrete footing are 0.3x0.3x0.3 m. And increase when make more size of the house is 0.4x0.4x0.4 meters or 0.5x0.5x0.5 meters.
  • If it is a twin house.There is a stainless steel gutter between the houses. Thicness 0.8 mm.
  • The whole house structure is knock down.

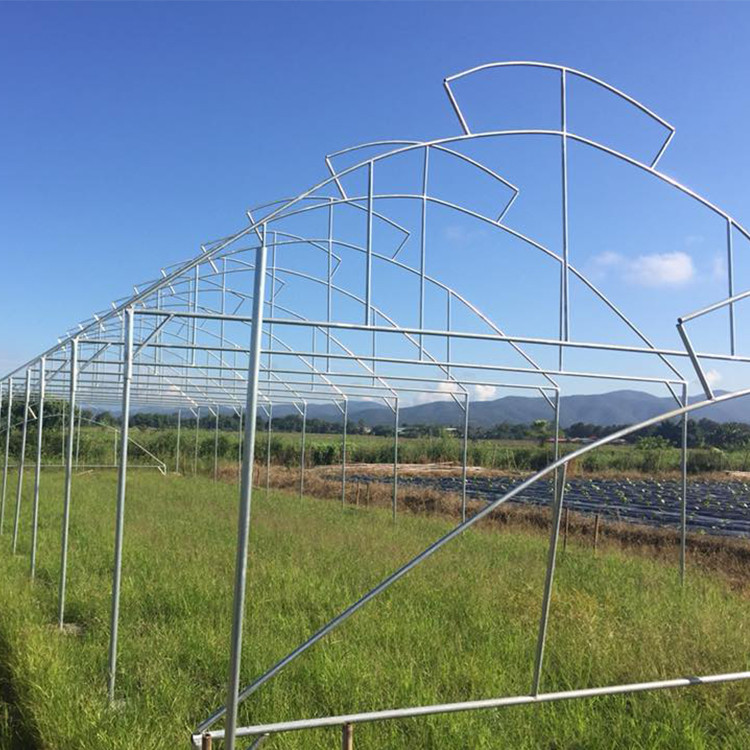

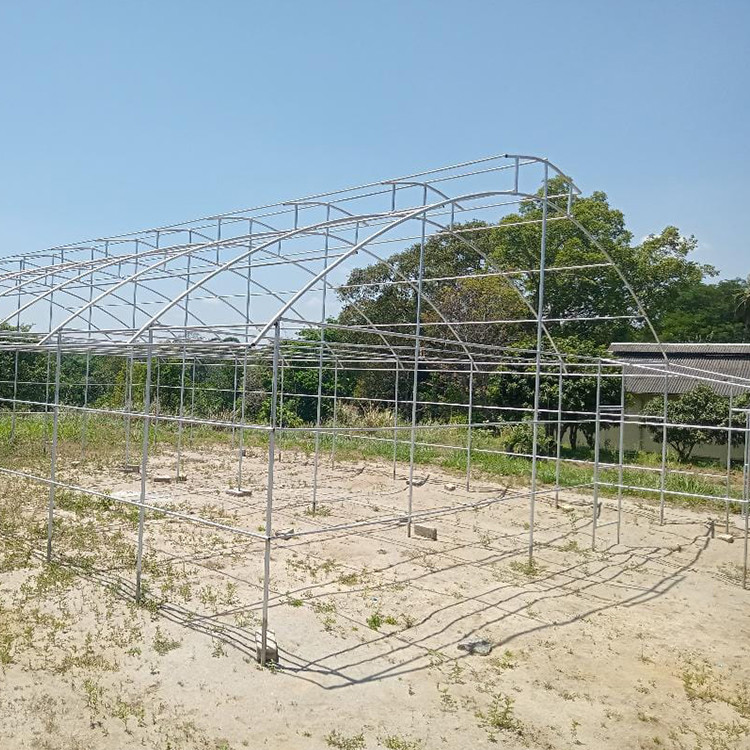

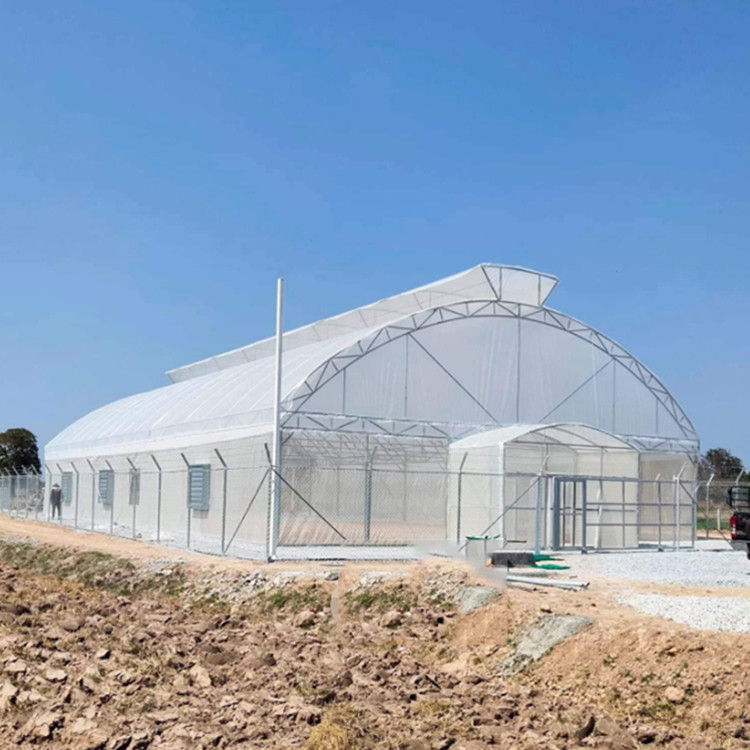

Thailand Multi Span Automatic Vent Greenhouse Electric Tropical Climate Controlled 1Thailand Multi Span Automatic Vent Greenhouse Electric Tropical Climate Controlled 2

Thailand Multi Span Automatic Vent Greenhouse Electric Tropical Climate Controlled 3

Greenhouse Application
  • Suitable for growing plants Vegetables such as salad
  • Kale, Chinese cabbage, turnip greens, morning glory and so on. It is also suitable for plants that need to grow up or vineyards such as melon, cantaloupe, tomato, strawberry
  • Suitable for planting all kinds of plants such as Vegetables, flowers, fruit trees, palm trees and rubber trees.
  • Suitable for crops that require high yields, Clean output, Safe and fresh colors, The size of standard.
  • To protect against insect pests cause damage to plants.

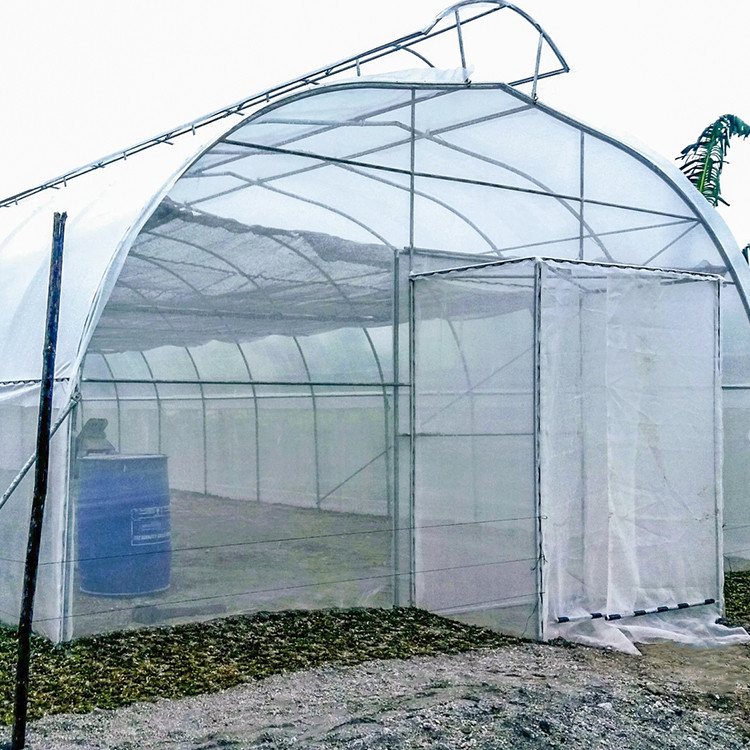

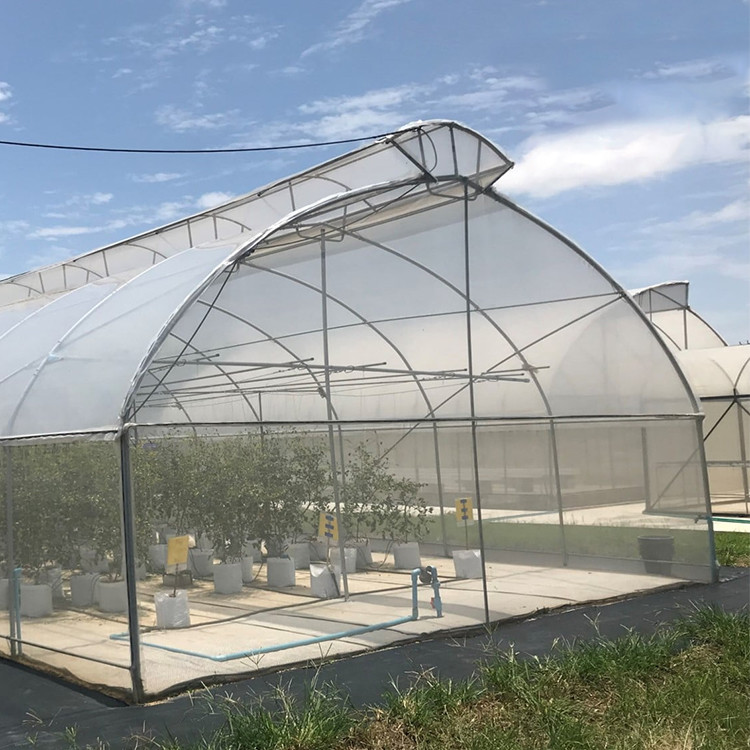

Thailand Multi Span Automatic Vent Greenhouse Electric Tropical Climate Controlled 4

Thailand Multi Span Automatic Vent Greenhouse Electric Tropical Climate Controlled 5

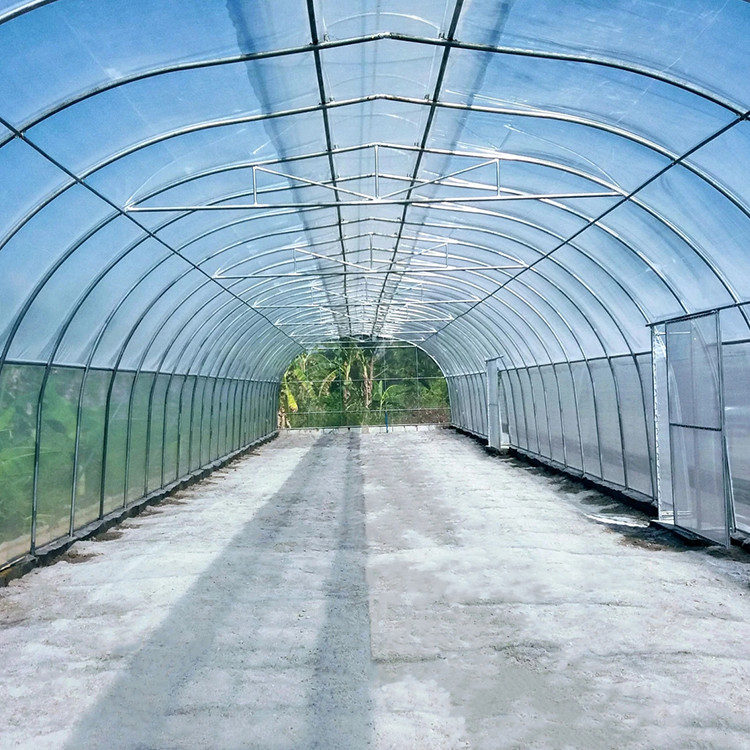

Thailand Multi Span Automatic Vent Greenhouse Electric Tropical Climate Controlled 6Thailand Multi Span Automatic Vent Greenhouse Electric Tropical Climate Controlled 7
Service
1. We can design the most suitable greenhouse for you according to your local climate and your needs.
2. We will give you a detailed quotation, so that you can clearly see the composition of the price.
3. We provide 5-year warranty service for steel pipes and 3-year warranty service for covering materials.
4. we have a professional construction design team, that can give you the production of detailed construction drawings, at the same time to give you remote technical guidance.
5. We also cooperate with many agricultural factories to help you with one-stop shopping.


FAQ
1. When can I get the price?
Usually within 24 hours after we get your inquiry. If you are urgent to get the price, please call me or tell me in the email.
2. Can you accept our own design, logo and pattern?
We can produce it according to your design.
3. Are you a manufacturer or Trading company?
We are a greenhouse manufacturer in Chengdu China, we are greenhouse manufacturing, and We also welcome you to visit our factory.
4. When can I get the goods?
Produce time is within 15days, and shipping is usually 20-35days.
5. What is your best price?
The same style of greenhouse can be used in different thicknesses of steel, and different thicknesses of film. These will have a direct impact on greenhouse prices. And the larger the area, the lower the unit price will be
Spec.
