Clear UV Treated Film Anti Rust Metal Structure Tunnel Greenhouse

Negotiation
MOQ
USD 2.5-6/sqm
Price
Clear UV Treated Film Anti Rust Metal Structure Tunnel Greenhouse
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Clear UV Treated Film Anti Rusted Mental Structure Tunnel Greenhouse
Material: UV Film
Feature: Anti Rusted
Key Word: UV Treated Film Anti Rusted Mental
Advantage: Provide Good Growing Environment
Size: Customized
High Light:

150mic UV Treated Film Tunnel Greenhouse

,

4m Width Tunnel Greenhouse

,

200mic Polyethylene Film Greenhouse

Basic Infomation
Place of Origin: Sichuan China
Brand Name: Baolida
Certification: ISO9001:2008
Model Number: BLD-201021
Payment & Shipping Terms
Packaging Details: Standard package
Delivery Time: 7-15days after receiving payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000000ton/ month
Product Description

Clear UV Treated Film Anti Rusted Mental Structure Tunnel Greenhouse





Tunnel Greenhouse Introduction:



High tunnel greenhouse is a simple and practical cultivation or breeding equipment, easy to construct and easy to use. Tunnel greenhouses are widely used in the cultivation of vegetables, fruits and flowers. The tunnel greenhouse can provide suitable light, humidity and temperature conditions, increase production and resist natural disasters. It can advance or postpone regulations to ease the contradiction between regulations and requirements.



Tunnel Greenhouse Component:



1. Steel structure

The main galvanized frame(The main column according to the wind load and snow load).



2. Cover.

The greenhouse film (PE, PVC, EVA, PO) has different thickness (from 80 micro to 200 micro).



3. Ventilation system

There are two type, they are mannual and motor ventilation. Our standard ventilation system is on both sides, we can also provide roof ventilation for choice.



4.Door

Standard greenhouse door is sliding door.

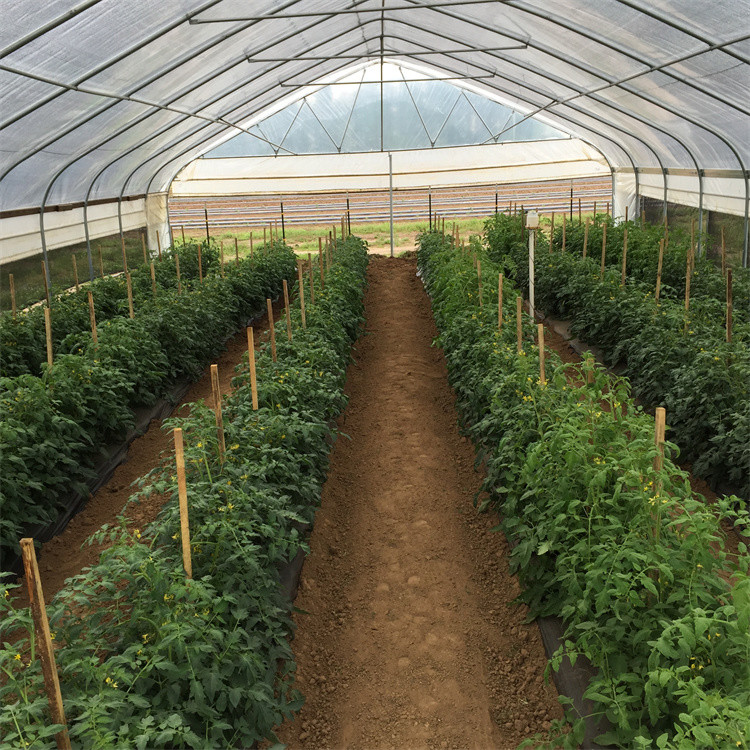

Clear UV Treated Film Anti Rust Metal Structure Tunnel Greenhouse 0


Tunnel Greenhouse Overview:



The plastic greenhouse is a single-span structure with small width and long length. In the selection of greenhouse structure, the planting mode of indoor crops must first be considered, and it must also be adapted to the planting conditions of this narrow and long area. From the analysis of structural forces, the lateral wind resistance of the greenhouse is strong, but the longitudinal wind resistance is weak. Therefore, the wind resistance of the two ends of the shed head (gable wall) column in the greenhouse design will directly affect the wind resistance of the greenhouse structure. In order to strengthen the overall wind resistance of the greenhouse, it is generally required to have diagonal supports at both ends of the greenhouse to support the top of the gable column. In addition, the foundation should be firmly fixed to each arch. The arch without foundation should be firmly anchored by screw anchors. Fixed in the ground soil.



Tunnel Greenhouse Feature:



The plastic greenhouse has high light transmittance, and the temperature rises quickly under sufficient light conditions. Usually, it can maintain an indoor and outdoor temperature difference of more than 10 ℃ during the day. But at night when there is no auxiliary heat source such as the sun's radiation, the temperature drops very quickly. By the early morning, the indoor temperature is basically the same as the outdoor temperature. If it is a clear night, the indoor temperature in the early morning will even be lower than the outdoor temperature. This is called a greenhouse. The phenomenon of "inverse temperature difference". Special attention should be paid to the prevention of this inverse temperature difference in production management.



Clear UV Treated Film Anti Rust Metal Structure Tunnel Greenhouse 1



Tunnel Greenhouse Advantage:



The main advantages of plastic greenhouses are convenient construction and low cost. Generally, the film is changed in the same year, the indoor lighting is good, the roll film opens the window, the natural ventilation effect is good, and the north cannot be produced through winter.



Greenhouse Parameter:



Product Type Tunnel greenhouse
Width 4m-10m (13.12'-32.8')
Column Space 1m/1.5m/2m(3.28'/4.92'/6.26')
Wall Height 1.5m-2.5m(4.92'-8.2')
Roof Height 2.5m-4m(8.2'-13.12')
Covering Martial 150 or 200 micro plastic film
Natural Ventilation Motor driven or manual rolling vents on two sides
Optional Systems Pat&fan cooling system;heating system;shading system;drip irrigation system;fogging system;lighting system;hydroponic system;plants climbing system;weed mat;plant pot;seed tray etc.



Clear UV Treated Film Anti Rust Metal Structure Tunnel Greenhouse 2

Clear UV Treated Film Anti Rust Metal Structure Tunnel Greenhouse 3


Transportation
Clear UV Treated Film Anti Rust Metal Structure Tunnel Greenhouse 4

Production
Clear UV Treated Film Anti Rust Metal Structure Tunnel Greenhouse 5

Certificate
Clear UV Treated Film Anti Rust Metal Structure Tunnel Greenhouse 6

Customer visit and praise
Clear UV Treated Film Anti Rust Metal Structure Tunnel Greenhouse 7
Clear UV Treated Film Anti Rust Metal Structure Tunnel Greenhouse 8

Service
1. We can design the most suitable greenhouse for you according to your local climate and your needs.
2. We will give you a detailed quotation, so that you can clearly see the composition of the price.
3. We provide a 5-year warranty service for steel pipes and a 3-year warranty service for covering materials.
4. we have a professional construction design team, can give you the production of detailed construction drawings, at the same time to give you remote technical guidance.

Clear UV Treated Film Anti Rust Metal Structure Tunnel Greenhouse 9
