Single Span Plastic Film Tunnel Greenhouse Anti Corrosion Vegetable Growing
Negotiation
MOQ
Negotiation
Price
Single Span Plastic Film Tunnel Greenhouse Anti Corrosion Vegetable Growing
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: SICHUAN,CHINA
Brand Name: BAOLIDA
Certification: ISO9001:2008
Model Number: BAOLIDA012
High Light:

Single Span Plastic Film Tunnel Greenhouse

,

Anti Corrosion Plastic Film Tunnel Greenhouse

,

Vegetable Polyethylene Foil Greenhouse 200mic

Payment & Shipping Terms
Packaging Details: Standard greenhouse package
Delivery Time: 7-30 work days
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 square meter one month
Specifications
Size: Large
Material: PE
Type: Single-Span Agricultural Greenhouse
Cover Material: Film
Layer: Single
Product Name: Ecological Agricultural Greenhouse
Color: Transparent
Optional System: Cooling System.irrigation System.ventilation.etc
Product Description

Plastic Film Greenhouse Vegetable Growing Single Span Tunnel Greenhouse



Single Span Plastic Film Tunnel Greenhouse Anti Corrosion Vegetable Growing 0

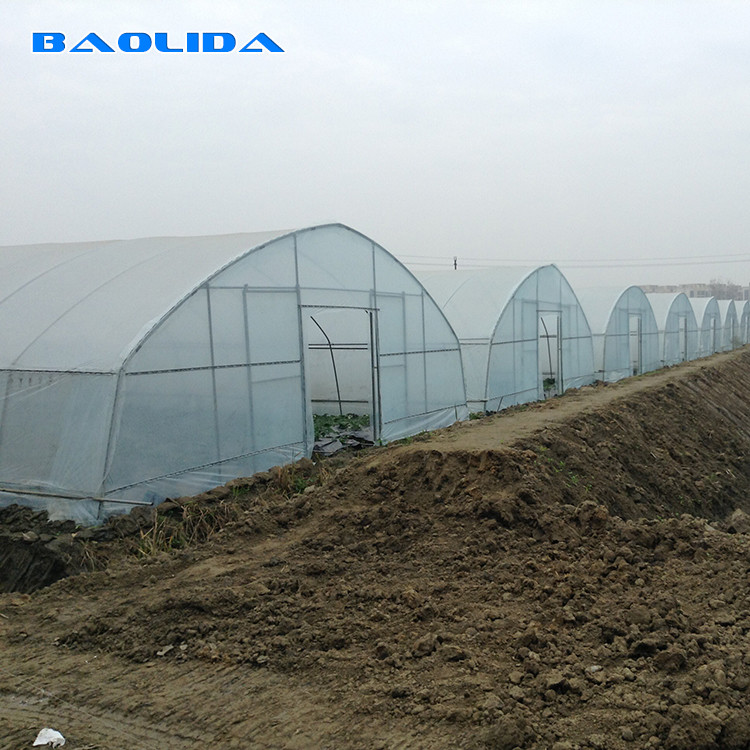

Single-span Tunnel Greenhouse:



Single-span tunnel greenhouse is one of the most commercail greenhouse,it is always consist of steel structure,film cover,ventilation system as the basis of whole greenhouse.other system like shading, irrigation,colling etc could be added as your requirements.Since it is easy to install and commercial enough,it's a good choice for vegitable growing for somewhere weather condition not too bad.



Greenhouse Frame:



A. From the structure design to the material choose,all depend on the reality situation.
B. Particular oval pipes make the structure stronger compare to the equivalent size round pipe.
C. Stronger enough to bearing the local worst weather
D. Excellent anti-corrosion effect with superior galvanized steel
E. All fastener connecting makes the installation easier,structure more stable and service life longer



Greenhouse Film:



A. 80 micron to 200 micron PE film

B. Three-layer co-extrusion technology

C. High tensile strength

D. Ultraviolet-proof

E. Long service life



ITEM PARAMETER
Width 6m-12m
Length 10m-100m
Covering material PE/PO film (0.08 / 0.10 / 0.12 / 0.15 / 0.2mm)
Feature Easily installed
Life span 10-20years
Application Flower, vegetable, fruit, corp
Service Provide installation instruction
Shipping By sea or by air

Ventilation System

Top ventilation: All the middle spans have two electric roll up motors and both of side spans have one electric roll up motor. Side ventilation: Both sides have two electric roll up motors.

Each motor is 60w with climber and cable film fixed parts, rolling up 60m plastic film.





Single Span Plastic Film Tunnel Greenhouse Anti Corrosion Vegetable Growing 1

Single Span Plastic Film Tunnel Greenhouse Anti Corrosion Vegetable Growing 2

Single Span Plastic Film Tunnel Greenhouse Anti Corrosion Vegetable Growing 3Single Span Plastic Film Tunnel Greenhouse Anti Corrosion Vegetable Growing 4
