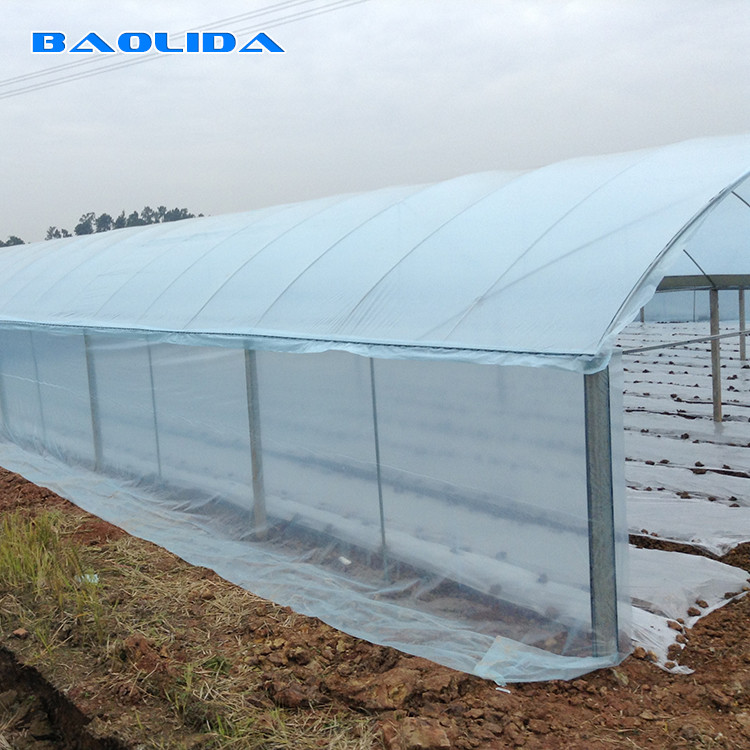

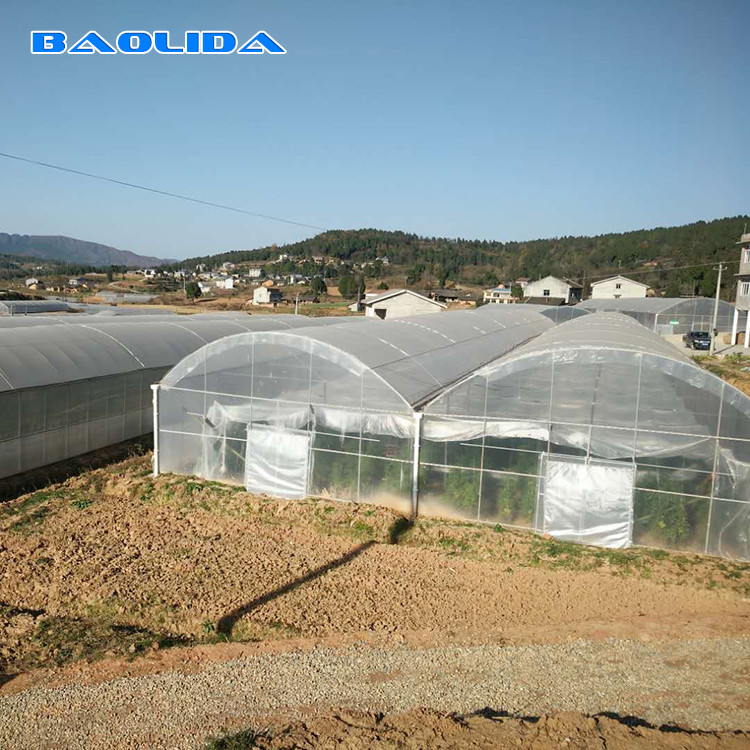

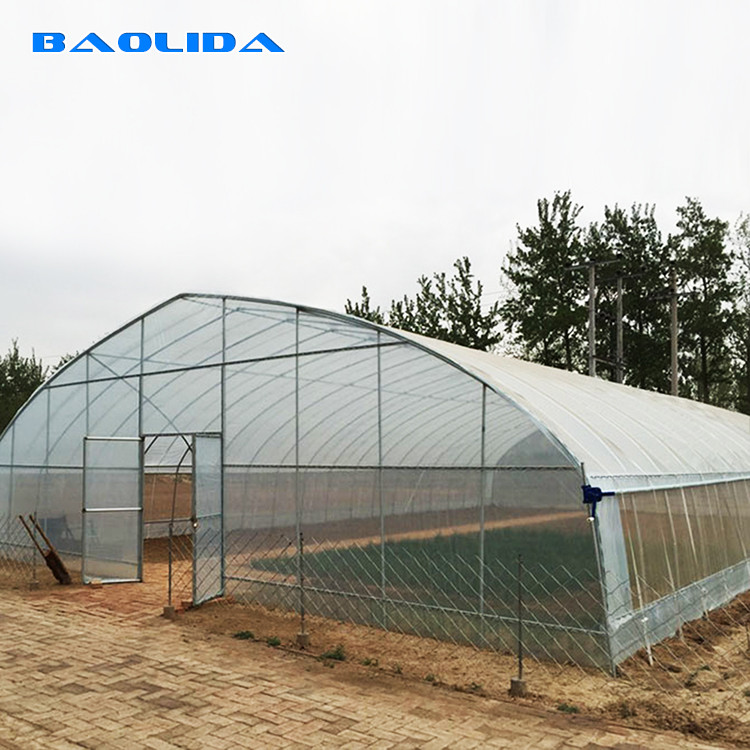

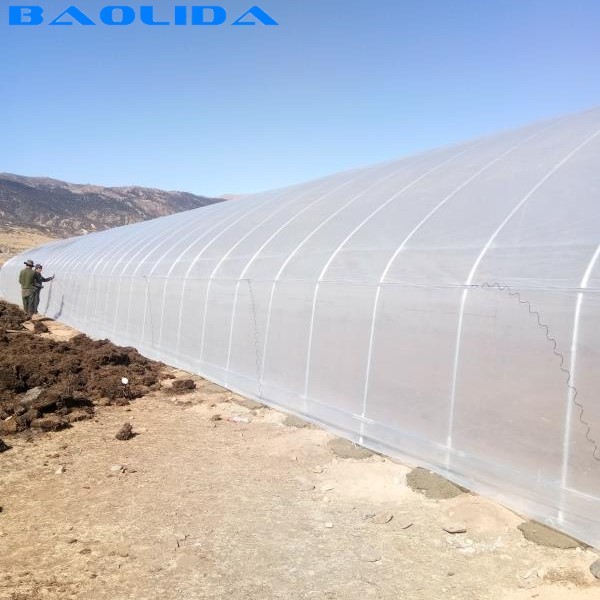

Film Greenhouse Vegetable Growing Tunnel Greenhouse
Brief introduction
This greenhouse is simply installed, is framed by galvanized tubes. There is no upright column in the greenhouse, so it’s strengthening the lighting effects and good for the mechanical operations, promoting the land-utilizing ability.

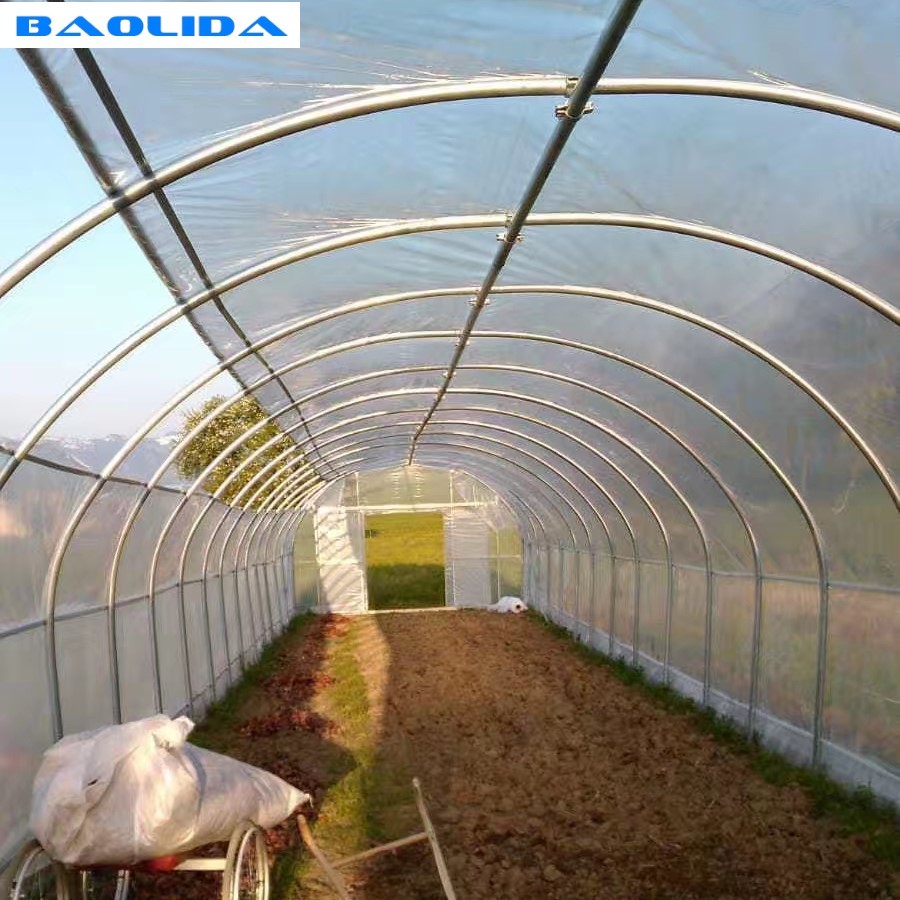

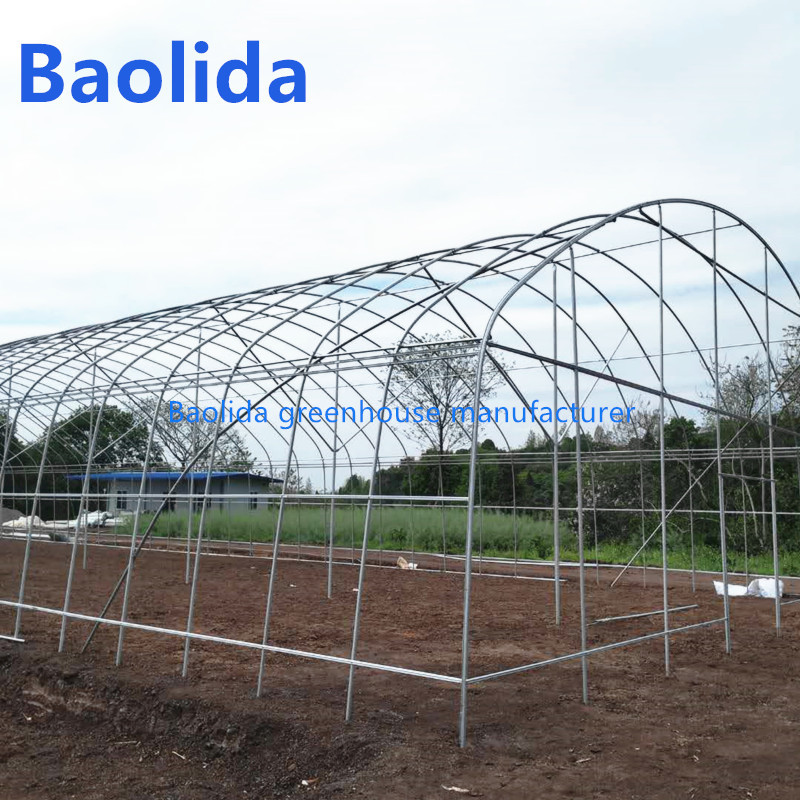

Greenhouse Framework:
Our greenhouse is the simplest structure greenhouse, the lowest cost and the easiest to install. The skeleton is the main structure of the tunnel greenhouse. It includes frame, door, ridge, arch, pillar and so on. Single-span greenhouses are usually within the maximum range of use of our products: maximum land use, simple installation, high life and long life. It is also easy to transport apart. Therefore, the cost will be the lowest and most profitable.
Greenhouse Film:
A. 80 micron to 200 micron PE film
B. Three-layer co-extrusion technology
C. High tensile strength
D. Ultraviolet-proof
E. Long service life
Greenhouse Parameter:
| Item | parameter |
| Width | 6m-10m |
| Length | 10m-70m |
| Total Height | 2.8m-3.5m |
| Covering material | PE/PO film ( 0.08/0.10/0.12/0.15/0.2mm) |
| Basic equipment | Framework , windows on both sides |
| Supporting system ( choose according to your needs ) | Cooling system & irrigation system |
| The arch distance | 1m/1.2m |
| Number of ridge | 1/3 |
| Foundation | Insert the tube into the ground 40/50 cm |
Top ventilation: All the middle spans have two electric roll up motors and both of side spans have one electric roll up motor. Side ventilation: Both sides have two electric roll up motors.
Each motor is 60w with climber and cable film fixed parts, rolling up 60m plastic film.
Packaging and delivery
Customers can choose air, rail or transport as a practical situation.
Delivery time:
Send within 15 days after payment
Port: Shanghai/guangzhou/tianjin
Lead time: 10 days after payment
