Hot Dip Galvanized Vegetable Growing Agricultural Greenhouse
Introduction:
Planning in a tall tunnel or sculpture provides an easy and cost-effective way to better control your growth environment and extend the growing season. These structures are ideal for vegetables, small fruits, cut flowers etc. and can increase your crop yield, quality, set your growing shelter and use one of our cold resistant frames to choose your own shelter or buy a high tunnel to control the temperature and prevent built-in wind, rain, pests and diseases.
Greenhouse Framework:

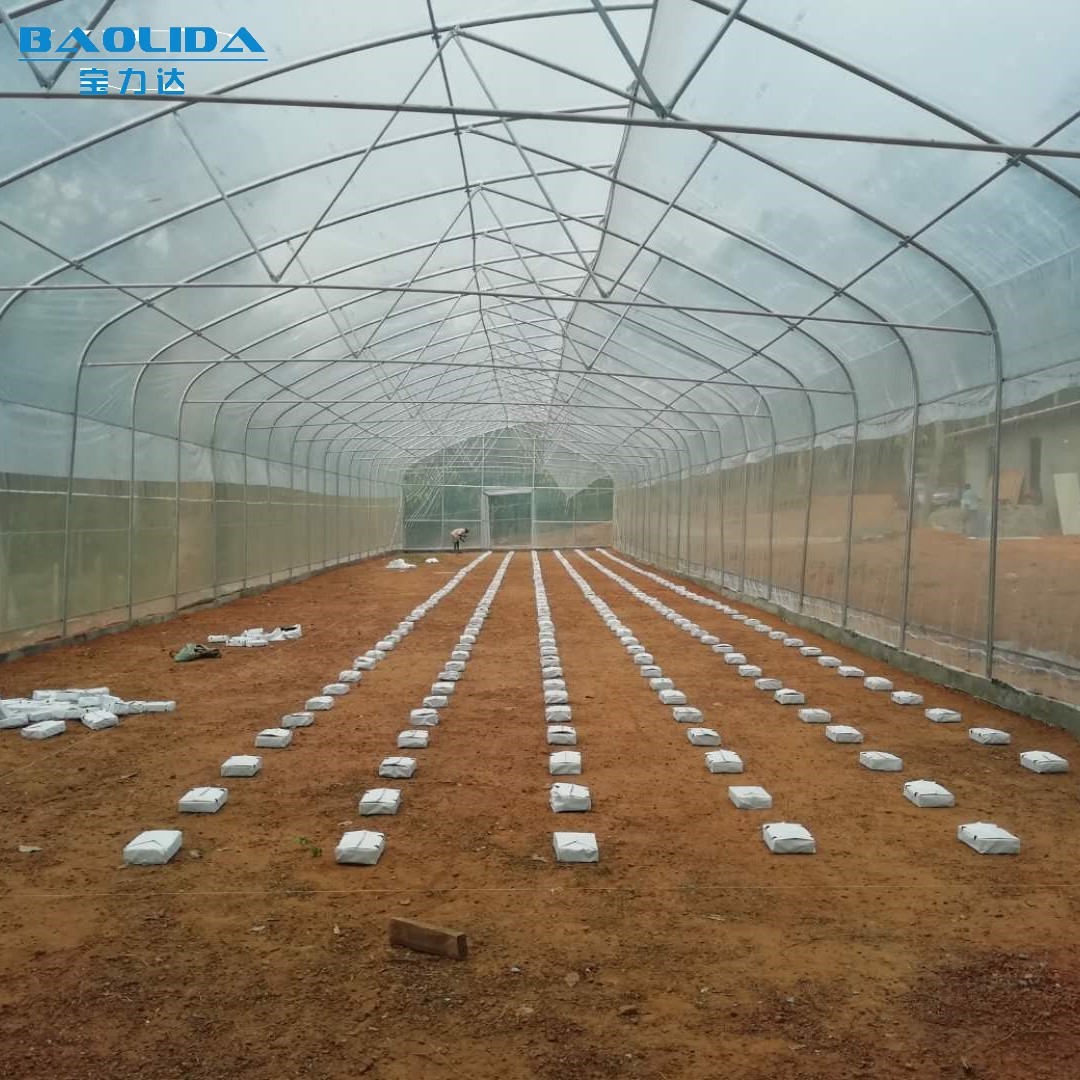

Our greenhouse is the simplest structure greenhouse, the lowest cost and the easiest to install. The skeleton is the main structure of the tunnel greenhouse. It includes frame, door, ridge, arch, pillar and so on. Single-span greenhouses are usually within the maximum range of use of our products: maximum land use, simple installation, high life and long life. It is also easy to transport apart. Therefore, the cost will be the lowest and most profitable.
Advantage:
- elegant appearance, economical & practical, large inner space
- cheap, simple and easy to install
- especially for winter culture in warm area
- Preventing seedling from being damaged by gale, downfall and hail.
- Preventing crops being damaged by aphis, insect, whitefly etc.
Parameter:
| Description | Technical Data details |
|
Single-span Film Tunnel Greenhouse |
Wind load: 0.4 KN/m² |
| Snow load: 0.5 KN/m² | |
| Rainfall: 140 mm³/h | |
| Dead load: 25 KG/m² | |
| Hanging load: 50 KG/m² | |
| Span Width(m): 6.0 ~ 15.0 14.0 ~ 22.0 | |
| Bay Width(m): 0.8 ~ 1.2 | |
| Roof Height(m): 3.0~ 4.5 | |
| Skeleton Material: high quality hot galvanizing Steel pipe | |
| Covering Material: PO film / EVA film (2 layers is possible) | |
| Outside Insulation: high quality quilt | |
| Support system: side ventilation system (by film rolling up machine) | |
| We can supply customized design just as per your requests! | |
Ventilation System
Top ventilation: All the middle spans have two electric roll up motors and both of side spans have one electric roll up motor. Side ventilation: Both sides have two electric roll up motors.
Each motor is 60w with climber and cable film fixed parts, rolling up 60m plastic film.
Packaging and delivery
Customers can choose air, rail or transport as a practical situation.
Delivery time:
Send within 15 days after payment
Port: Shanghai/guangzhou/tianjin
Lead time: 10 days after payment
