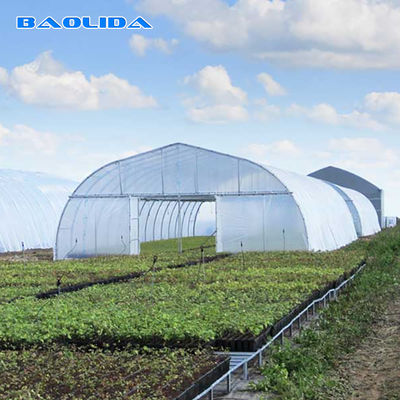

Hot Dip Galvanized High Latitude Area Ecological Agricultural Greenhouse
1. Planning in a tall tunnel or sculpture provides an easy and cost-effective way to better control your growth environment and extend the growing season. These structures are ideal for vegetables, small fruits, cut flowers etc. and can increase your crop yield, quality, set your growing shelter and use one of our cold resistant frames to choose your own shelter or buy a high tunnel to control the temperature and prevent built-in wind, rain, pests and diseases.
2. Tunnel greenhouses are usually ventilated without heat and power supply. Sunlight heats the room much hotter than the outside, producing abnormal plant growth inside. Ventilation usually occurs by starting and then rolling up the sides.
3. The purpose of our tunnel is to reduce the risk of crop loss caused by heavy rain and to start planting in early spring so that farmers can harvest early.
1. The main framework designed to meet the "GB50017-2003Steel Design Code";
2. 2.The steel material meets the "GB700-88carbon steel";
3. 3.Hot dip galvanizing layer steel products technical requirements hot.
1. Simple structure: galvanized steel frame + plastic foil covers + side ventilation.
2. Easy to assemble: Prefabricated steel pipes can easily be connected with some screws.
3. Large internal space, convenient operation and maintenance.
Four.The cost of the tunnel greenhouse is not high and high production can be achieved with low inputs.
5. Long service life: The steel structure in the greenhouse can be used for more than ten years.
6. Versal: You can use a small tunnel greenhouse as a greenhouse in your garden or a large greenhouse in your yard.
Frame Structure Parameters
|Description||Technical Data details|
|Wind load: 0.4 KN/m²|
|Snow load: 0.5 KN/m²|
|Rainfall: 140 mm³/h|
|Dead load: 25 KG/m²|
|Hanging load: 50 KG/m²|
|Span Width(m): 6.0 ~ 15.0 14.0 ~ 22.0|
|Bay Width(m): 0.8 ~ 1.2|
|Roof Height(m): 3.0~ 4.5|
|Skeleton Material: high quality hot galvanizing Steel pipe|
|Covering Material: PO film / EVA film (2 layers is possible)|
|Outside Insulation: high quality quilt|
|Support system: side ventilation system (by film rolling up machine)|
|We can supply customized design just as per your requests!|
Clean PE film of this type of boron line is preferred by many panels as a vibrating gas; multi-layered weight; length 0.08 mm, 0.12 mm, 0.15 mm, 0.2 mm; silica gas is covered with 1 or 2 layers of film; no fertilization and anti-dumping work; 0.08 mm, 0.12 mm, 0.15 mm, 0.2 mm; UV block treatment; 0.08 mm, 0.12 mm, 0.15 mm, 0.2 mm are very small, easy to form and maintain.
|Plastic Film||0.06mm||14 month|
The ventilation system can be the most necessary system for a greenhouse, can maintain air circulation in the greenhouse and effectively prevent crop pests and diseases due to the anti-insect network. Manual ventilation system, this system consists of manual roll, roll-over pipe, escalation roll rod, 40-mesh anti-insect network, etc. The engine-driven ventilation system consists of electric motor, transmission bearing system, roll tube, 40-mesh anti-insect network, etc.
