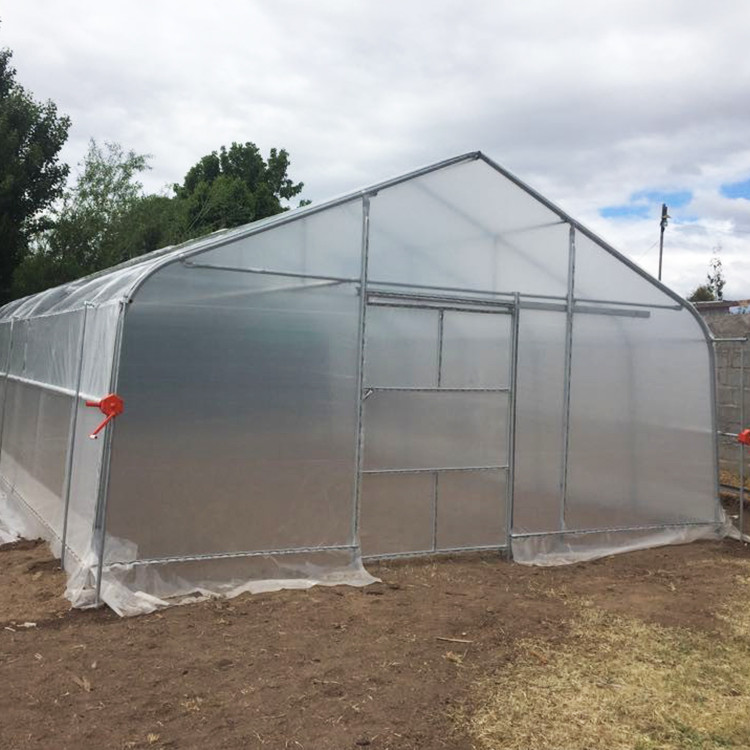

Single Span High Tunnel Greenhouse Single Layer Film For Tomatoes Agricultural

Basic Information
Place of Origin: CHINA
Brand Name: BAOLIDA
Certification: ISO9001:2008
Model Number: BAOLIDA01
Minimum Order Quantity: 1 set
Price: USD 2-6/sqm
Packaging Details: Standard greenhosue package
Delivery Time: 7-14 WEEK DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500000 SQUARE METERS ONE MONTH
Features: Easily Assembled Product Name: High Tunnel Single Span Single Layer Agricultural Greenhouses Film Agricultural For Tomatoes Agricultural
Width: 6m-12m Usage: Agricultural Protect
Covering: 100/120/150/200micro PE Film Material: Hot Dip Galvanized Steel Pipe
Production Time: 7 Days Type: Agricultural Use
Ventilation System: Side Ventilation With Insect Net Function: Structure Is Flexible, Strong Applicability And Wide Applicable Scope
High Light:

Single Span High Tunnel Greenhouse

,

Single Layer Film High Tunnel Greenhouse

,

Tomatoes Tunnel Plastic Greenhouse

High Tunnel Single Span Single Layer Agricultural Greenhouses Film Agricultural For Tomatoes Agricultural



Description

The plastic film tunnel greenhouse is simple and practical equipment for cultivation or breeding, it is easy to construct, convenient to use. Tunnel greenhouse is widely used in the cultivation of vegetables, fruits and flowers. Tunnel greenhouse can provide the conditions of suitable illumination, moisture and temperature, raising the output and resisting natural disasters. It can bring forward or backward the provision, remitting the contradictions of provision and demand.



Detail



Main Frame
Hot Galvanized Steel Pipe
Covering Material
PE Film
Covering Material Lifetime
3-5 years
Column Shape
Rectangular/ round
Span
8m/9m/10m/12m
Width Between Columns
4m
Layer
1 layer
Top Height
3m-5m
Gutter Height
2.5m-6.5m
Wind Load
0.4KN/m²
Snow Load
0.3KN/m²



Film:

PE plastic single or double layer, different thickness according to the design. PE film has good properties of flow drop, weathering resistance, light transmittance and temperature preservation. It is a wide variety of agricultural film, which can be used not only in greenhouse but also on a large scale. Medium and small greenhouse, and energy-saving greenhouse early spring stubble cultivation is also more suitable.



Greenhouse Framework:

Our greenhouse is the simplest structure greenhouse with the lowest cost and the most convenient installation. The framework is the core structure of the tunnel greenhouse. It includes the groove, the door, the ridge, the arch, the end column and so on. The single-span greenhouse is usually in between 6m to 12m. Our product advantages are maximum use of the land area, simple installation, strong durability and long service life. Also, it is very convenient to disassemble for transport. So the cost will be the lowest and most cost-effective one



Product Application
Widely used for Low or High Single Tunnel Greenhouse and Multi Span Greenhouse, as protecting cover for fruit(strawberry, cherry, grape, watermelon, muskmelon and so on), vegetable(tomato, potato, eggplant, pepper, bean, cucumber, celery, onion and so on), flowers,poultry farming,edible mushrooms cultivation and so on.



Single Span High Tunnel Greenhouse Single Layer Film For Tomatoes Agricultural 0Single Span High Tunnel Greenhouse Single Layer Film For Tomatoes Agricultural 1

Single Span High Tunnel Greenhouse Single Layer Film For Tomatoes Agricultural 2

Single Span High Tunnel Greenhouse Single Layer Film For Tomatoes Agricultural 3



Packing and Delivery

1. The products are usually tied with packing tape.The packaging size and container capacity of the product are different from the product specifications
2. Container transportation, according to your project request. Production time usually costs 10-20 days.



Single Span High Tunnel Greenhouse Single Layer Film For Tomatoes Agricultural 4Single Span High Tunnel Greenhouse Single Layer Film For Tomatoes Agricultural 5

Single Span High Tunnel Greenhouse Single Layer Film For Tomatoes Agricultural 6Single Span High Tunnel Greenhouse Single Layer Film For Tomatoes Agricultural 7
